- Description
-
Features
- Zonal control with electronic beam screen avoids spurious measurements caused by crossing laser planes and reflections - increases site safety
- Robust and dust / water protected housing to IP 66, rubberised protection and metal top
- Large working range and high accuracy
- Automatic shut-off when out of self-levelling range
- Manual slope setting of X and Y axes up to ± 5°
- 360° reception range of remote control
- VWS-function
Supplied with

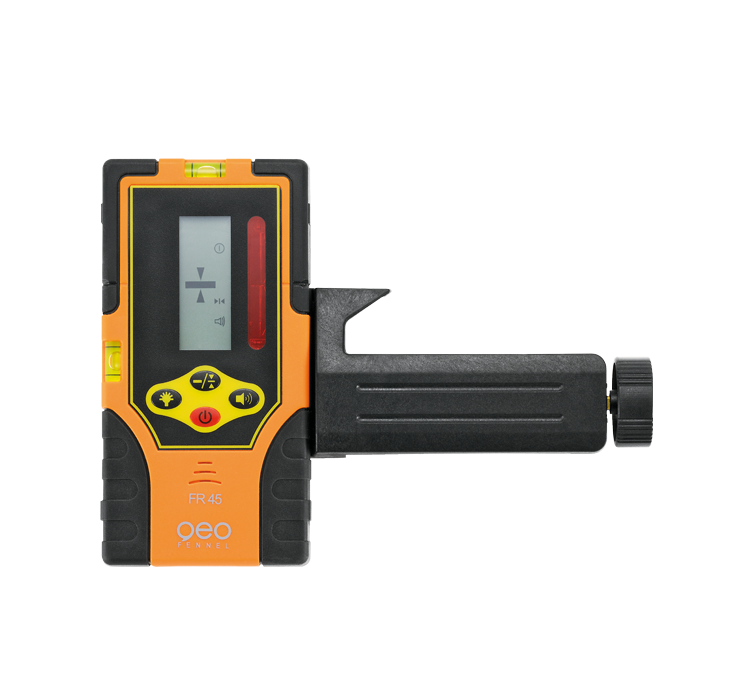

- Receiver FR 45 with clamp
- Li-Ion rechargeable battery with charger
- Battery case for alkaline batteries

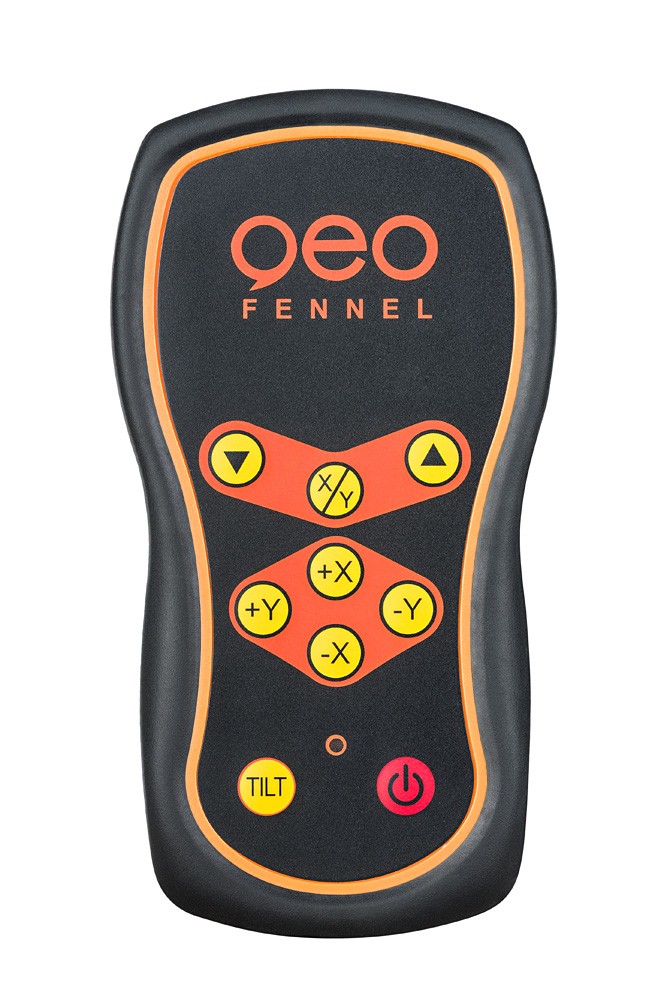

- Remote control

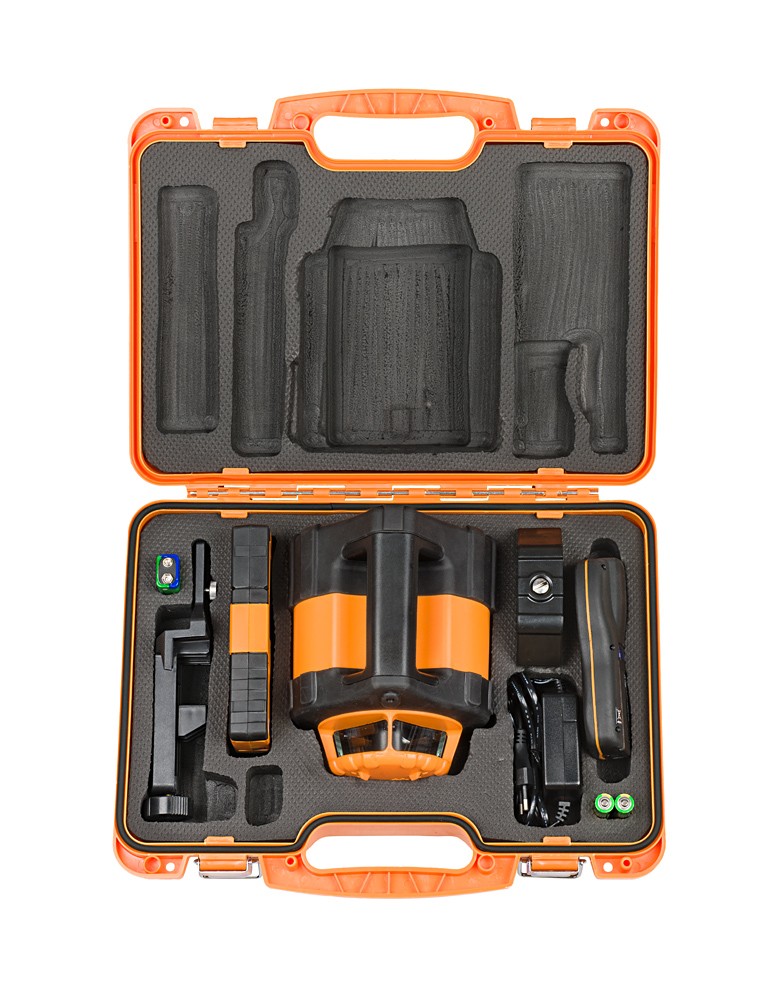

- Container
- Specifications
-
Additional Information
Specification Technical data
Manufacturers product code 211001 Self-levelling range ± 5° Accuracy ± 0.5 mm / 10 m Working range with receiver 1200 m diameter Slope setting in X and Y axis ± 5° (9%) Rotating speed 800 rpm. Power supply / Operating time Li-Ion /26 h 6 x AA Alkaline /40 h Temperature range -10 °C – +50 °C Laser diode / Laser class 635 nm / 2 Weight (instrument with batteries) 1,9 kg Dust / water protection IP 66 Technical data - FR 45 Receiver Display 2 x LCD 3-step accuracy ± 10 mm, 4 mm and ± 2 mm Signal tones 3 Signal tones can be switched off yes Automatic shut-off yes Display illumination yes Power supply 1x 9V Alkaline Battery Weight with Clamp 0.4 kg Dust/water protection IP 66 - Reviews
-
