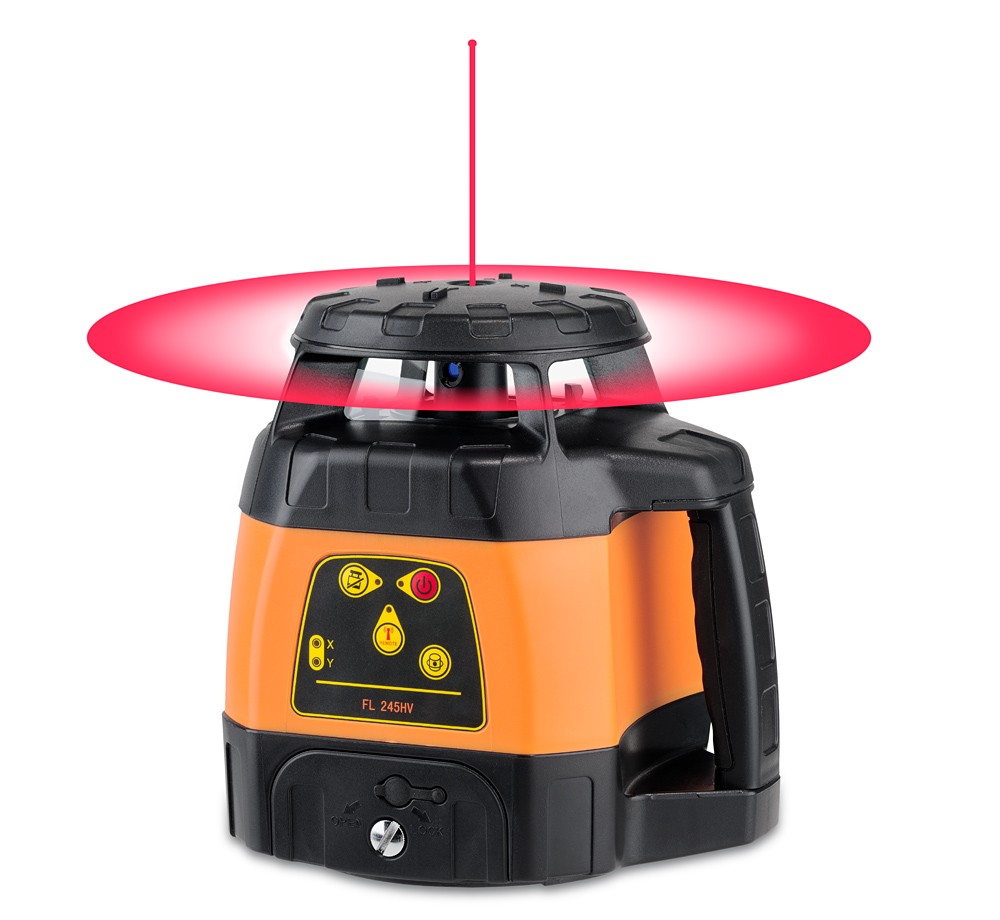

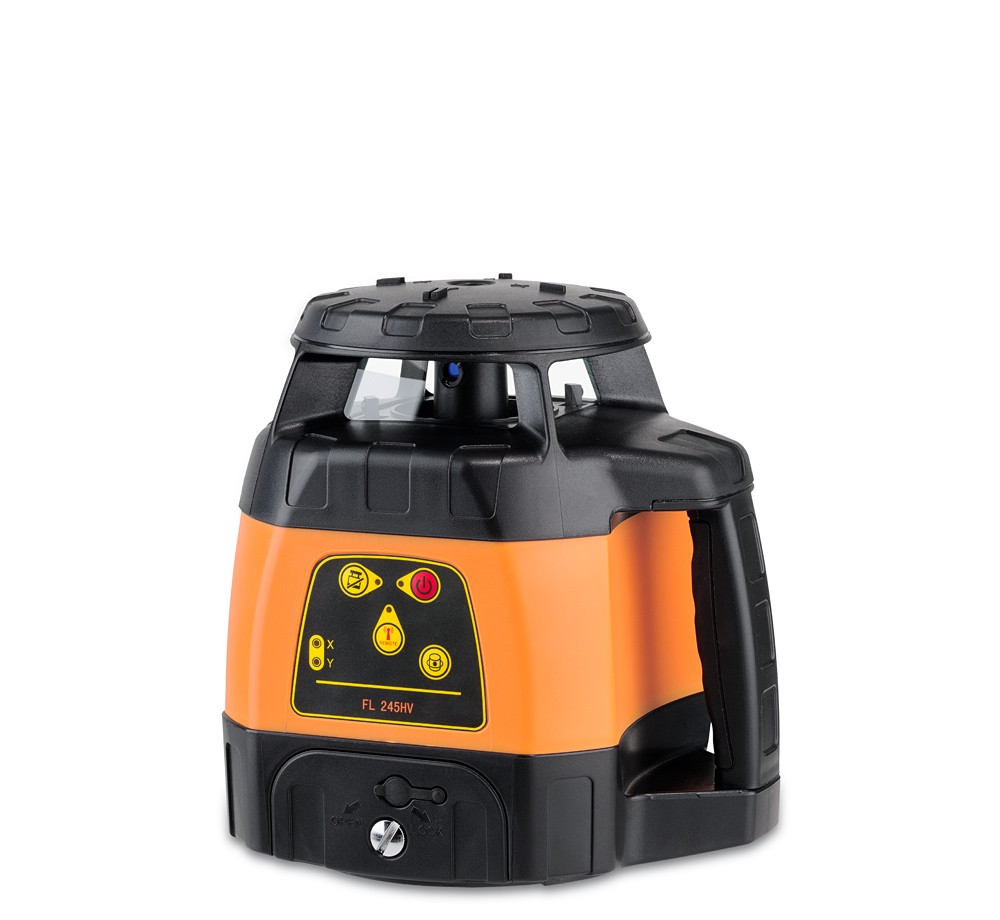

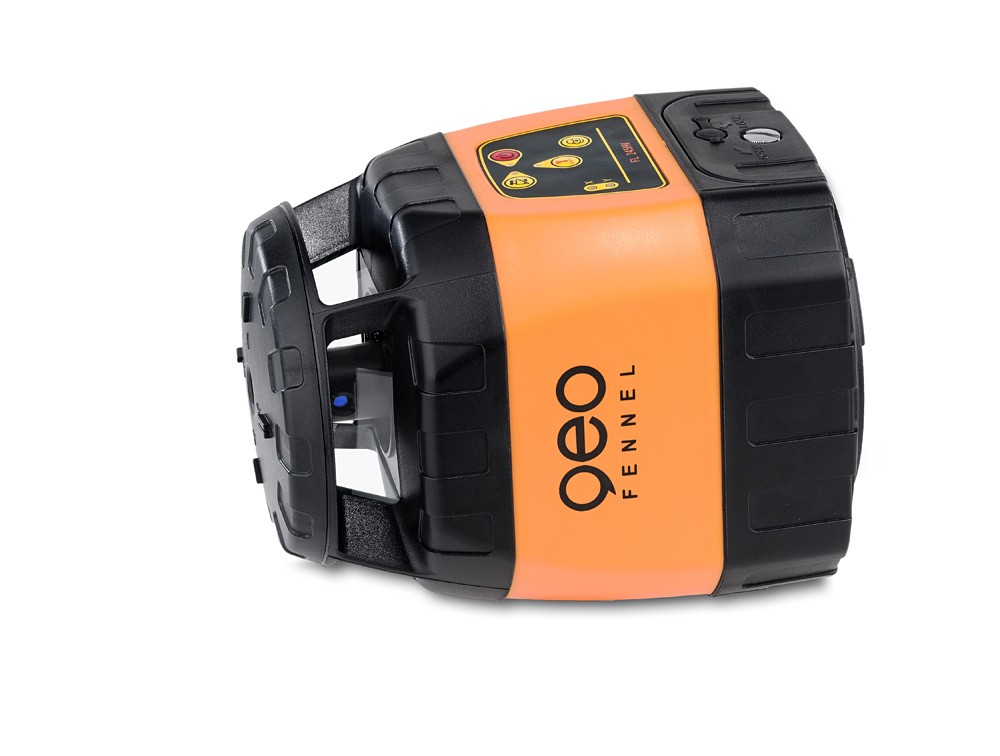

FL 245HV Rotating Laser

FL 245HV Rotating Laser

More Views

Excl. Tax: £729.00 Incl. Tax: £874.80

Availability: In stock

The new all-rounder rotating laser

Versatile and easy to use this feature packed laser is designed for the interior profesional with IP 54 dust and water protection making it suitable for outdoor use. Fully automatic self-levelling in horizontal and vertical.

Accurate, robust and temperature stable.

The new innovative low friction drive mechanism and self-levelling module reduce noise generation and increase battery life.

For the ultimate in ease-of-use the only control functions on the instrument are to power on/off the laser and remote control. All additional functons including scanning and slope setting are accessed from the remote control.

BS 5m 5 Section Staff

Yes +£30.00 (+£36.00 Incl. Tax)

FS 20 Aluminium Tripod

Yes +£35.00 (+£42.00 Incl. Tax)

TN 20 Combi Rod

Yes +£30.00 (+£36.00 Incl. Tax)

Excl. Tax: £729.00 Incl. Tax: £874.80

Qty:

-OR-

Description

Features

Visible laser beam
2 rotating speeds 300 & 800 rpm
Variable scanning and laser point mode
Dust and water protection IP 54
Manual slope setting up to ± 5° (± 9%) in X and Y axis
Permanent 90° plumb beam
Automatic TILT alarm function
Remote control function (on/off)
Auto shut-off when out of level

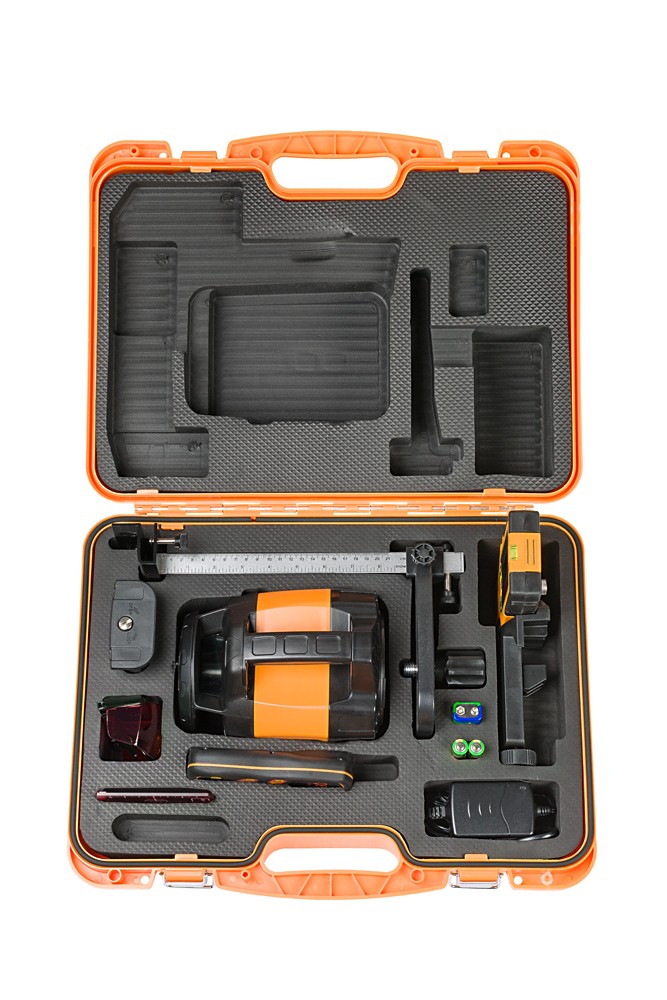

Supplied with

Receiver FR 45 with clamp

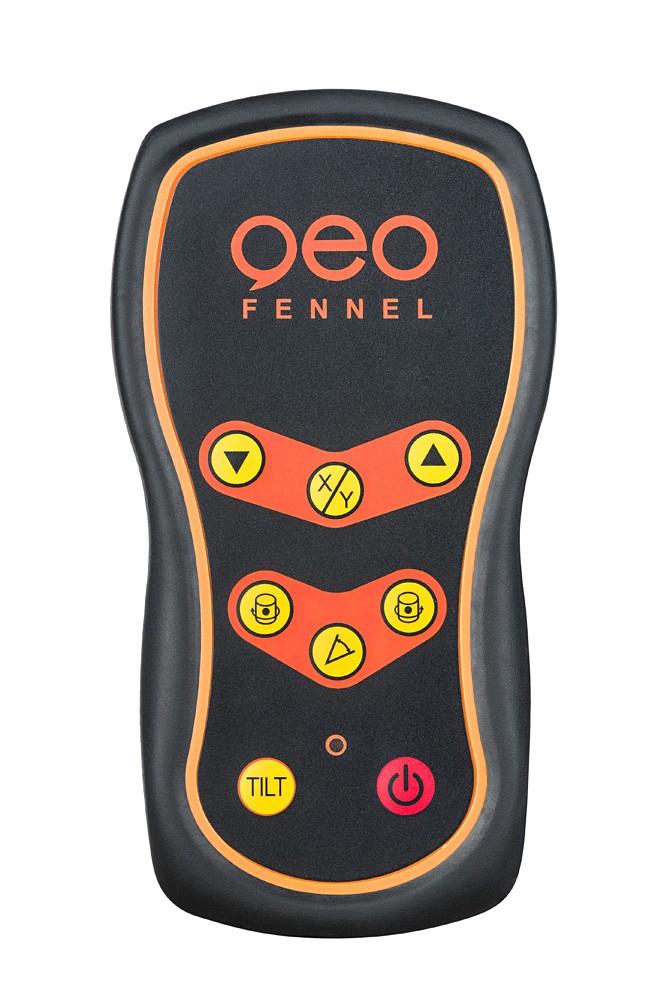

Remote control
Rechargeable battery (NiMH)
Intelligent charger
Battery case for alkaline batteries
Adjustable wall and ceiling mount
Laser glasses
Magnetic target
Container

Specifications

Additional Information

Specification

Technical data

Manufacturers product code	244001
Self-levelling range	± 5°
Accuracy horizontal	± 1 mm / 10 m
Accuracy vertical	± 1.5 mm / 10 m
Working range with receiver Ø	700 m
Scanning w/o receiver (radius)	60 m*
Rotating w/o receiver Ø	60 m*
Scanning modes	2 stage
Slope setting in X and Y axis	± 5° (± 9 %)
Rotating speed rpm	300, 800
Operating time using NiMH battery pack	26 h
Operating time using Alkaline batteries	40 h
Temperature range	-20 °C to 50 °C
Laser diode / Laser class	3R
Dust / water protection	IP54
Weight (instrument with batteries)	1,95 kg

Technical data - FR 45 Receiver

Display	2 x LCD
3-step accuracy	± 10 mm, 4 mm and ± 2 mm
Signal tones	3
Signal tones can be switched off	yes
Automatic shut-off	yes
Display illumination	yes
Power supply	1x 9V Alkaline Battery
Weight with Clamp	0.4 kg
Dust/water protection	IP 66
