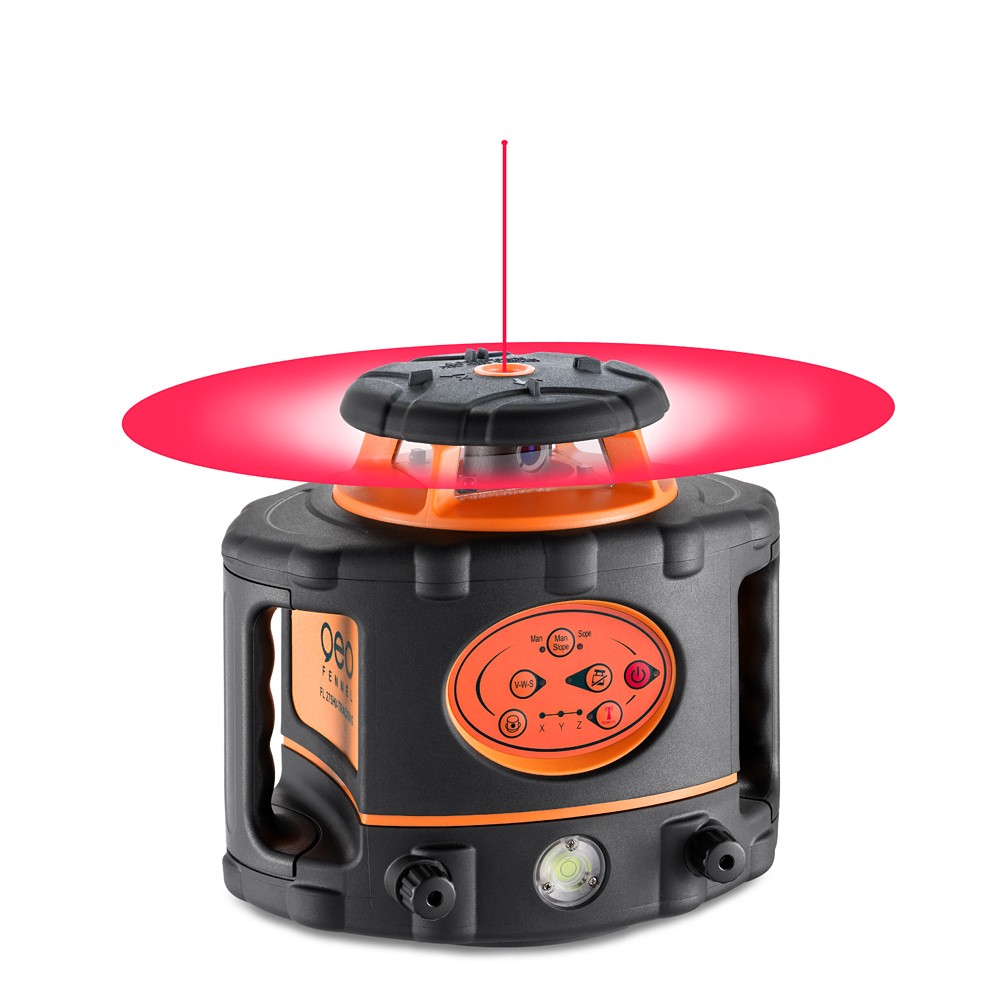

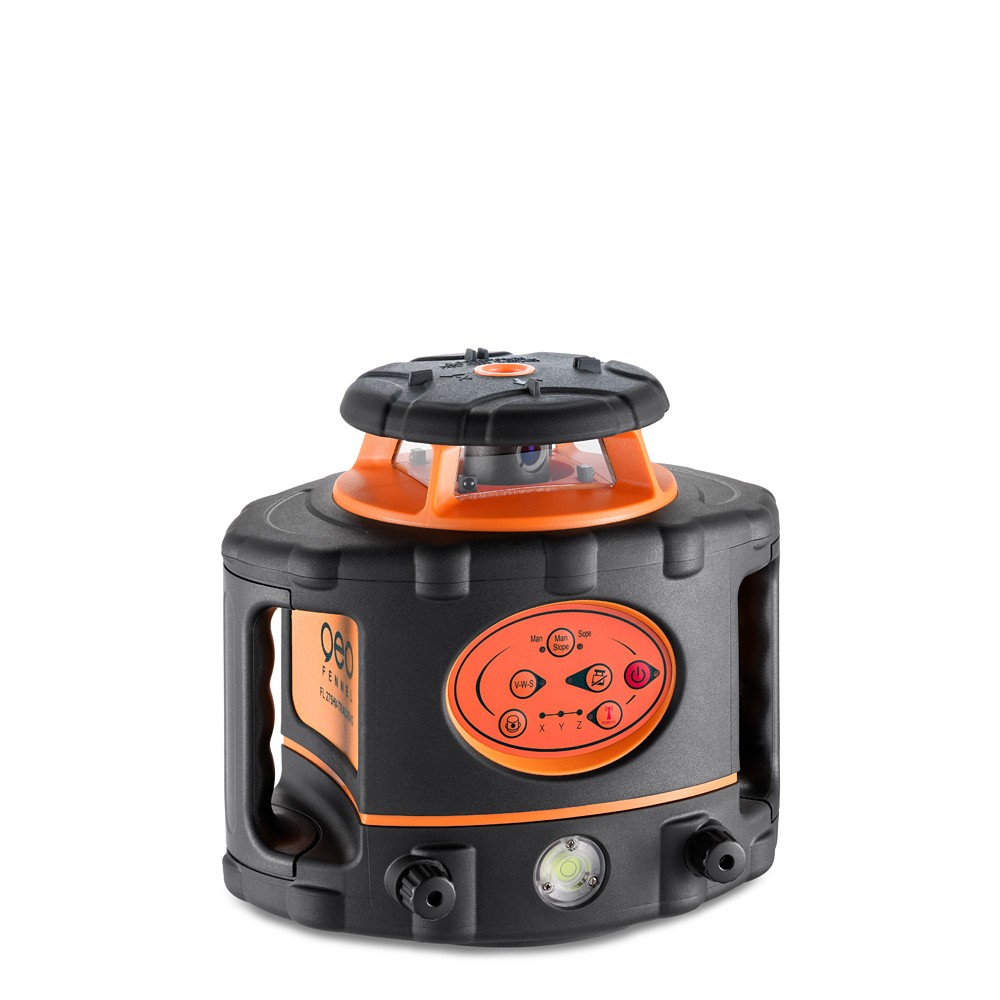

FL 275HV-TRACKING

• Tracking functions:
  • The laser plane is automatically centred to the receiver “on-grade”

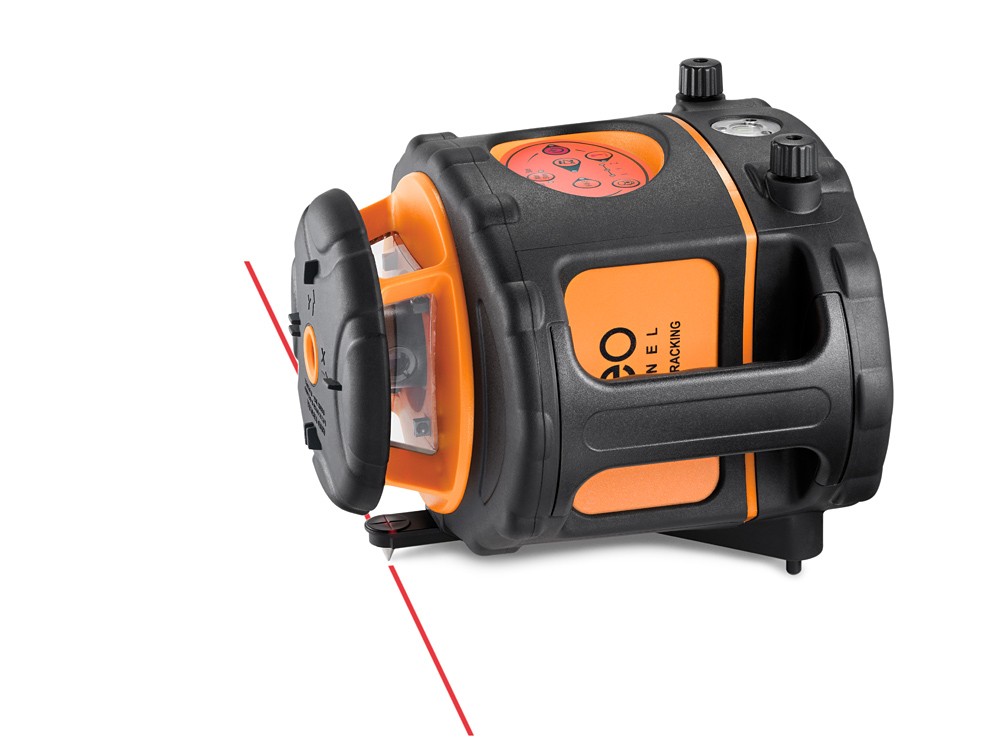

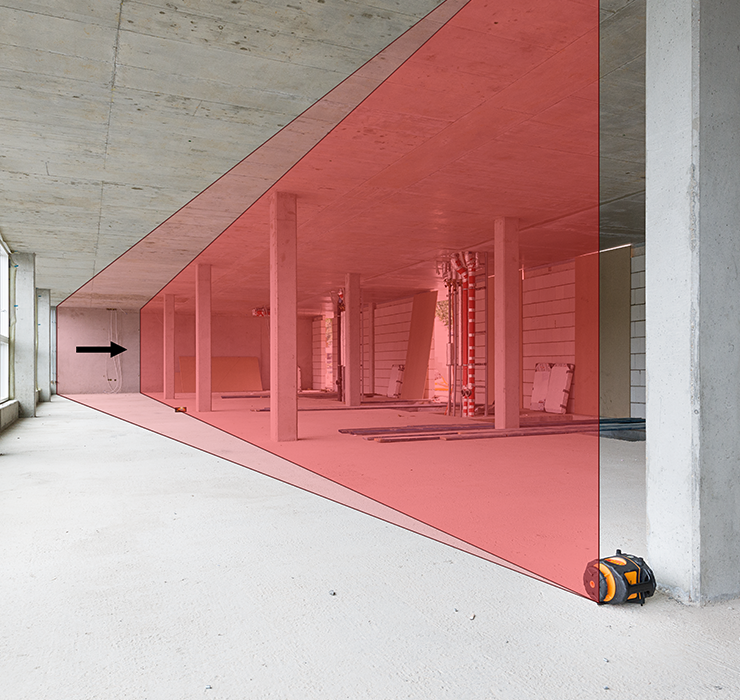

  • Vertical: in both X and Y axis
  • Horizontal: one axis X or Y, other axis horizontal self-levelled

• Fully automatic horizontal and vertical self-levelling. Compact ergonomic design and intuitive operation
• High accuracy of ± 0.5 mm / 10 m
• Enhanced scanning functions with small increments and a large range of 180°
•  Permanent 90° beam for setting right angles
• Automatic TILT function
• VWS function (Vibration-Wind-Security) – rotation will not be stopped due to light ground and wind vibrations
• Slope functions:
  • Manual slope setting in X and Y axis
  • Auto self level of opposite axis

• Li-Ion battery technology
• On / Off remote control function: to avoid interference with other electronic devices
• Integrated floor mount with centring mark

Features

• Visible laser beam
• Tracking function for automatic axis alignment horizontal and vertical
• Dual and single slope setting (manual) up to ± 5° (± 9 %) in X and Y axis
• Monitored grade (also in tracking mode)
• 2 rotating speeds
• Variable scanning and laser point mode
• Permanent 90° beam to zenith
• Automatic TILT function
• VWS function combined with TILT function
• Remote control function On/Off
• Supplied with Li-Ion rechargeable battery pack and intelligent charger
• Can also be used with alkaline batteries

Supplied with

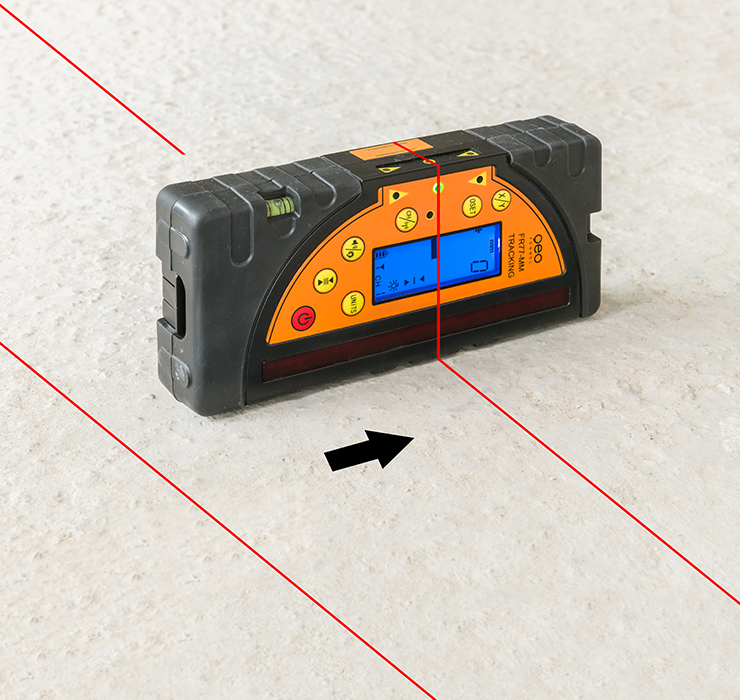

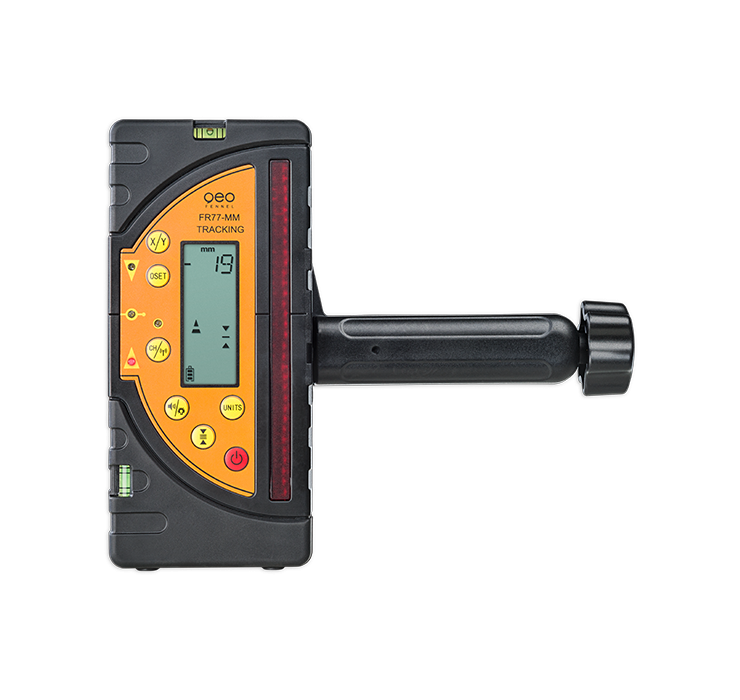

• Receiver FR 77-MM Tracking with clamp for levelling staff.

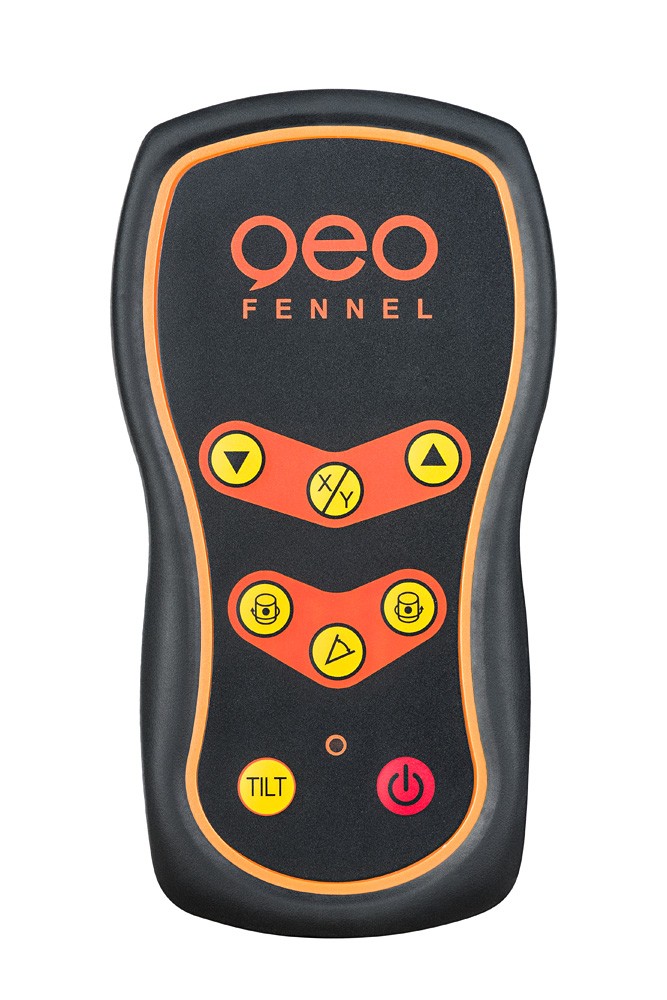

• Remote control
• Rechargeable battery pack
• Intelligent battery charger
• Battery case for alkaline batteries
• Integrated floor mount
• Magnetic target
• Laser intensive glasses

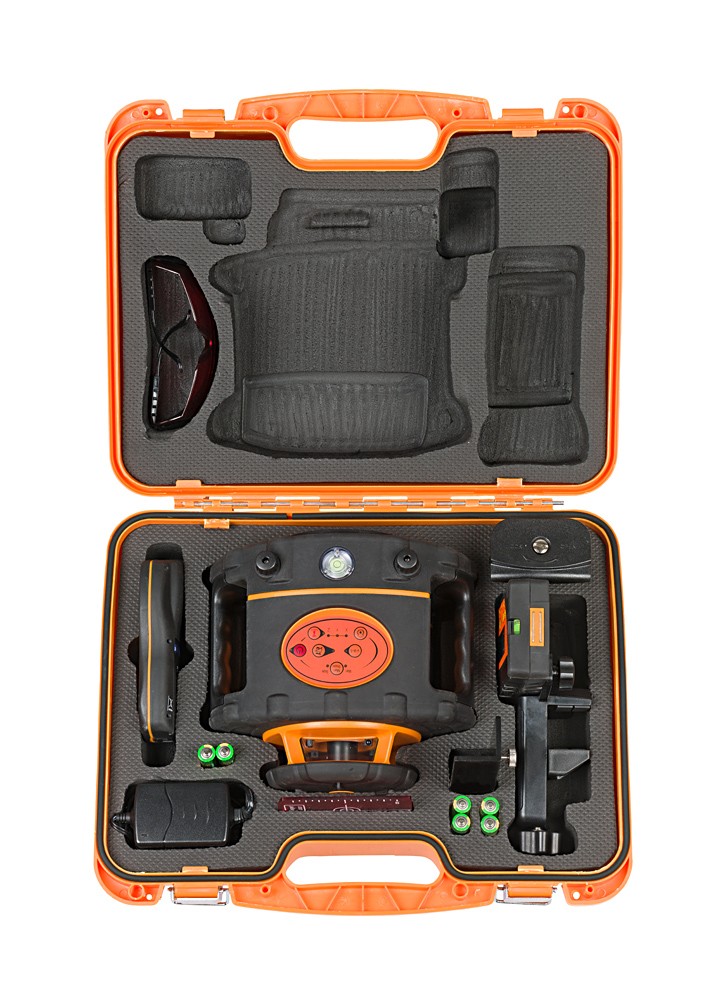

• Carrying case
