- Description
-
Features
- Dual Grade Laser
- Horizontal
- Digital grade adjustment
- Monitored grade
- Automatic TILT function
- VWS function combined with TILT function
- Illuminated display
- Zonal control (electronic beam screen)

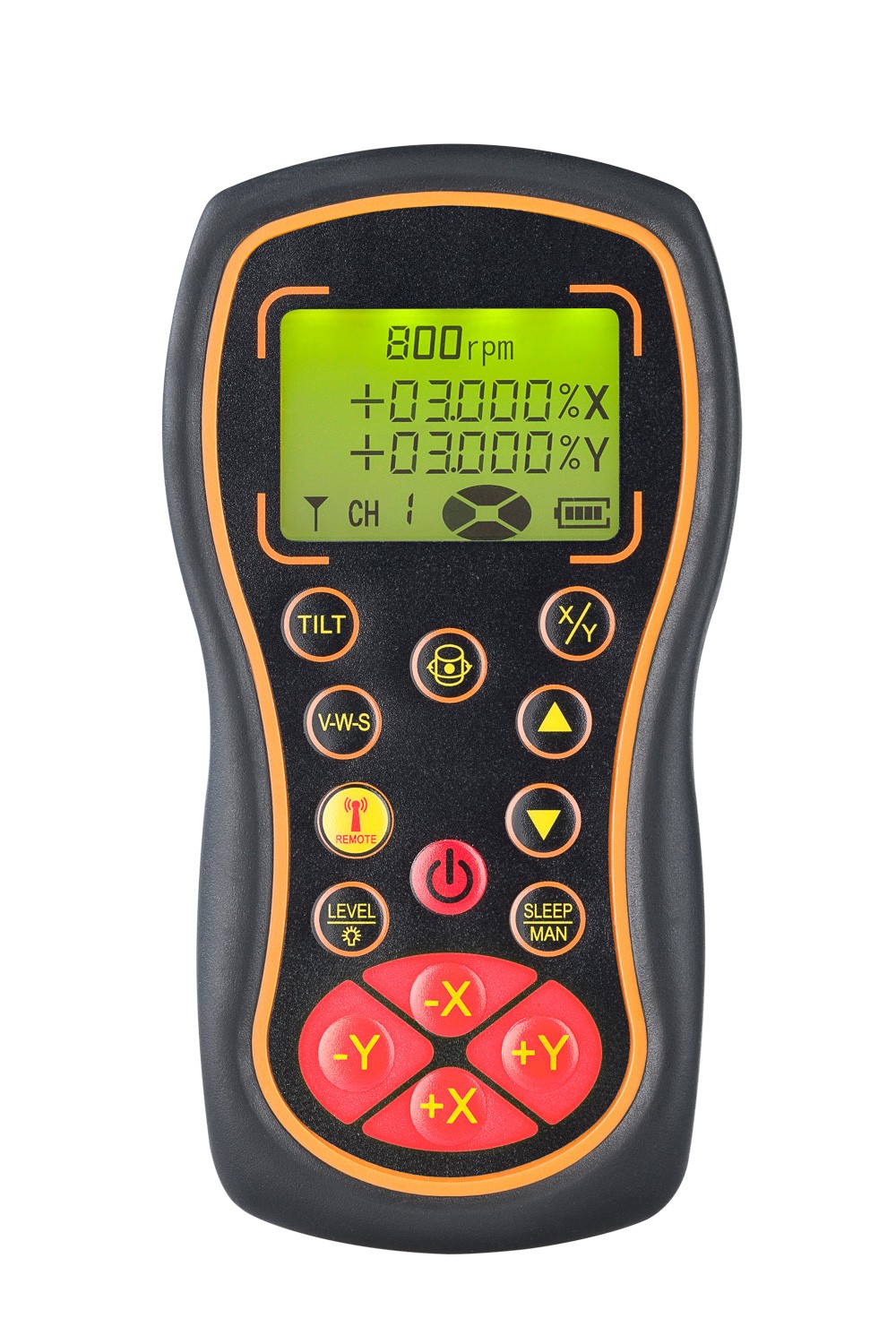

- 2-Way RF remote control
- Remote control with illuminated display
- Li-Ion battery technology
- International battery charger plus adapter for in-car charging

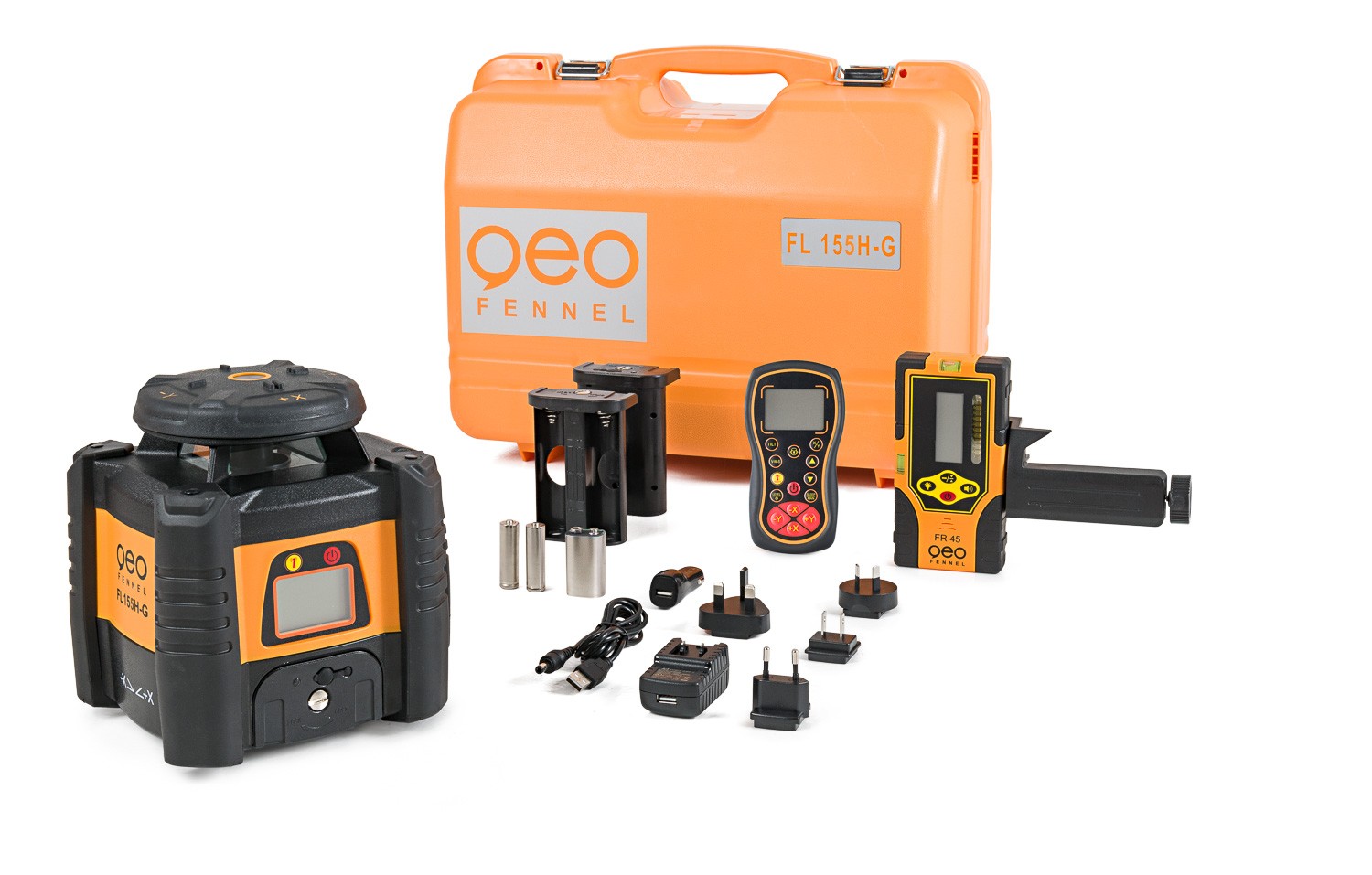

Supplied with
- Receiver FR 45 with clamp for levelling staff
- 2-Way RF remote control
- Li-Ion battery pack
- International battery charger
- Battery compartment for alkaline batteries
- Carrying case
Downloads
- Specifications
-
Additional Information
Specification Technical data
Manufacturers product code 213145 Self-levelling range ± 6° Accuracy ± 0.5 mm / 10 m Working range with FR 45 Receiver
Working range with FR 77-MM (optional)1200 m Ø
600 m ØLaser class 2 Horizontal slope setting X-Axis
Horizontal slope setting Y-Axis±10 %
±10 %X and Y-Axis Σ ± 14 % Rotating speed 600 rpm Operating time 30 h Power supply Li-Ion
Alkaline batteries (optional)RF Remote control range 80 m Temperature range -20 °C to 50 °C Dust / water protection IP 65 Weight (instrument with batteries ) 2.2 kg Technical data - FR 45 Receiver Display 2 x LCD 3-step accuracy ± 10 mm, 4 mm and ± 2 mm Signal tones 3 Signal tones can be switched off yes Automatic shut-off yes Display illumination yes Power supply 1x 9V Alkaline Battery Weight with Clamp 0.4 kg Dust/water protection IP 66 - Reviews
-
