- Description
-
Features
- Dual Axis Laser
- Horizontal and vertical
- Digital grade adjustment
- Monitored grade (also in tracking mode)
- TILT function
- VWS function
- Tracking function horizontal and vertical
- Zonal control
- 90° beam to zenith
- Illuminated display
- 2-way RF remote control
- Manual function
- Operation with rechargeable Li-Ion or alkaline batteries
- Dust / water protection IP 66
Supplied with

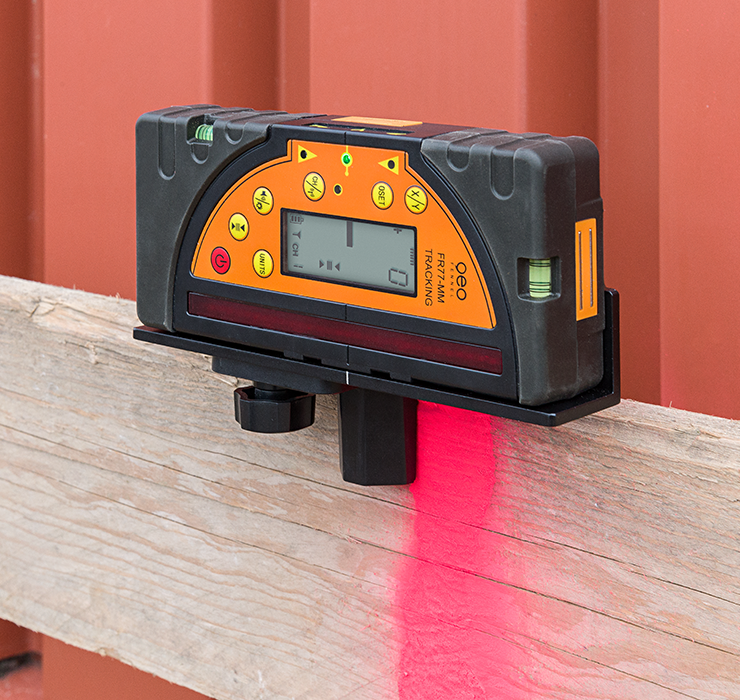

- Receiver FR 77-MM Tracking with clamps for levelling staff and scaffold
- 2-way RF remote control
- Li-Ion batteries and charger
- Vertical mount
- Telescopic viewfinder
- 360° horizontal fine adjustment bracket
- Container
- Specifications
-
Additional Information
Specification Technical data
Manufaturers product code 231700 Self-levelling range ± 8° Accuracy horizontal ± 0.5 mm / 10 m Accuracy vertical ± 1 mm / 10 m Working range with receiver
FR 77-MM Tracking Ø800 m* Laser diode / Laser class 2 Horizontal slope setting X-axis ± 10.000 % Y-axis ± 10.000 % X and Y axis Σ ± 14 % Vertical slope setting X axis ± 10.000 % Y(Z) axis horizontal self-levelled Working range tracking function 140 m* Rotating speed 300 / 600 / 1100 rpm Operating time 40 h Power supply intelligent / Li-Ion Alkaline batteries (optional) Remote control range 100 m Remote control channels 8 Temperature range -10 °C – +50 °C Dust / water protection IP 66 Weight (instrument only) 3.85 kg * depending on environmental conditions - Reviews
-
