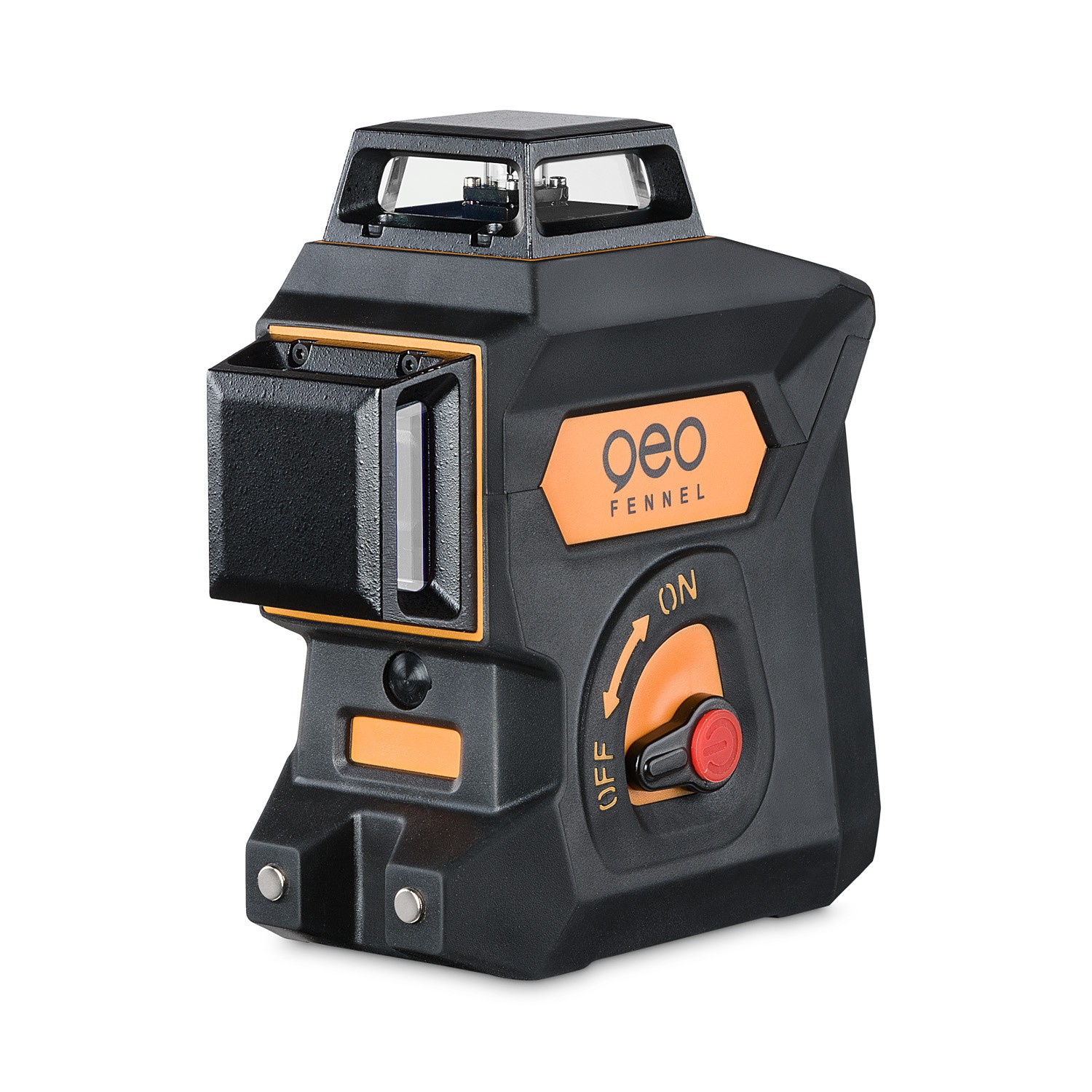

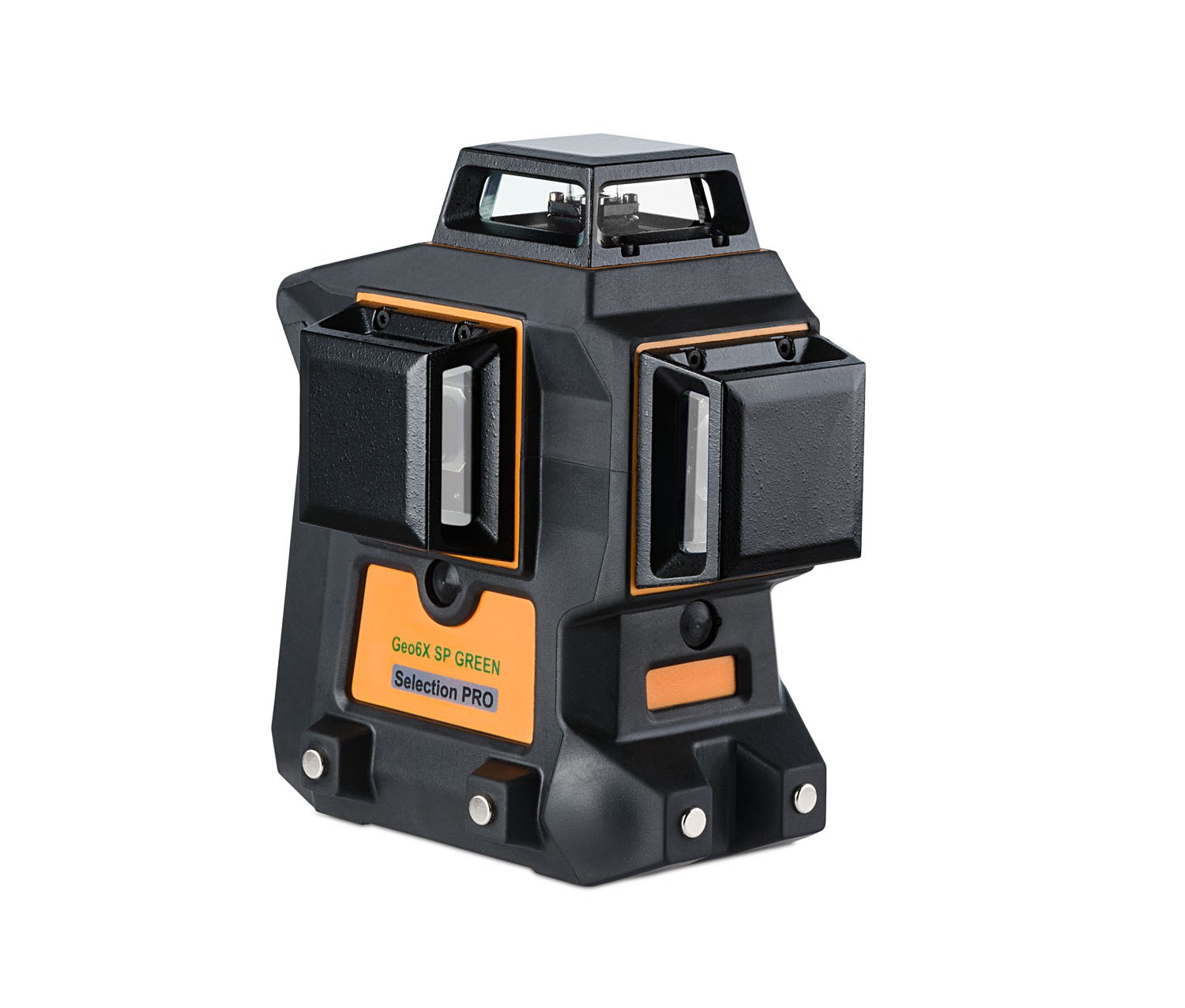

Geo6X SP Green Beam Laser Kit

Geo6X SP Green Beam Laser Kit
Excl. Tax: £419.00 Incl. Tax: £502.80

Availability: In stock

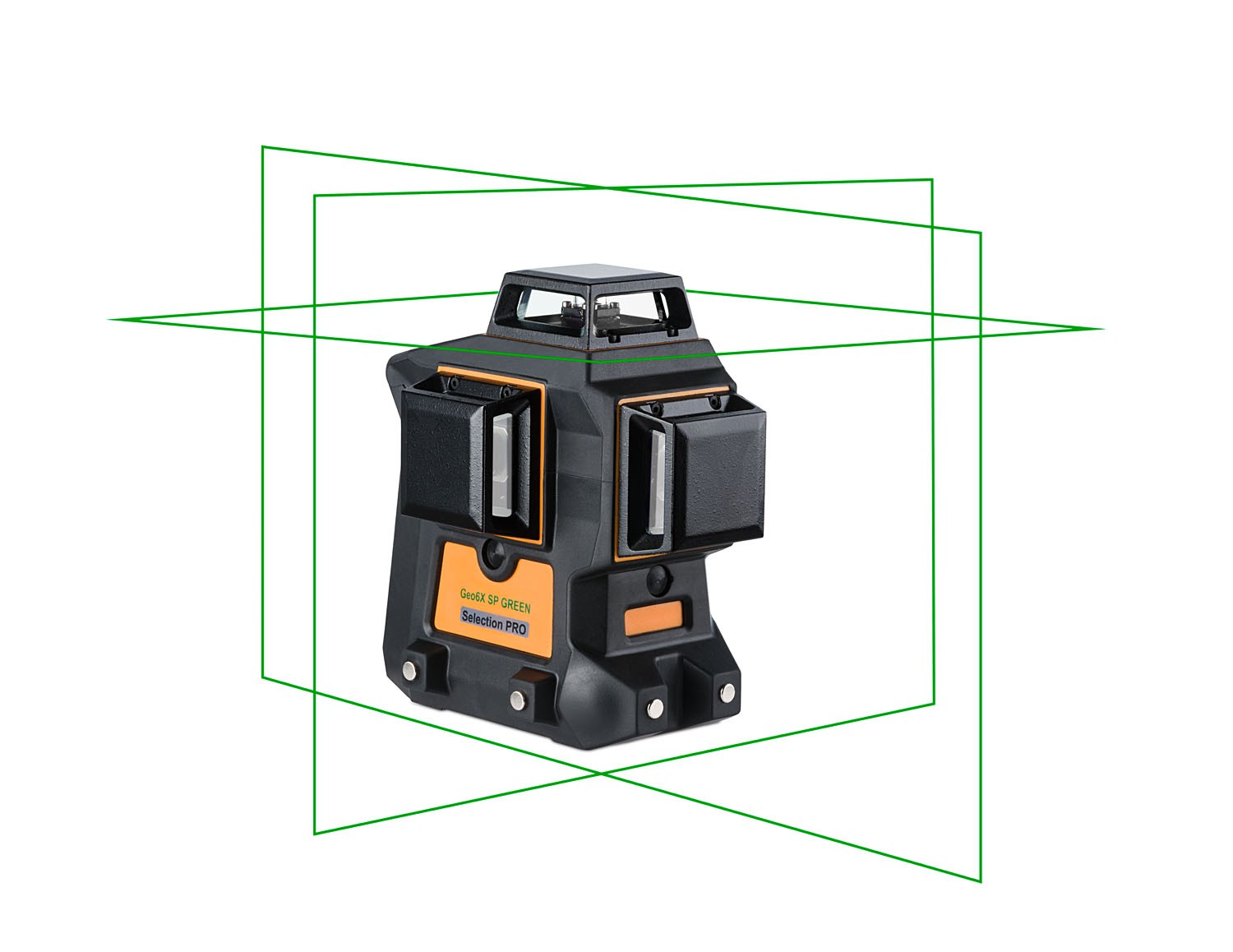

3x 360° bright & clear green beam laser lines

The Geo6X SP self-levelling multi line laser uses high efficiency green beam diodes to generate clean and precise laser lines.

Green beam line lasers are up to four times more visible to the human eye compared to Red beam line lasers.

As all green beam lasers use more battery power than a red beam the Geo6X SP Green offers the best cost-effective solution using a re-chargeable Li-ion battery pack with the option to use Alkaline batteries if required.

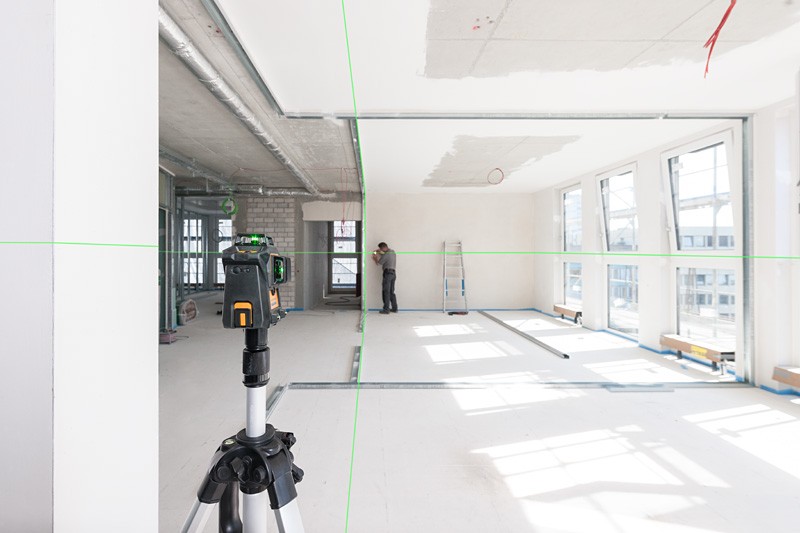

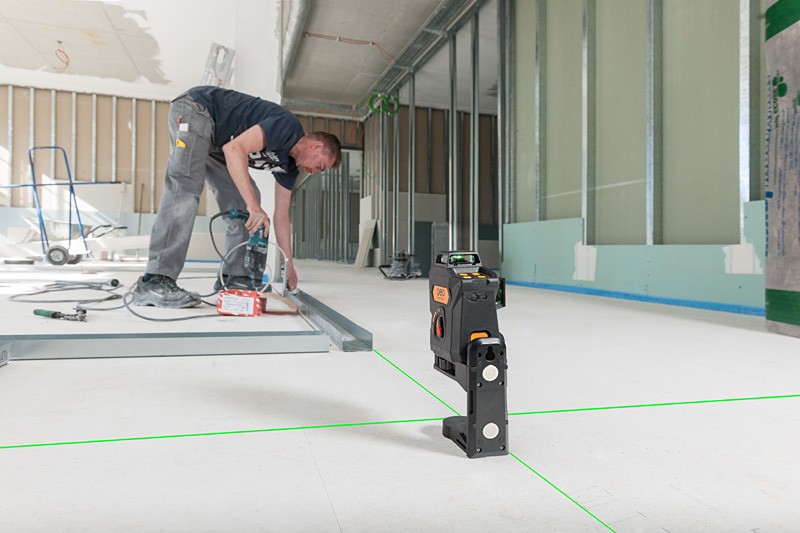

This new generation of 3D 360° green beam line laser is the perfect all round site tool.

  • Utilising the latest cone laser technology to ensure the best posssible reliability and working accuracy

  • Rugged shockproof design with a rubberised housing

  • Dust & Water protection to IP 54

  • Using Li-Ion battery technology reduces your cost of ownership

  • Pulse function for use with receiver (optional)



  • Fully automatic self-levelling

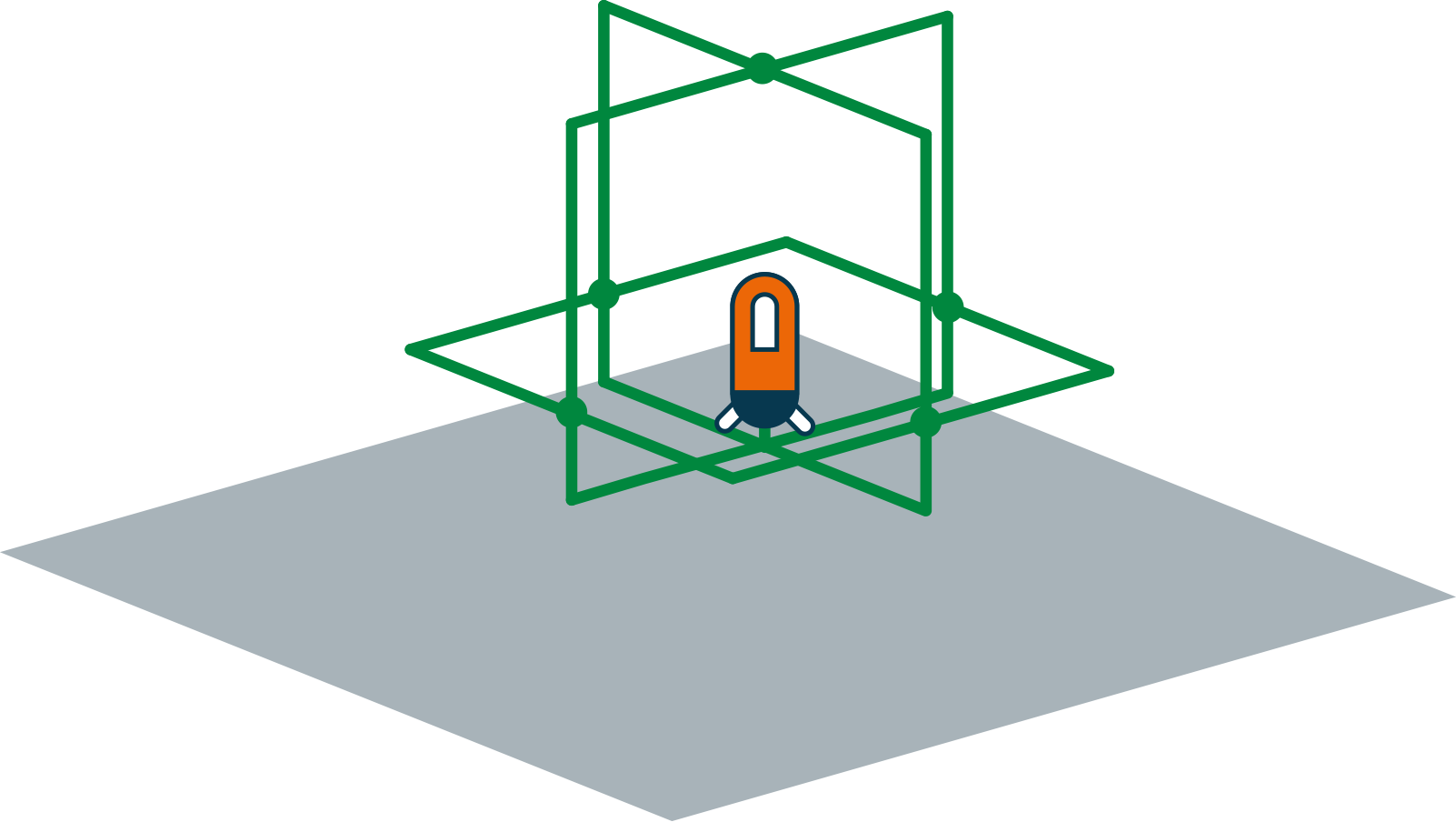

  • 3x 360° Lines perpendicular to each other
  • Generates 6x Laser crosses
  • Plumbing function

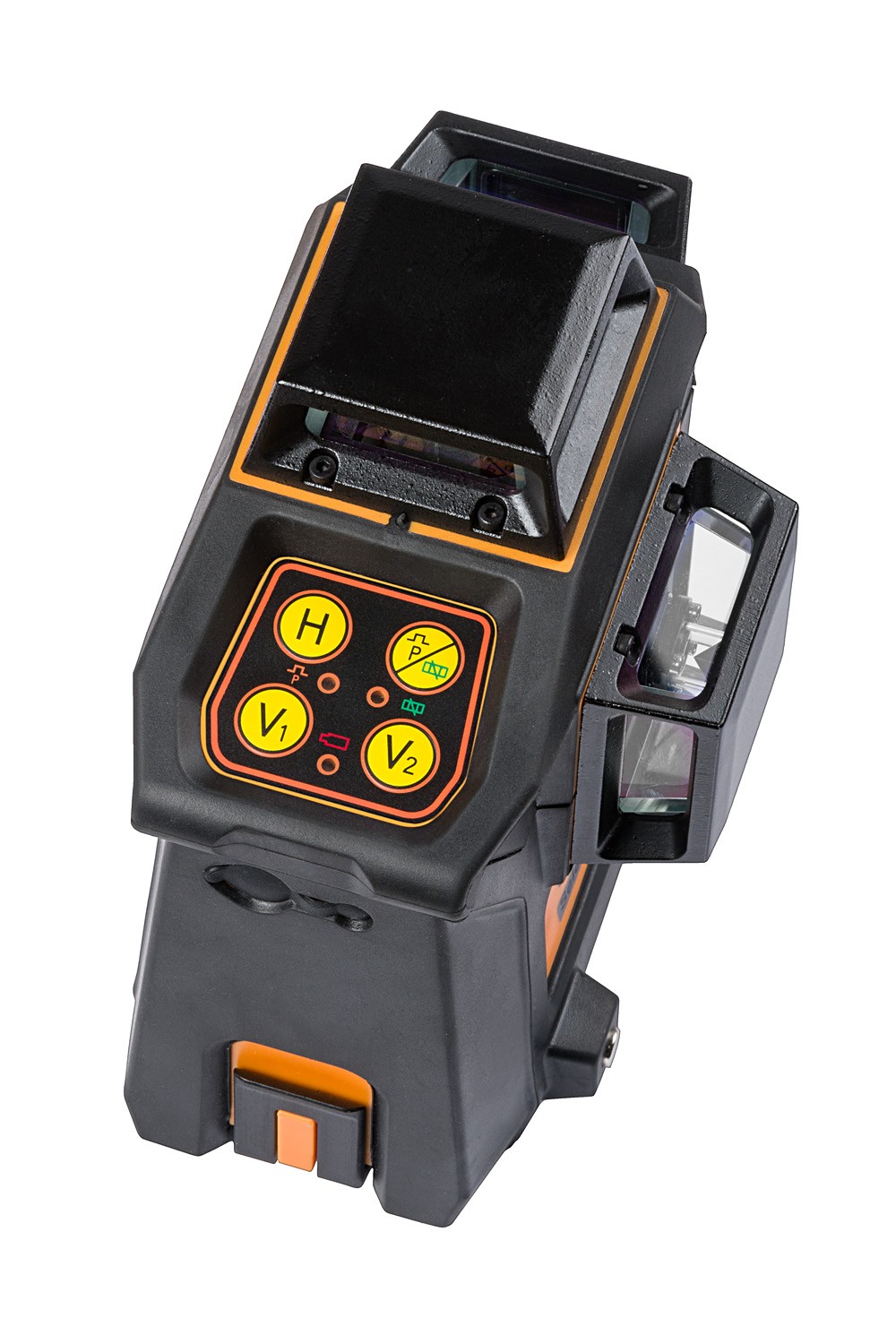

  • Laser lines switchable separately
  • Laser plane distance to wall/ceiling 12mm min.
  • Self-levelling function can be locked for manual use (inclined applications)

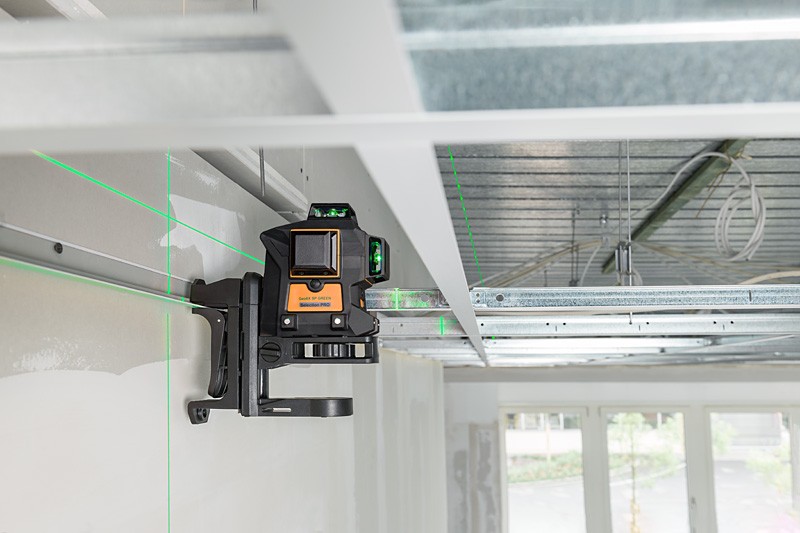

  • Magnets at front & side for connection to drywall track
  • Audible and visible alarm when out of level
  • 1/4" & 5/8" thread on instrument base for connection to tripods or adapters
  • Transport lock integrated into On/Off switch
  • Can be used with a receiver (optional)

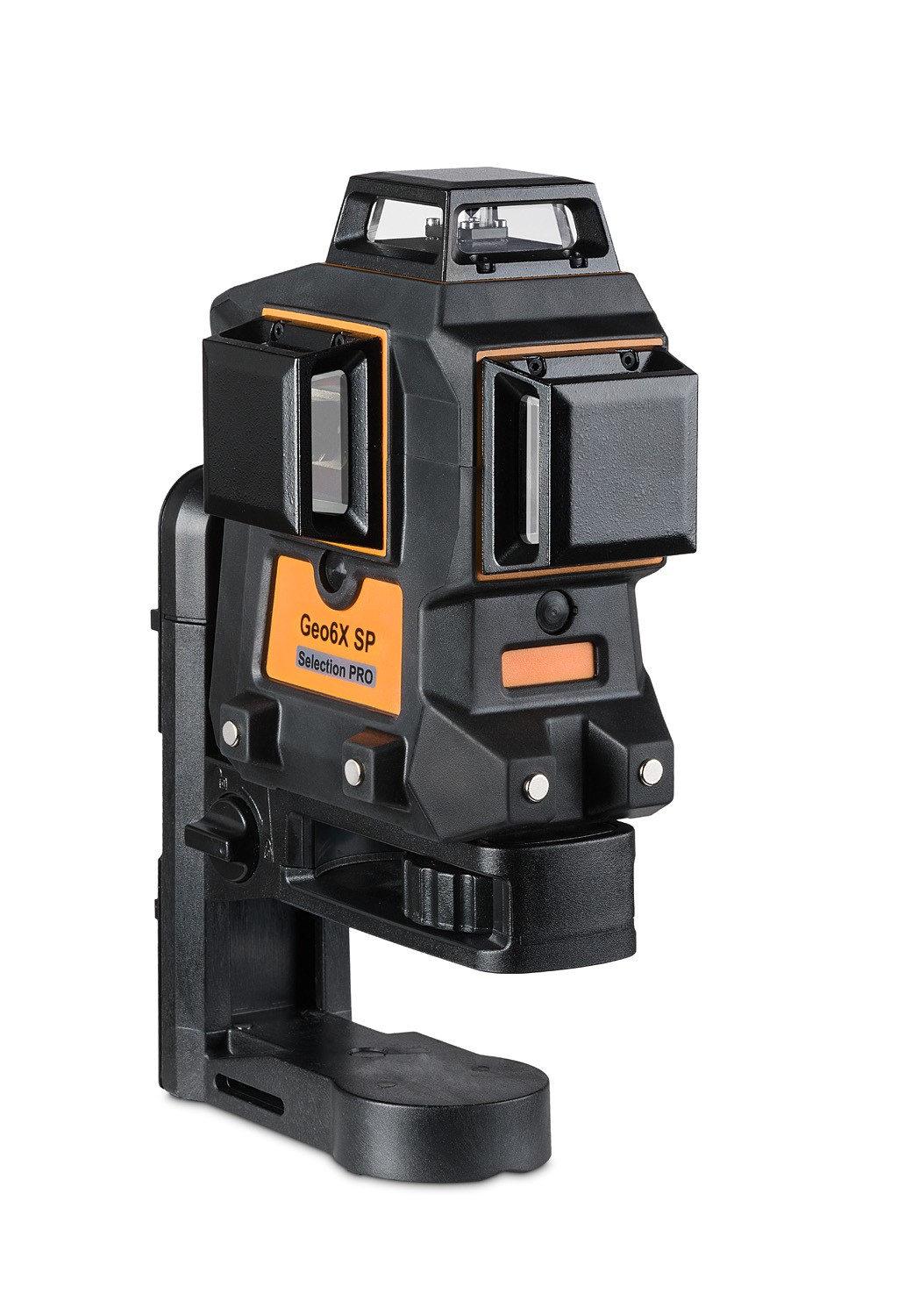

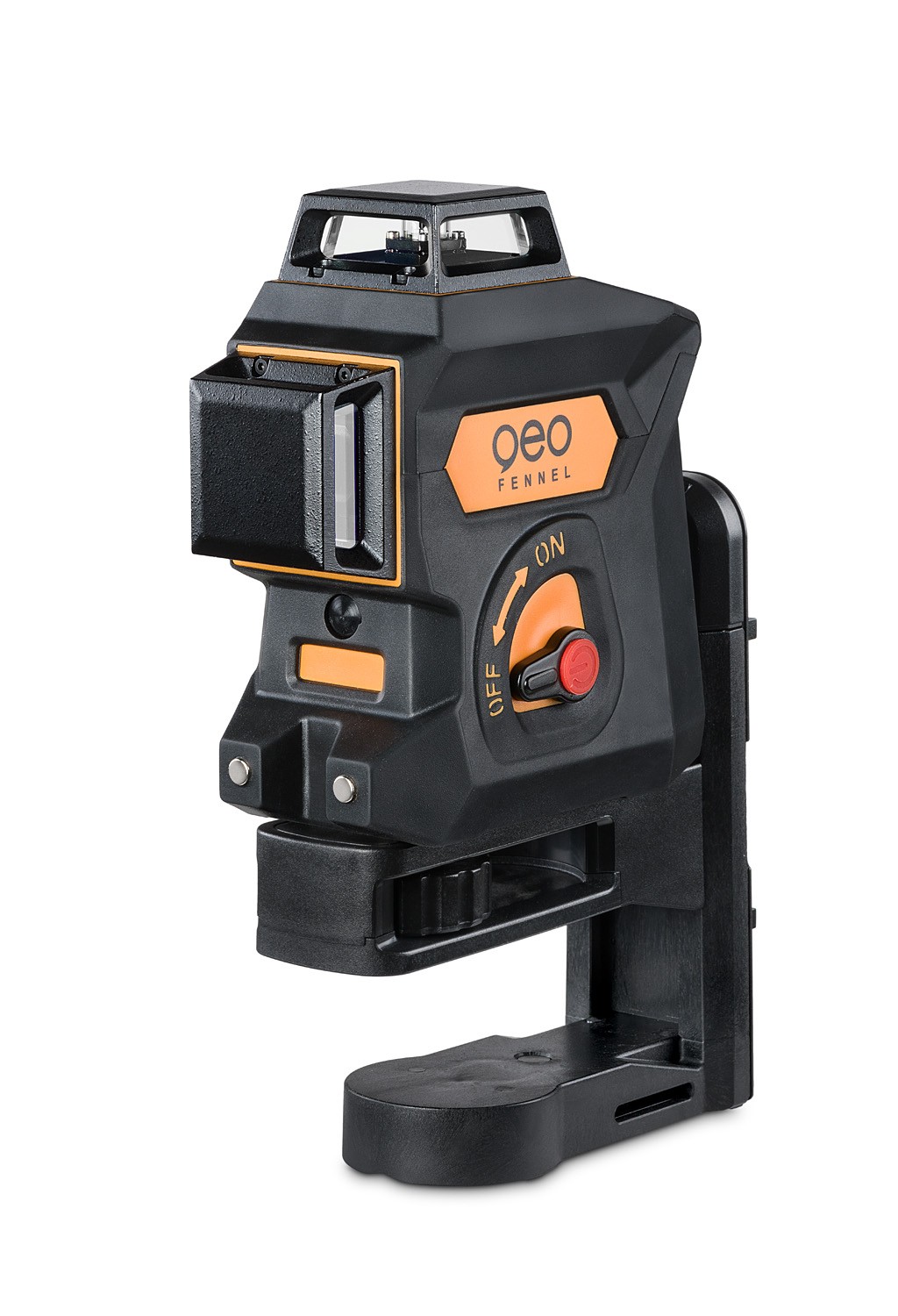

  • Multi-functional mount
  • Magnets on back
  • Strap attachment
  • Height adjustment
  • 5/8" thread

Supplied with

  • Multi-functional Mount
  • Li-ion batteries
  • Battery Charger
  • USB Cable
  • Alkaline battery box
  • Magnetic target
  • Hard Carrying Case

Additional Information


Technical data

Manufacturers product code 534500
Self-levelling range ± 3°
Accuracy ± 2 mm / 10 m
Working range*  40 m (radius)
Working range* with receiver (optional) 70 m (radius)
Laser diode / class Green / 2
Operating time - 1x 360° Line 14 h/ Li-ion
Operating time - 2x 360° Lines 7 h/ Li-ion
Operating time - 3x 360° Lines 5 h/ Li-ion

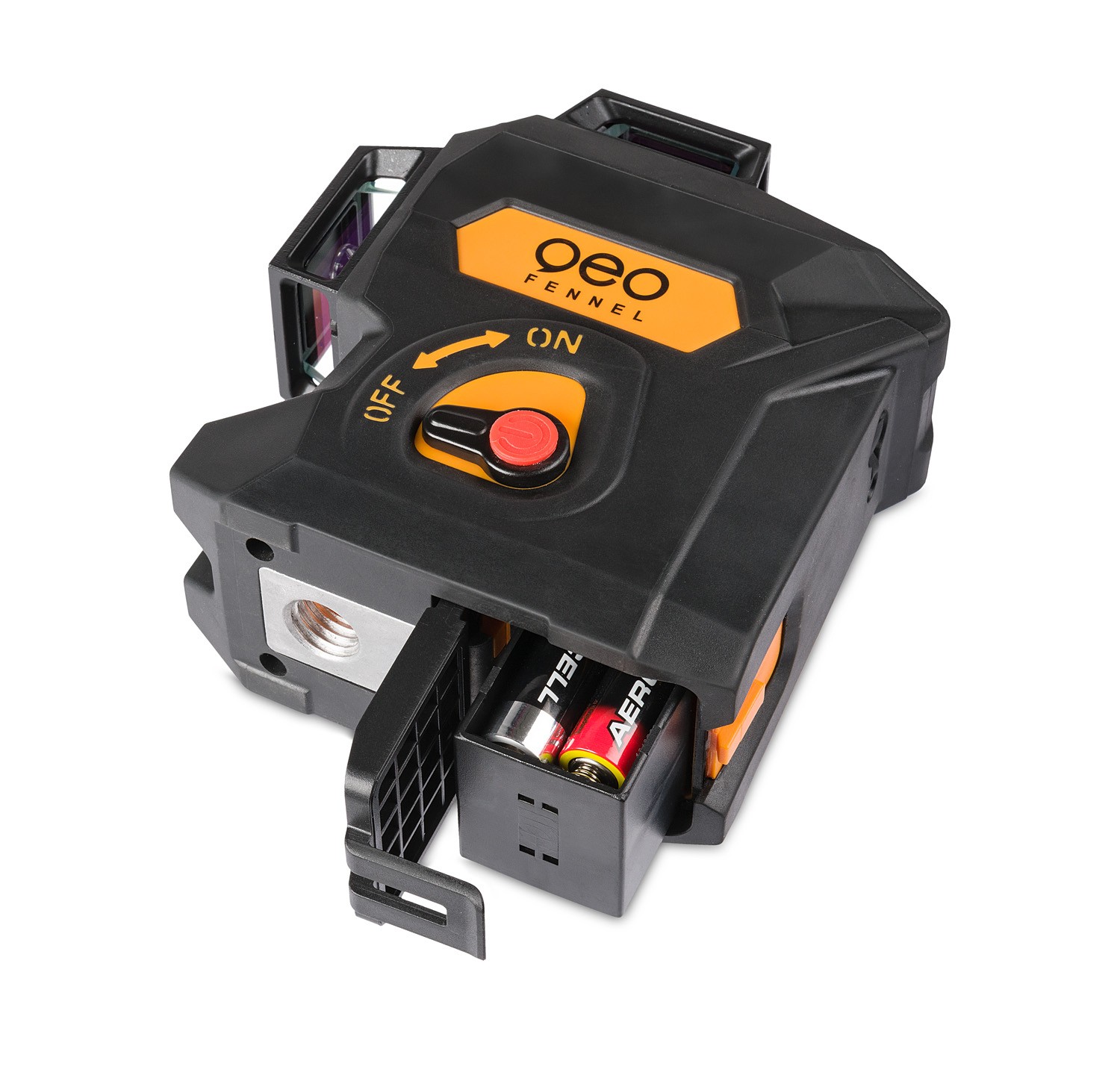

Power supply Li-Ion or Alkaline
Alkaline batteries (optional)
Charger can be used as power supply Yes
Dust/waterprotection IP 54
Temperature range -10°C to 45°C
Dimensions 14 x 13 x 8 cm
Weight (instrument with battery) 0.8 kg
*depending on room illumination
