- Description
-

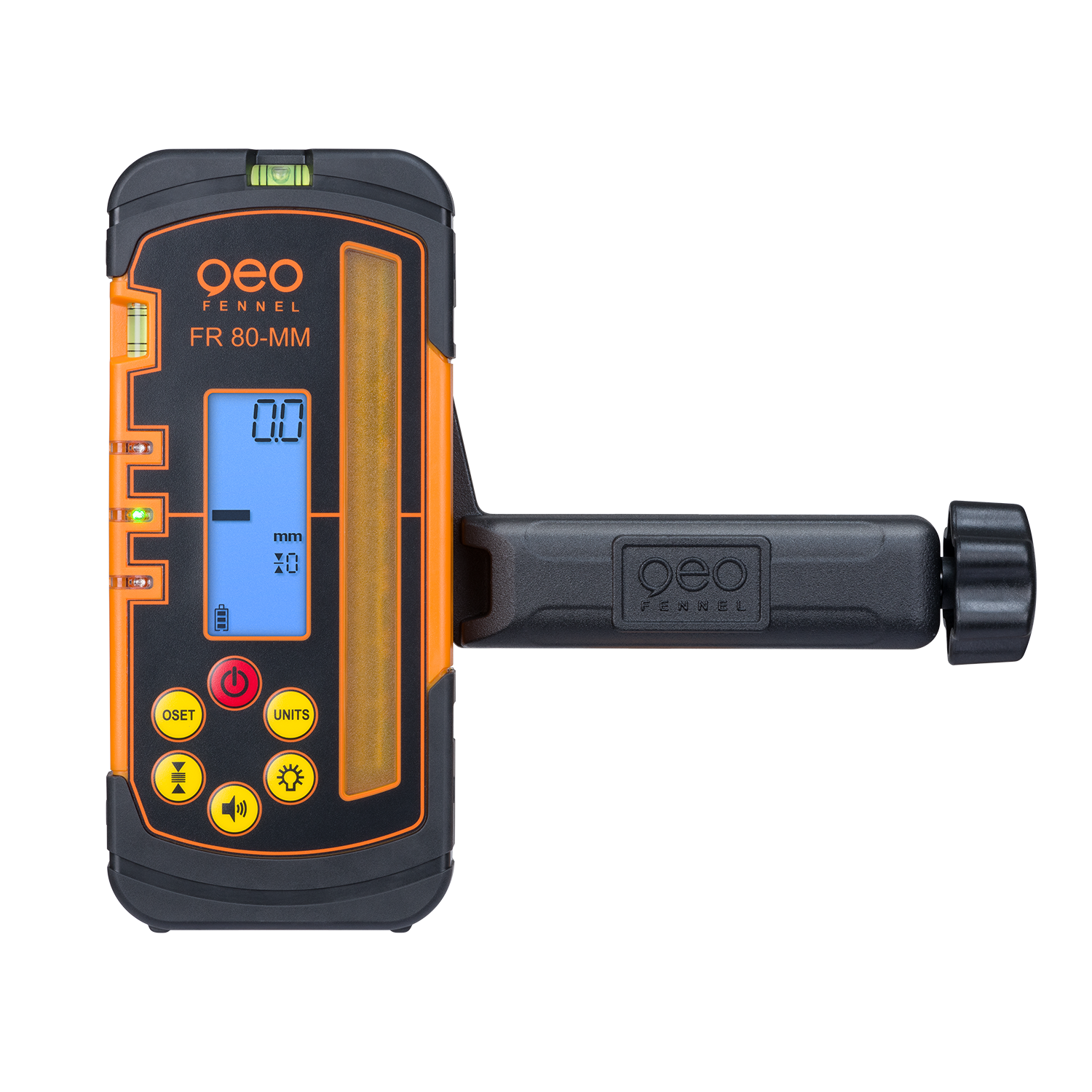

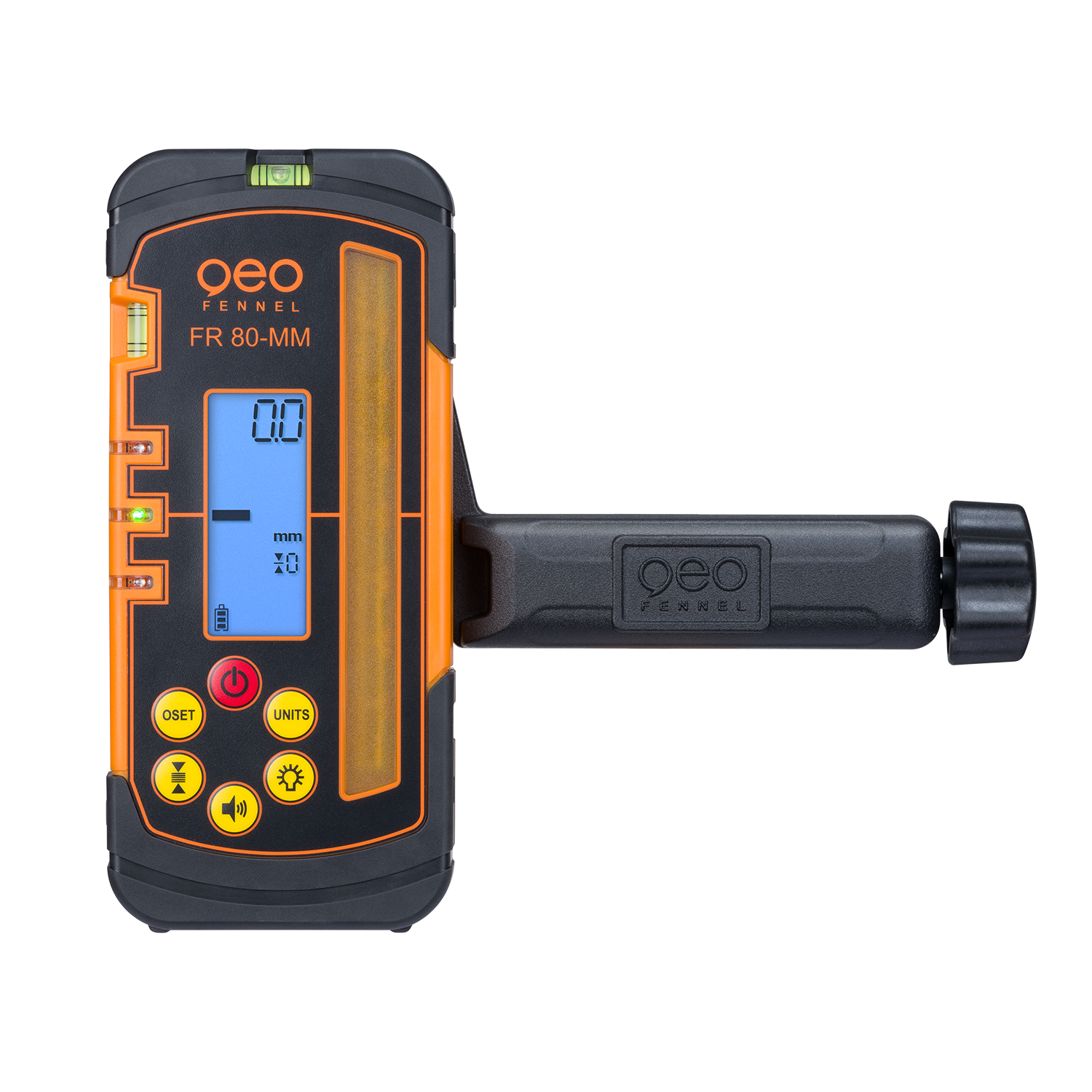

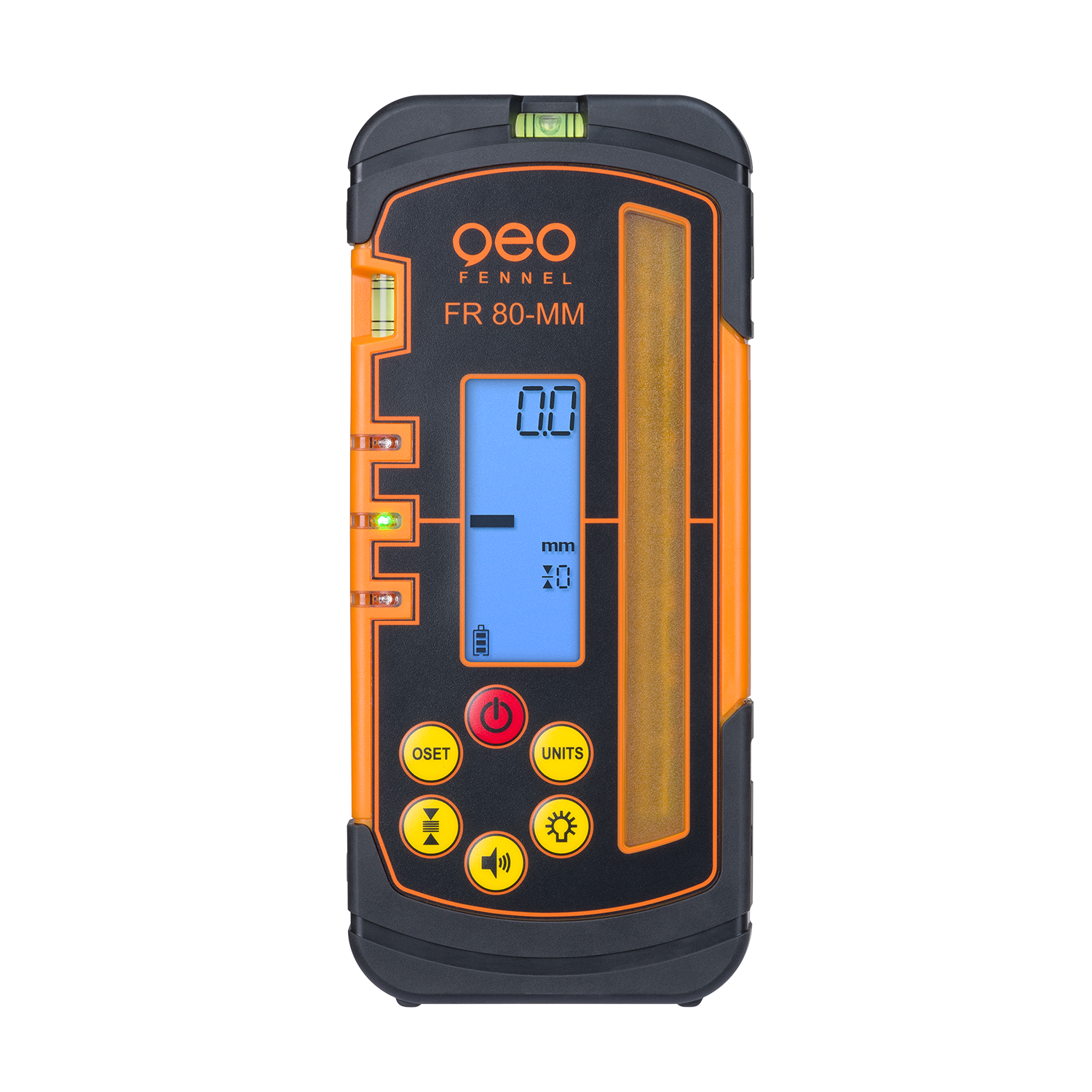

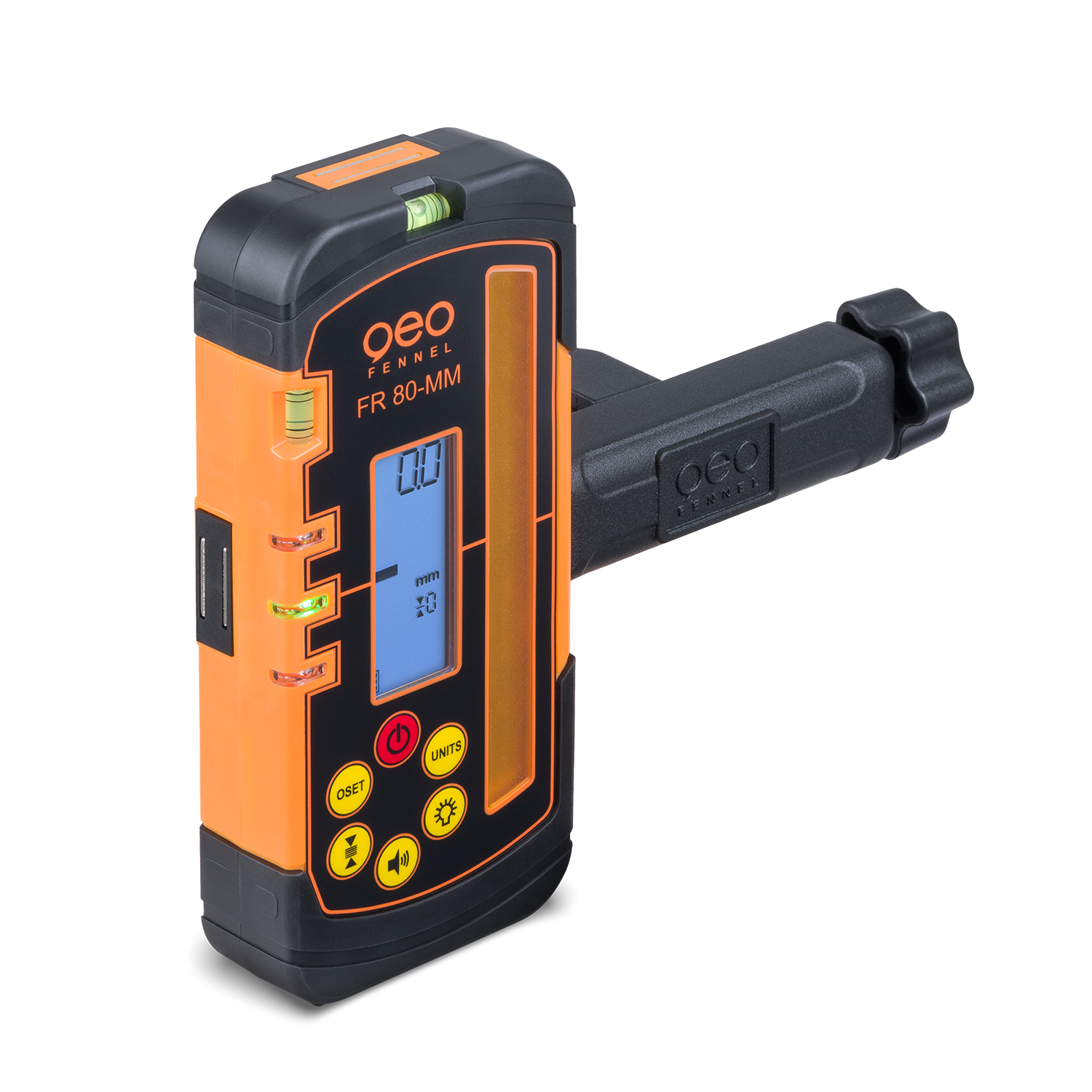

The geo-FENNEL FR 80-MM laser receiver features a digital laser height display in mm, an extra-long 120 mm reception field and is ideal for rotary lasers with a red or green laser beam.Like other receivers in this series, the FR 80-MM is characterized by its robustness in accordance with IP67. The easy-to-read, illuminated display with LED indicator and the metal retaining clip for the leveling staff offer the user the best possible working conditions, and the FR 80-MM is the only receiver in this series that allows the user to freely define the "0" position (offset).
Features
- For rotating lasers with red or green laser beam
- Segments of display indication increase / decrease proportionally
- "0"-Position can be defined (Offset)

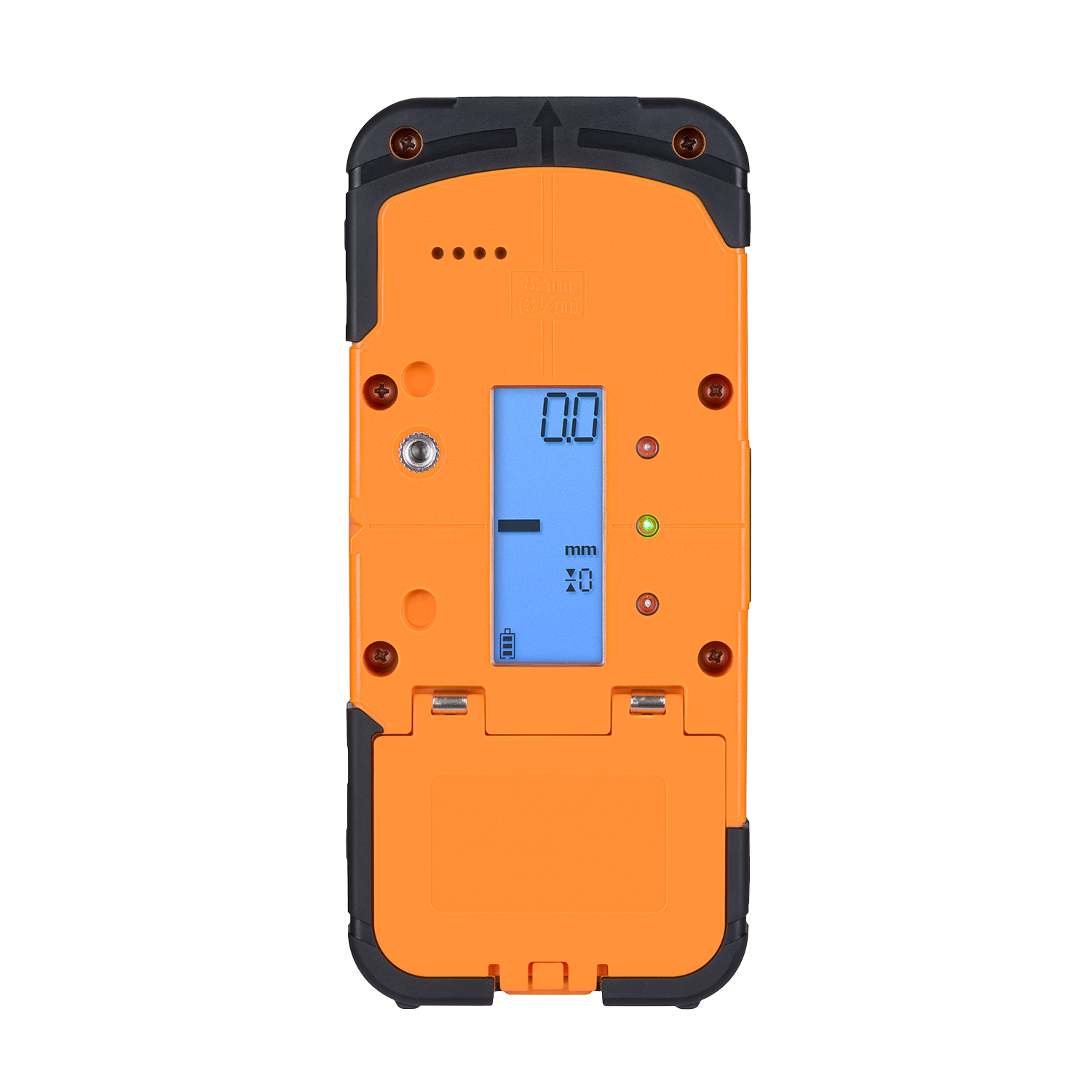

- Large LCD's at front and back, with backlight that can be switched on/off for optimal reading in all conditions.
- Shut-off tone
- Automatic shut-off
- Built-in vials
Supplied with
- 2 x AA Alkaline
- Clamp
- Bracket
- Specifications
-
Additional Information
Specification Technical data
Accuracy ± 0.5 / 1 / 2 / 5 / 10 mm Detecting range / accuracy 300 m / ± 5 mm 200 m / ± 2 mm 100 m / ± 1 mm 50 m / ± 0.5 mm Accuracy mm-indication ± 0.5 mm Length of receiving window 120 mm Length receiving area mm-indication ± 40 mm from on-grade Offset range (0SET) from base line ± 20 mm Measuring units mm,in,fraction Signal tones 2 + soundless Display indication front, back LED indication front, side, back Power supply 2 x AA Alkaline Operating time 40 h -with activated LCD illumination 32 h Temperature range -10 °C to +50 °C Display illumination yes Magnets top & side Vials top & side Dust / water protection IP 67 Dimensions 175.5 x 78 x 31 mm Weight (instrument with batteries) 0.36 kg - Reviews
-
