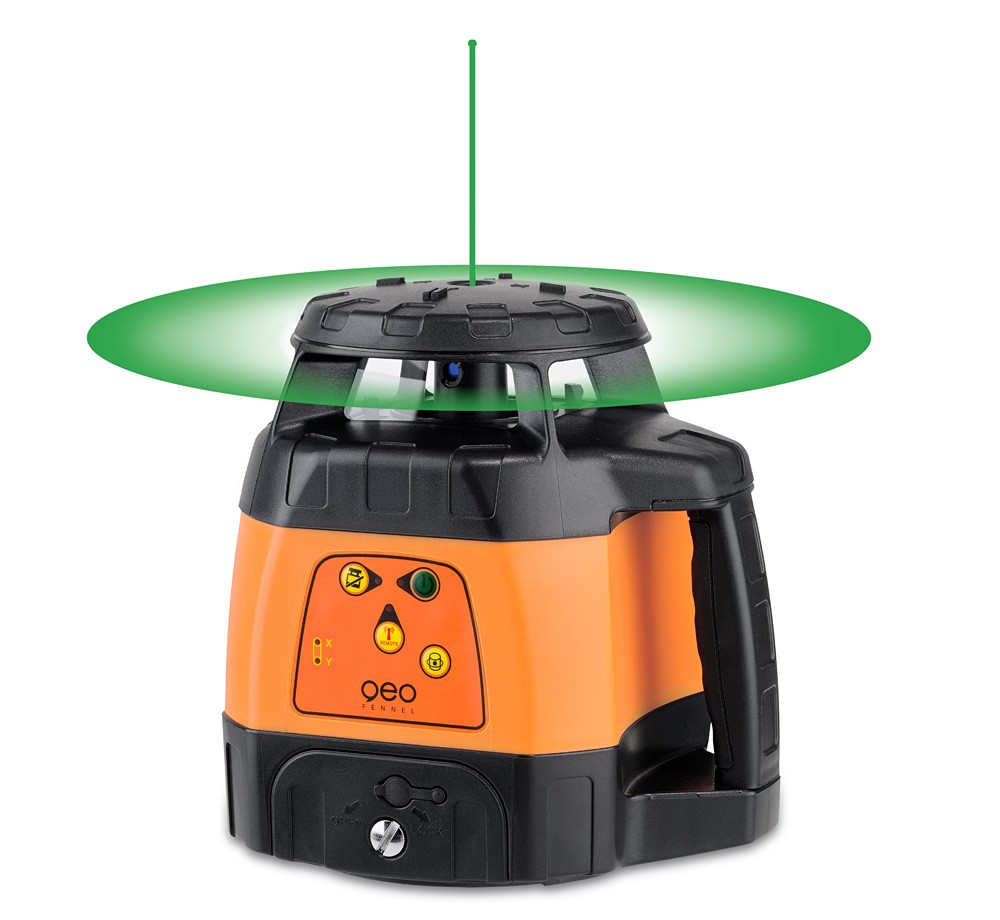

FLG 245HV Tracking Laser

FLG 245HV Tracking Laser

More Views

Excl. Tax: £1,019.00 Incl. Tax: £1,222.80

Availability: In stock

The ultimate solution for interior applications

Versatile and easy to use this feature packed laser is designed for the interior profesional with IP 54 dust and water protection making it suitable for outdoor use. Fully automatic self-levelling in horizontal and vertical.

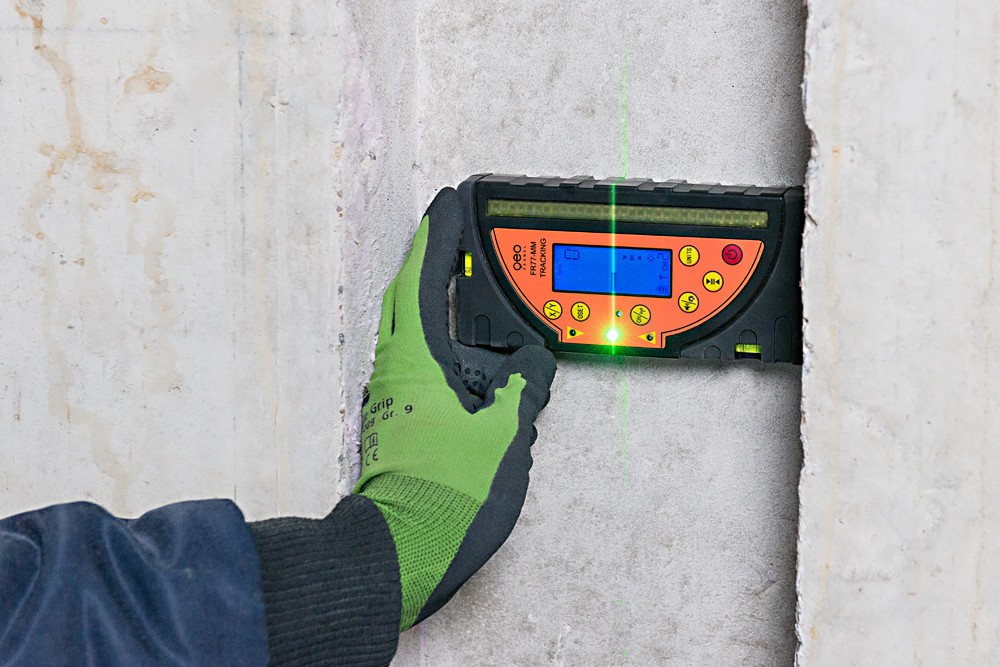

Tracking function controlled from the reciever

Accurate, robust and temperature stable.

The new innovative low friction drive mechanism and self-levelling module reduce noise generation and increase battery life.

For the ultimate in ease-of-use the only control functions on the instrument are to power on/off the laser and remote control. All additional functons including scanning and slope setting are accessed from the remote control.

BS 5m 5 Section Staff

Yes +£30.00 (+£36.00 Incl. Tax)

FS 20 Aluminium Tripod

Yes +£35.00 (+£42.00 Incl. Tax)

TN 20 Combi Rod

Yes +£30.00 (+£36.00 Incl. Tax)

Excl. Tax: £1,019.00 Incl. Tax: £1,222.80

Qty:

-OR-

Description

Features

Green beam visible laser
2 rotating speeds 300 & 800 rpm
Working range of tracking function 60 m
Variable scanning and laser point mode
Dust and water protection IP 54
Manual slope setting up to ± 5° (± 9%) in bothe X and Y axis
Permanent 90° plumb beam
Automatic TILT alarm function
Remote control function (on/off)
Auto shut-off when out of level
Floor mount with centring mark for accurate positioning

Supplied with

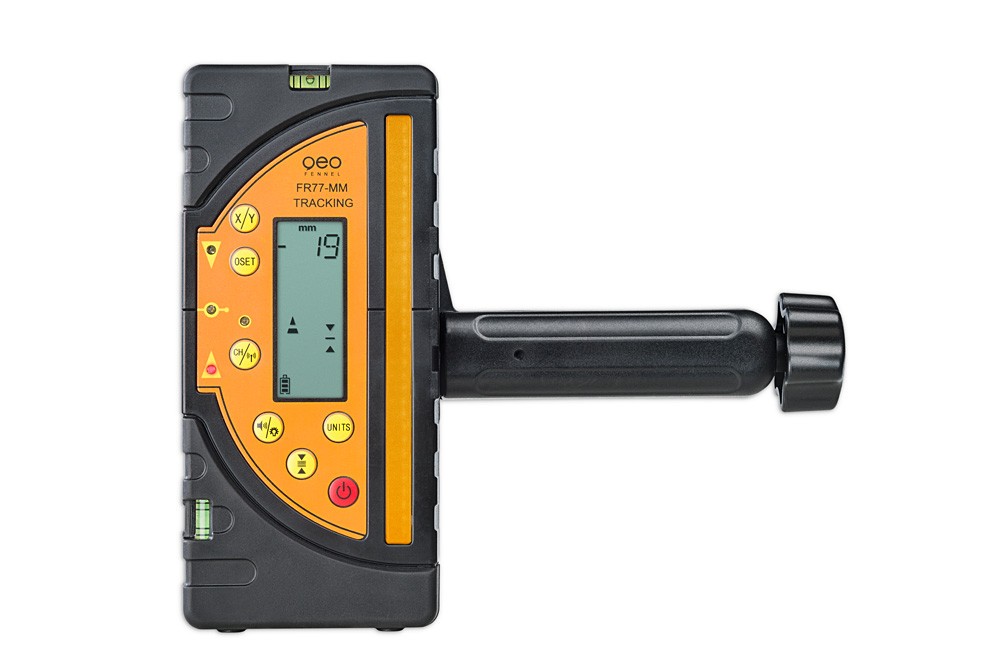

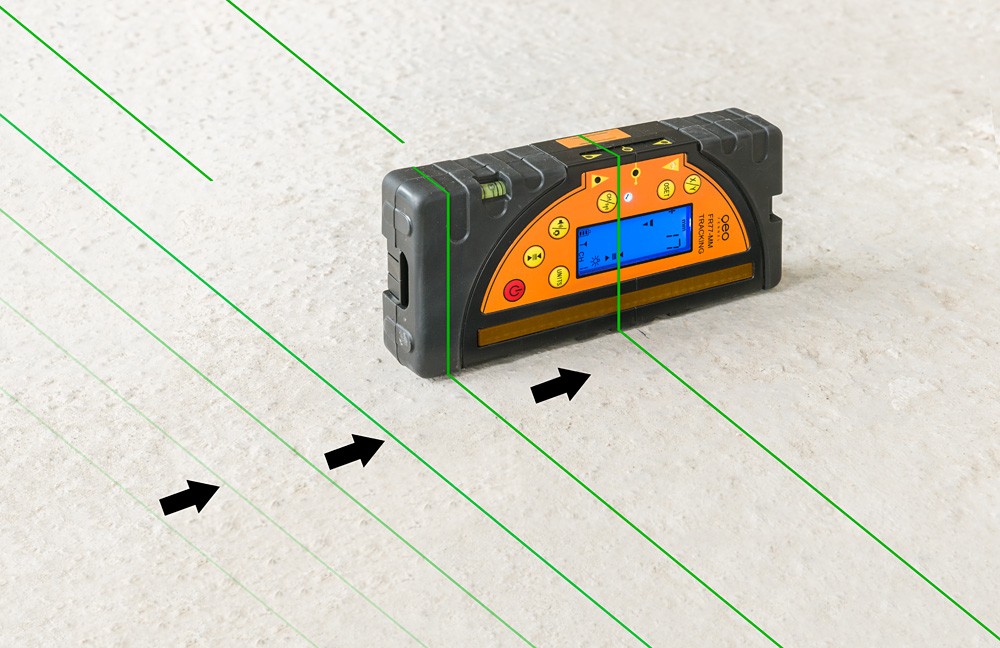

Tracking Receiver FR 77-MM with clamp

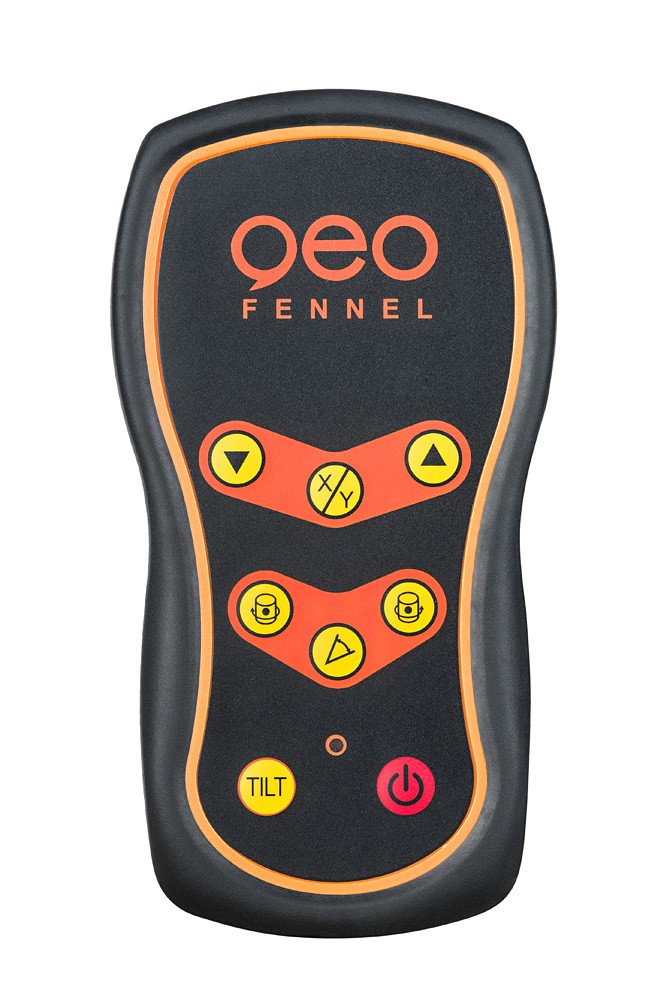

Remote control
Rechargeable battery (NiMH)
Intelligent charger
Battery case for alkaline batteries

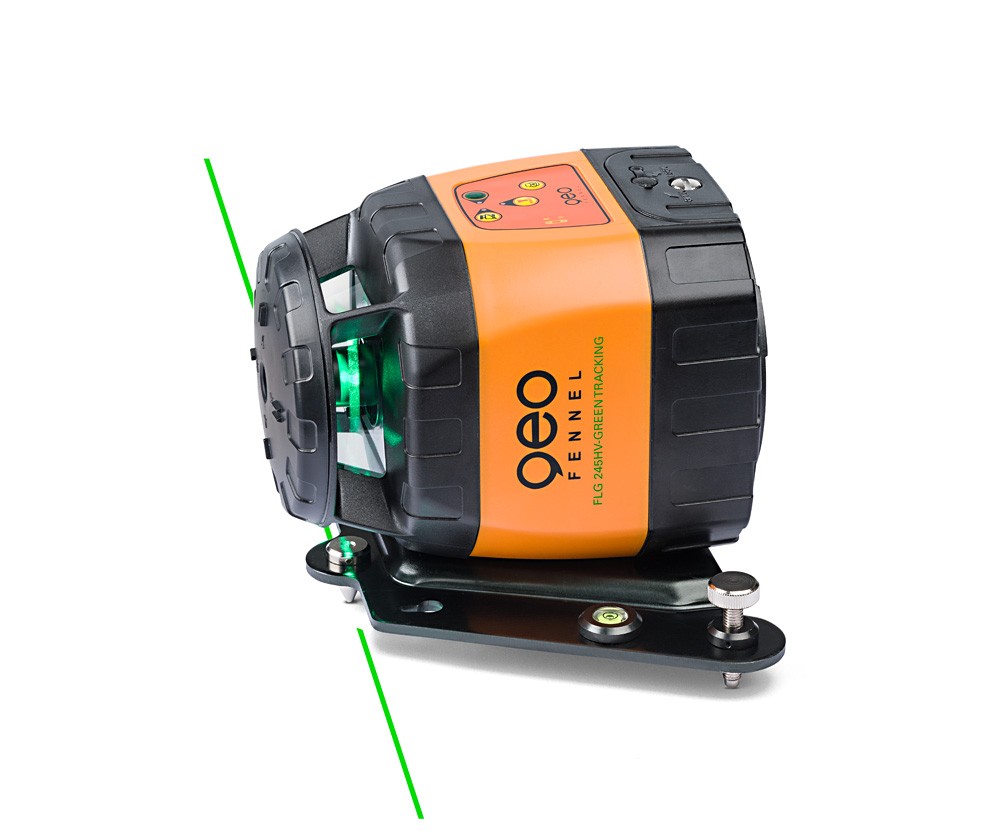

Floor/wall mount
Laser intensive glasses
Magnetic target
Hard Carrying Case

Specifications

Additional Information

Specification

Technical data

Manufacturers product code	244701

Self-levelling range	± 5°
Accuracy horizontal	± 1 mm / 10 m
Accuracy vertical	± 1.5 mm / 10 m
Working range with receiver FR 77-MM Tracking Ø	1000 m
Working range tracking function	60 m
Scanning w/o receiver (radius)	60 m*
Rotating w/o receiver Ø	40 m*
Scanning modes	2
Slope setting in X and Y axis	± 5° (± 9 %)
Rotating speed rpm	300, 800
Operating time / Power supply	24 h (NiMH)
Remote control range	IR 100 m
Temperature range	-20 °C to 50 °C
Laser class	2
Dust / water protection	IP54
Weight (instrument with batteries)	1,95 kg
