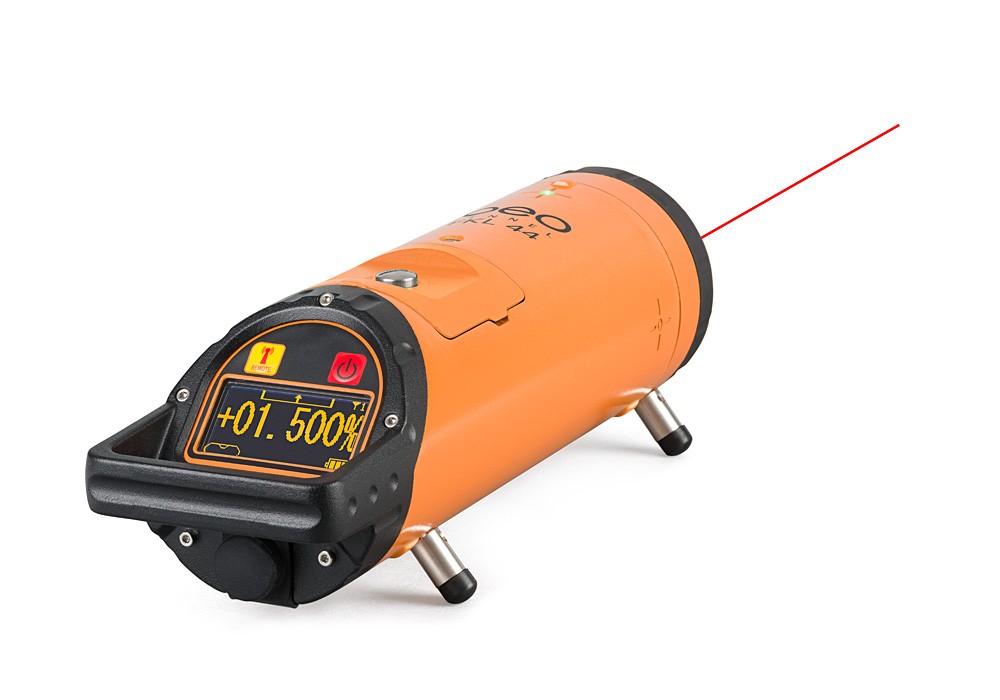

FKL 44 Pipe Laser

More Views

FKL 44 Pipe Laser
Excl. Tax: £1,999.00 Incl. Tax: £2,398.80

Availability: In stock

For tube diameters of 100 - 300 mm


Our latest generation of pipe laser with a robust all metal housing.


- OLED Display with large digits
- FR Remote control with 100 m working range
- Easy intuitive operation for a positive user experience
- Quick orientation of laser spot using remote control
- Rugged and easy to use with a comprehensive range of accessories.

FR-FKL Tracking Receiver (optional)


- Tracking function for automatic detection of the horizontal target plate.
- Saves you time and money setting out.

* Required Fields

Excl. Tax: £1,999.00 Incl. Tax: £2,398.80
Description

Features

  • Robust aluminium housing
  • Easy intuitive operation
  • Fully automatic self-levelling
  • Automatic beam centering
  • Laser start point indication
  • Clear easy-to-read OLED-Display
  • RF remote control with long working range
  • Integrated rechargeable Li-ion battery pack

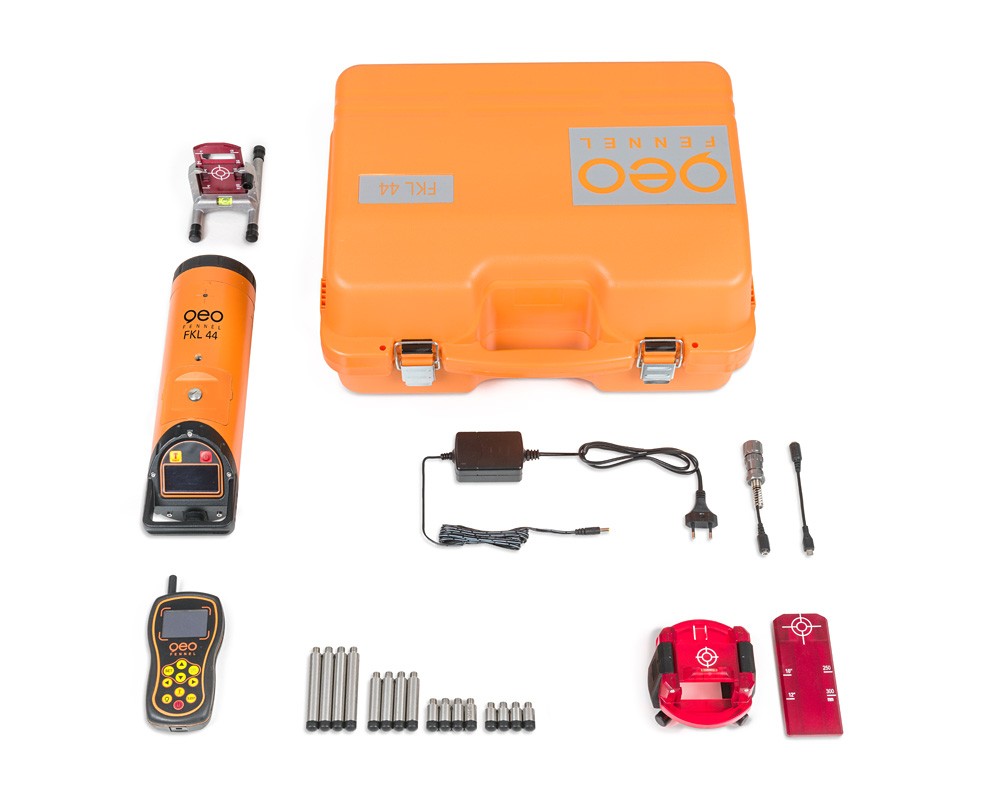

Supplied with

  • Target frame with targets DN 100/125/150/200/250/300
  • Special target for DN 100 pipes
  • Target frame for FR-FKL Tracking
  • RF remote control
  • Leg set DN 125/150/200/250/300
  • Li-ion Battery pack & Charger

Specifications

Technical data

Manufacturers product code 454000
Laser class 2
Laser diode red
Beam diameter 10 mm
Working range up to 120 m
Grade range -20 % to +30 %
Self-levelling range ± 5°
Minimum display reading 0,000 %
Horizontal accuracy ± 5 mm / 100 m
Left / right tracking ± 10°
Operating time 24 h (NiMH)
Power supply 8000 mAh Li-ion
IR remote control range
  front / back

100 m / 50 m
Temperature range -20 °C to +50 °C
Dust / water protection IP 68
Dimensions Ø 96 mm, length 332 mm
Weight (laser only) 2.8 kg
