Geo1X-360 Green

Geo1X-360 Green

More Views

Geo1X-360 Green

Excl. Tax: £279.00 Incl. Tax: £334.80

Availability: In stock

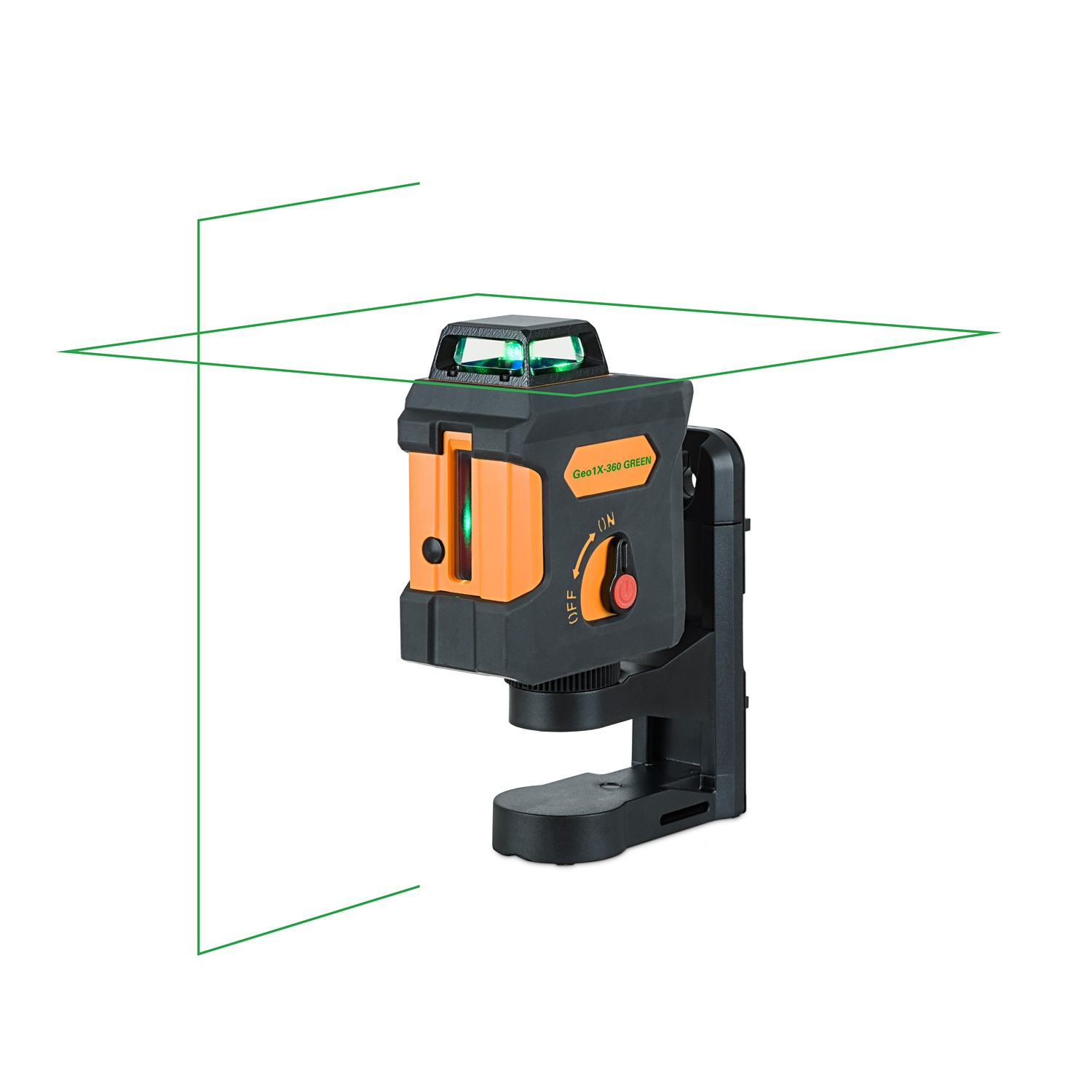

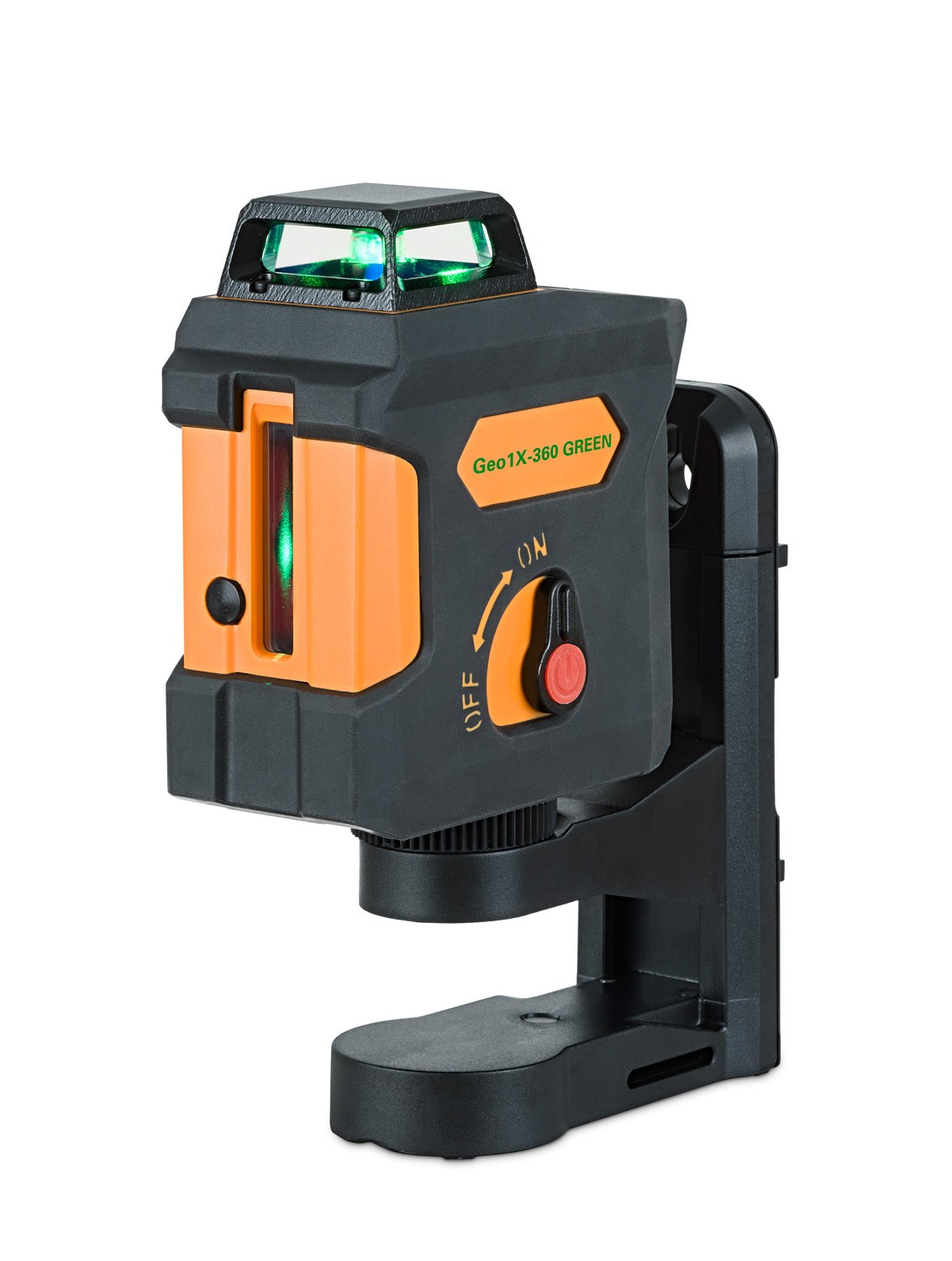

A fully automatic self-levelling Green beam line laser

Projects a highly visible 360° horizontal line and a laser cross
The horizontal line is intersected by the vertical line to form a laser cross
Can be used with a receiver to extend the working range up to 50 m (optional)
Self-levelling function can be switched off for manual use - TILT function
Audible and visual warning alarm when out of level

Shop our range of 360 laser levels

Qty:

-OR-

Description

FEATURES

1x 360° Green Beam horizontal line
1x Green Beam laser cross
Use with a receiver to extend the working range up to 50 m (optional)
Self-levelling function can be switched off for manual use - TILT function
Audible and visual alarm when out of level

1/4" thread on instrument base

Both 5/8" and 1/4" threads on multi-functional base for use with tripods

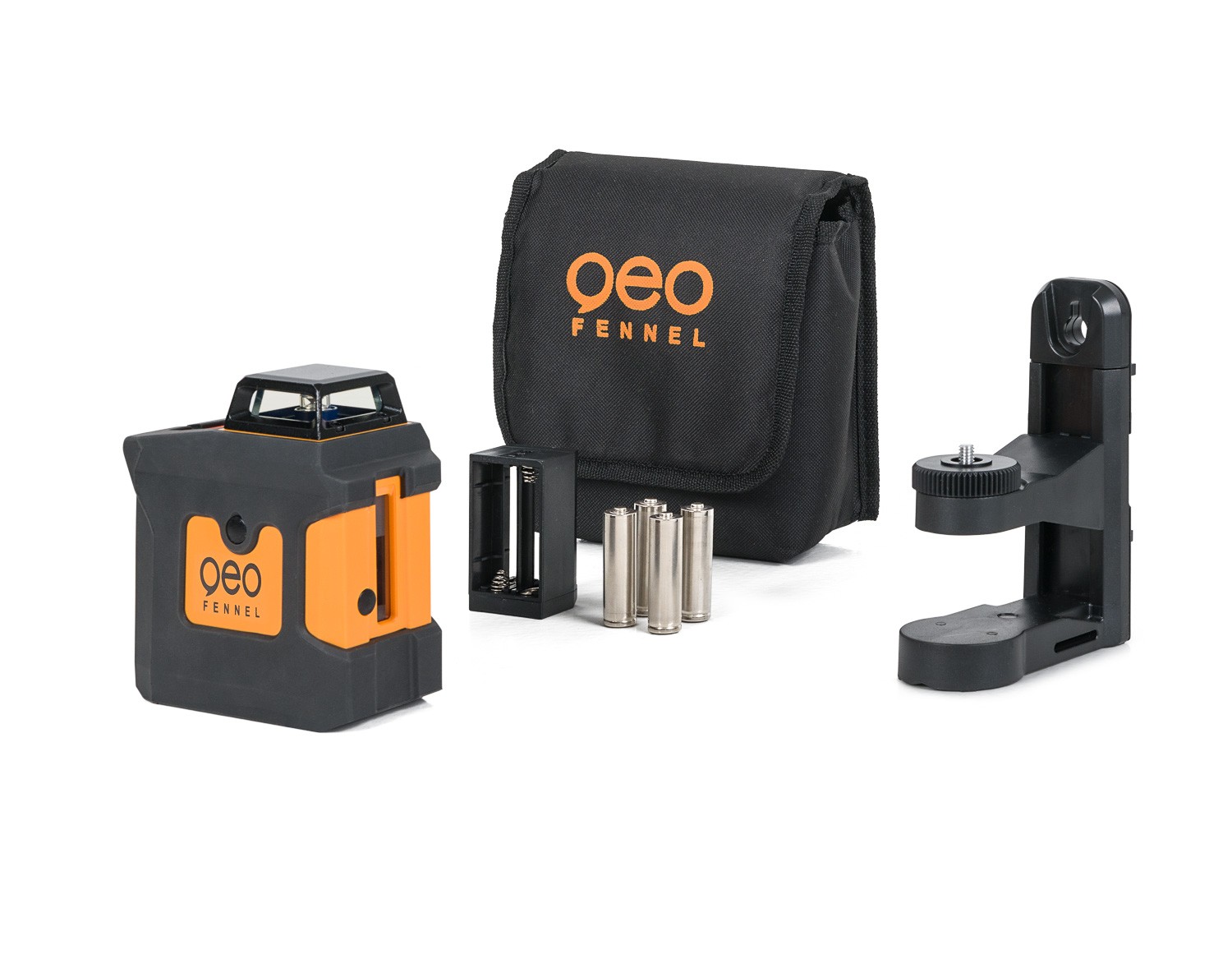

Kit consists of:

Geo1X-360 GREEN
Multi-functional mount
4x AA Alkaline batteries
Padded Carrying Bag
User manual

Specifications

Additional Information

Specification

Technical Data

Manufacturers product code	533100

Self-levelling range	± 3°
Accuracy	± 3 mm / 10 m
Working range w/o receiver	30 m*
Working Range with receiver	50 m**
Fan angle Horizontal	360°
Fan angle Vertical	135°
Power supply	4 x AA Alkaline
Working time	10 h
Dust / water protection	IP 54
Laser diode	Green
Laser class	2
Temperature range	-20°C to +45°C
Weight (instrument with batteries)	0.65 kg
* depending on room illumination
** depending on the direction of the Laser
