Total Station FTS 202

Total Station FTS 202

More Views

Excl. Tax: £3,399.00 Incl. Tax: £4,078.80

Availability: In stock

Reflectorless Total station

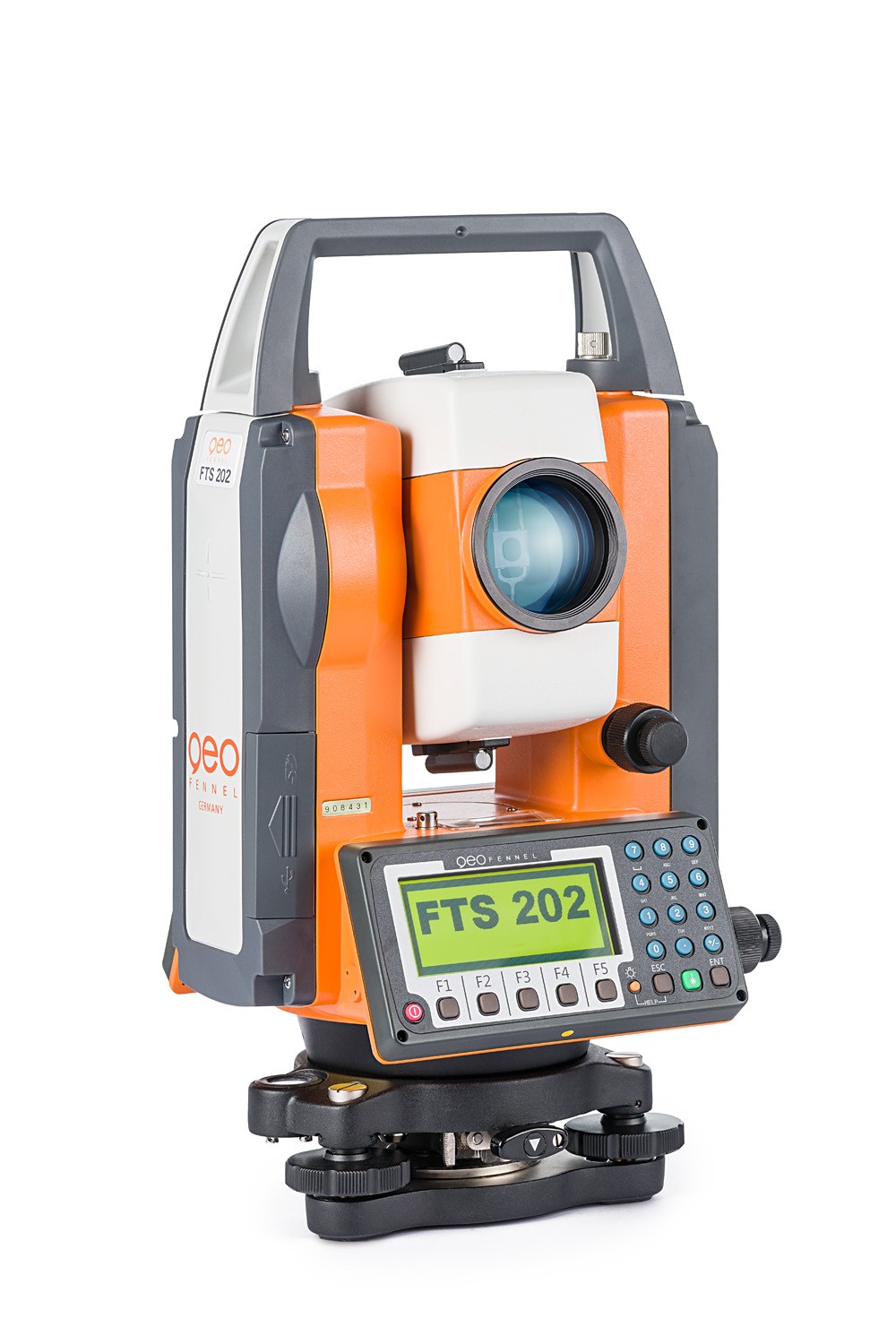

The geo-FENNEL Total Station FTS 202 is an innovative Total Station with a reflectorless range of more than 500 m. This range is further extended to more than 3,000 m with a single reflector.

Equiped with an electronic level, the geo-FENNEL Total Station FTS 202 provides an exceptionally powerful and cost effective solution for a wide range of general and specialised construction and engineering applications.

Qty:

-OR-

Description

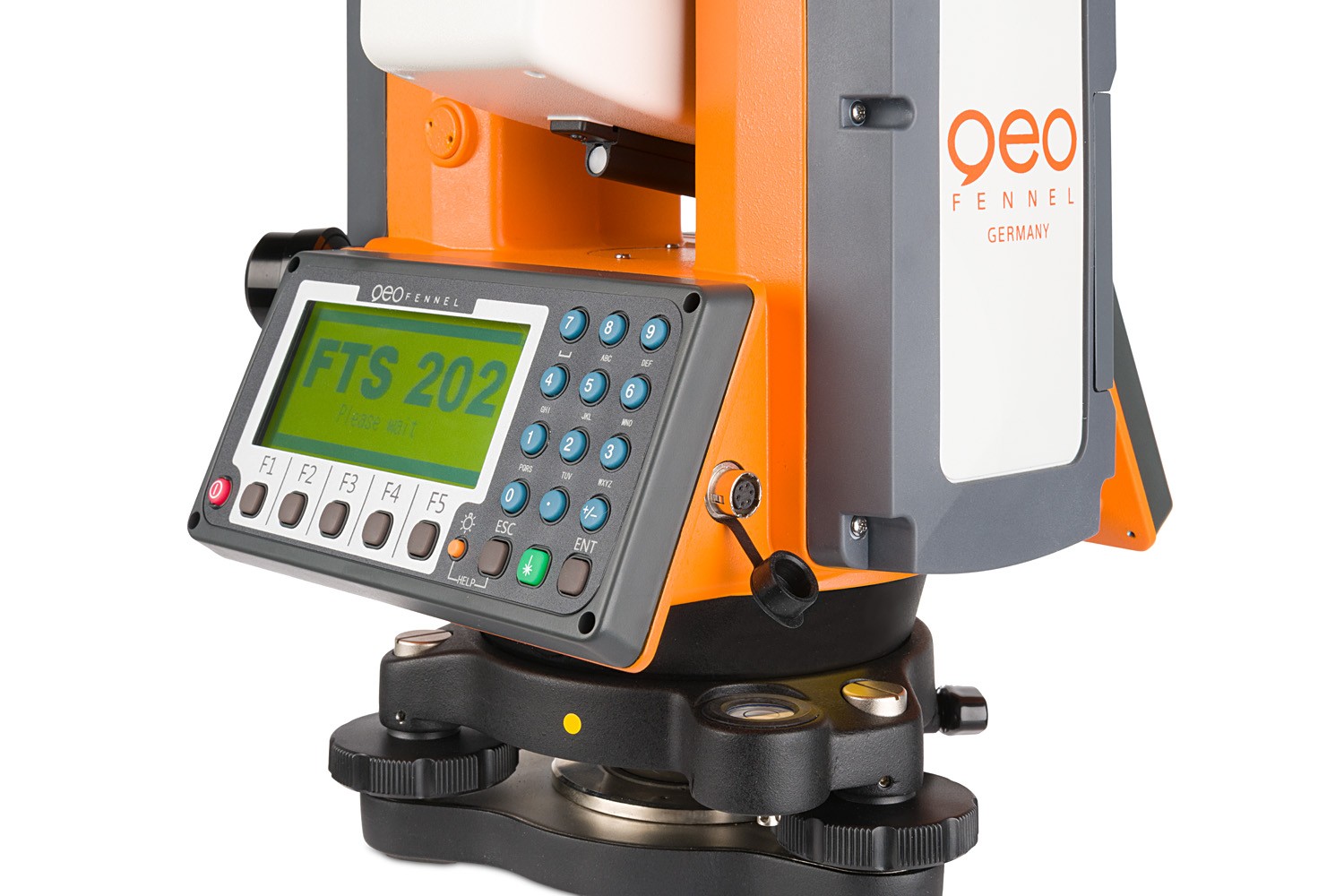

The geo-FENNEL FTS 202 Total Station is designed to be user- friendly, quick and easy to set-up, robust and reliable.

Selection of applications that support the software in your daily routine:

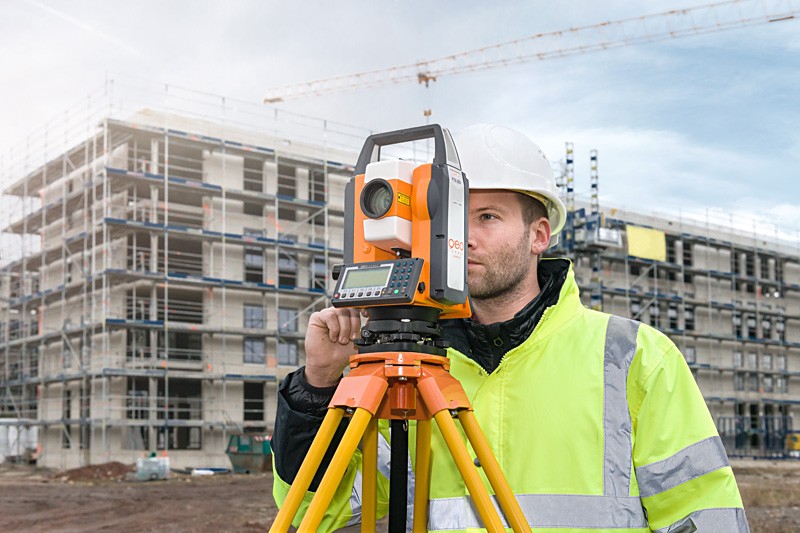

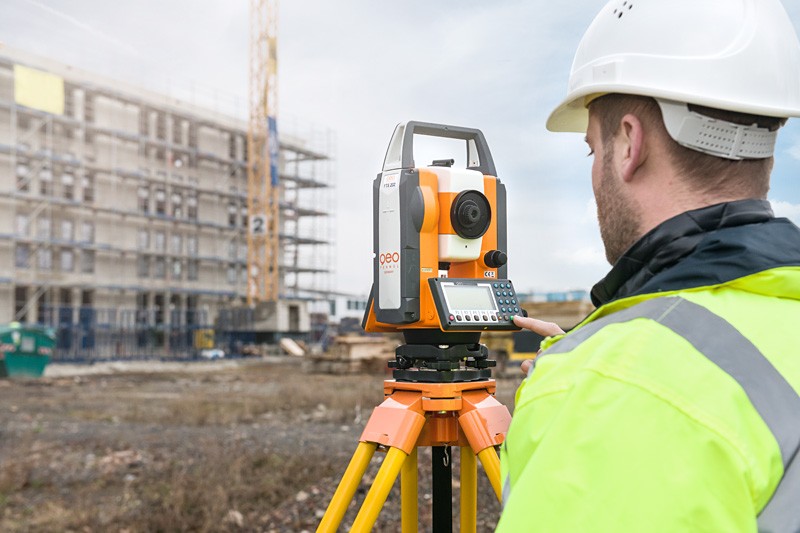

Construction & engineering surveying
Stake-out
Point to line, bends
Graphic display
Free stationing and resection
Height determination
2D/3D interface
Indirect distance measurement
Right-angle coordinates, polar coordinates
Roads
Volume determination
Geodetic tasks and cadastral surveys

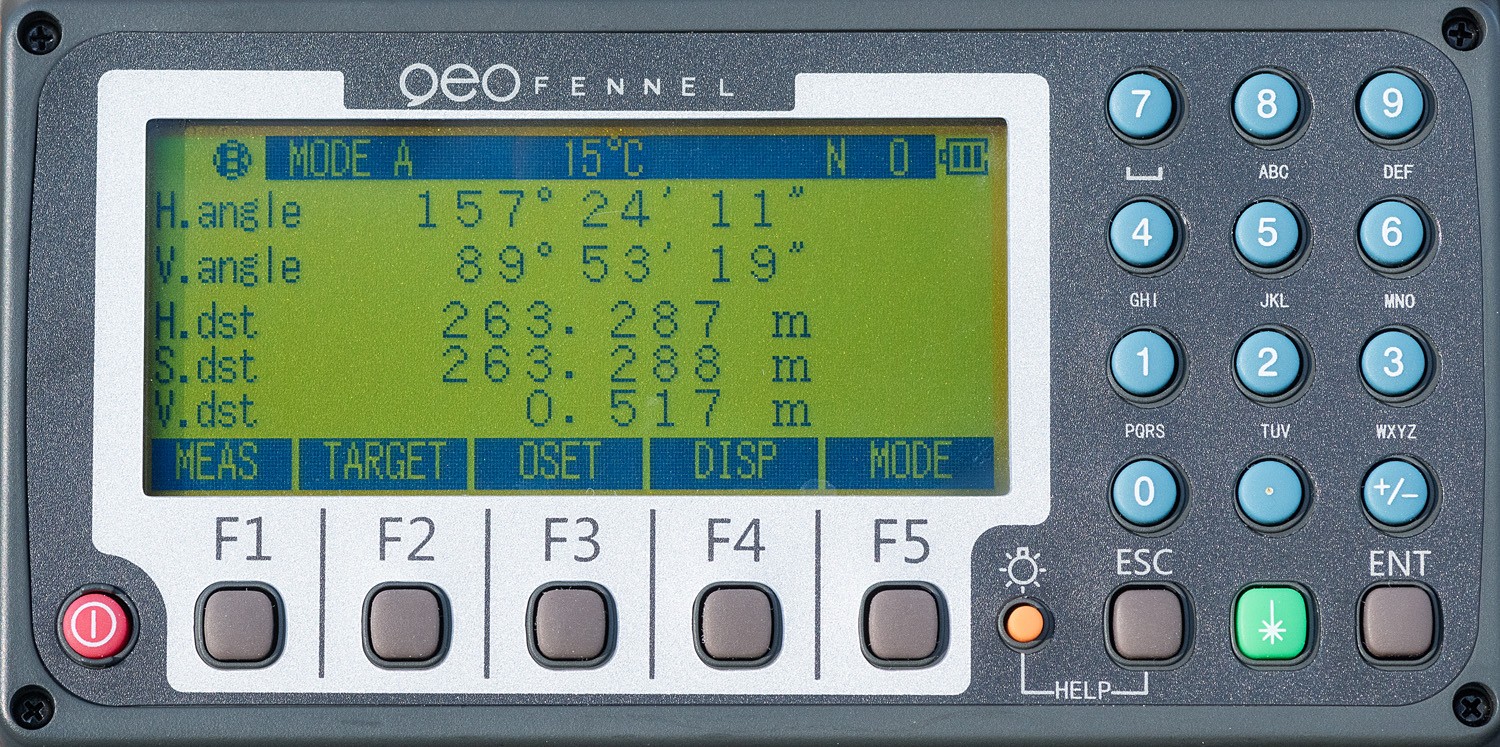

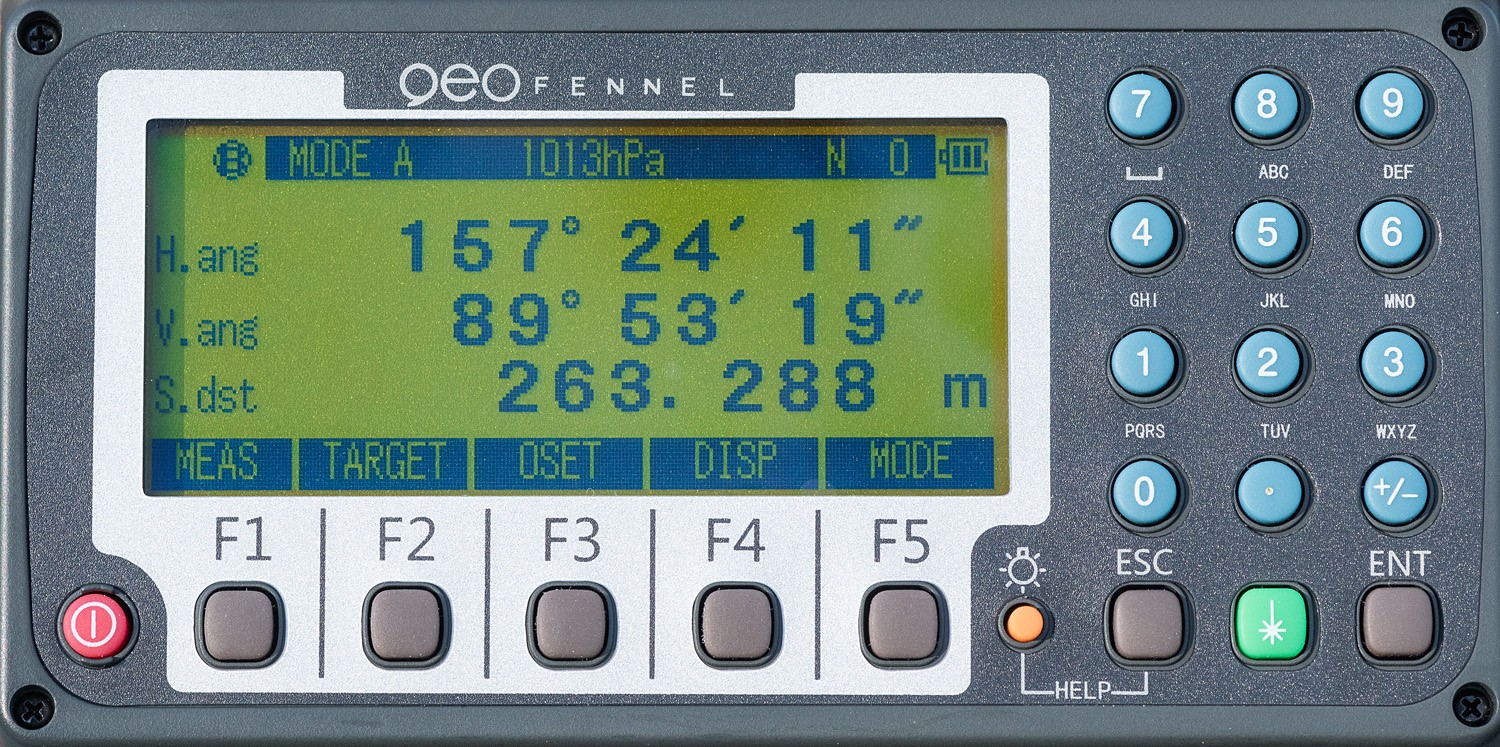

Simple intuative user interface with large high-contrast graphic illuminated LCD's

The exchange of data takes place via standard interfaces or Bluetooth. The software supports uploads and downloads between the geo-FENNEL FTS 202 and computers. The software geo-FENNEL DL-01 allows direct exchange of data with any software.

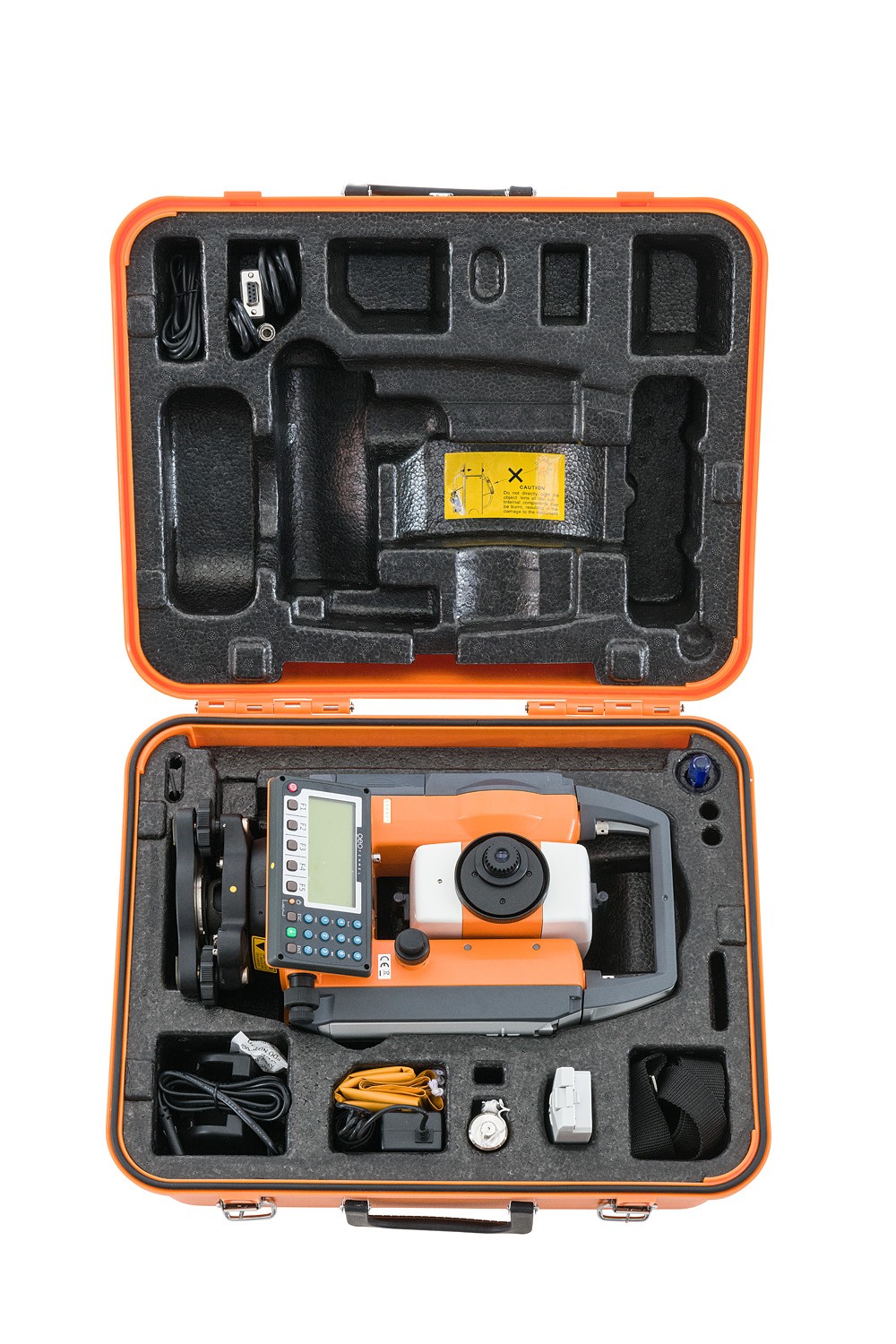

Supplied with:

Desktop charger
2x Li-ion battery packs
Data cable
Stake-out aid RS96
Hard carrying case

Specifications

Additional Information

Specification

Technical data

Manufactureres product code	710200
Telescope
Image	Erect
Objective aperture	45 mm
Magnification	30 x
Field of view	1° 30'
Resolving power	3''
Shortest focus distance	1.0 m
Distance measurement
Reflectorless	1 - 300 m
Reflective tape target	1.5 - 600 m
Mini Prism	1.5 - 1,500 m
Single standard Prism	1.5 - 4,000 m
Accuracy	2 mm + 2 ppm
Offset	variable
Measuring time
Fine / Rapid / Tracking	1,8 s / 0,9 s / 0,3 s
Minimum reading	1 mm
Distance units	m / ft
Angle measurement
Minimum reading resolution	1'' / 5''
Angle accuracy	2''
Angle units	100% / 360° / 400 gon
Compensator
Axis	2 Axis
Range	± 3°

Laser plummet
Accuracy	± 1 mm / 1.5 m
Laser classification	2
Display
Dual LCD 240 x 96 Pixel	20 Characters x 8 Lines
Power
Li-ion Battery Pack	4,400 mAh
Operating time	20 h
Supplied with battery charger	Yes
Vial sensitivity
Plate level vial	30'' / 2 mm
Circular vial	8' / 2 mm
General specs
Data recording	2 GB/528 MHz
Internal memory	20.000 coordinates

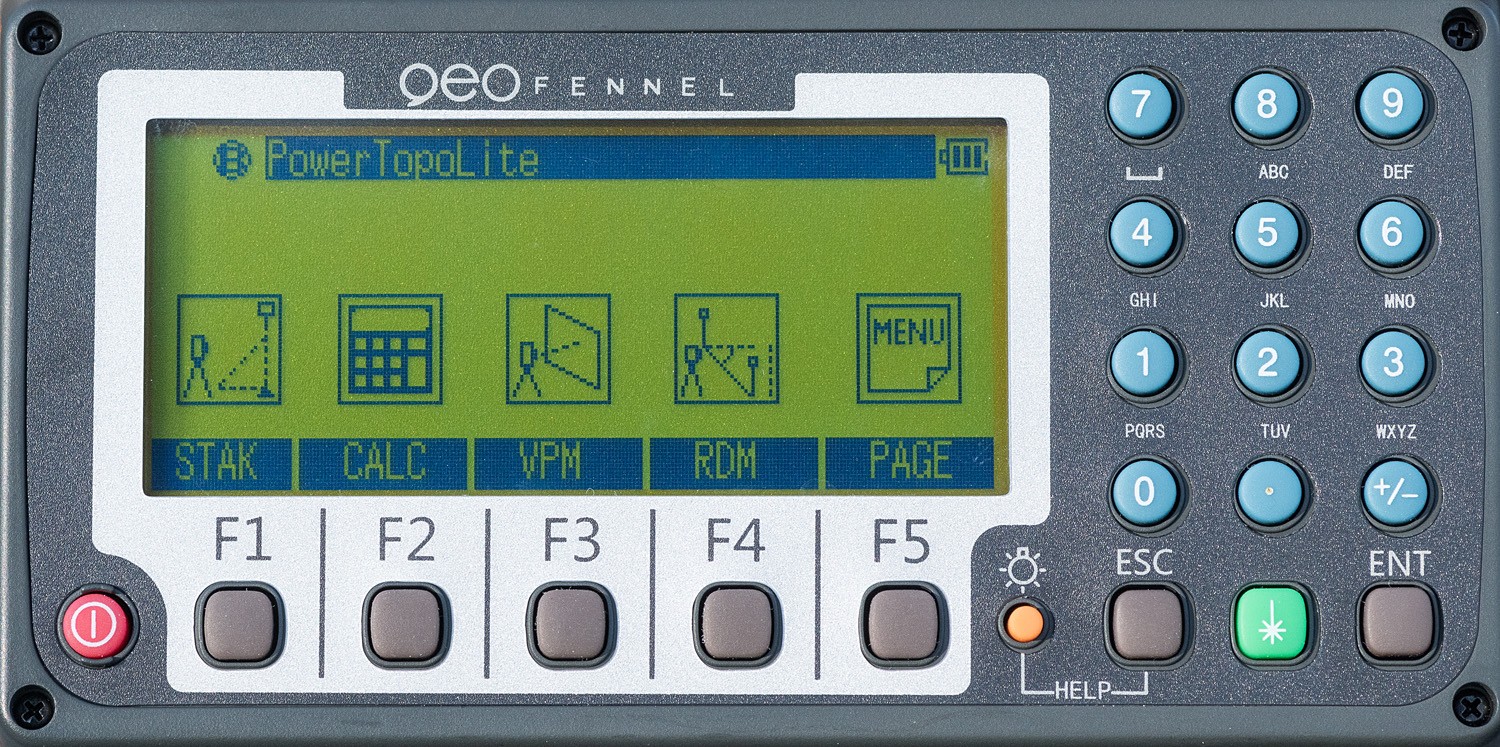

Special function	PowerTopoLite
External memory	SD-Card
Weight	5.7 kg
Opterating temperature	-20 °C to 50 °C
IP-Class	IP 56
I/F	RS-232C, Bluetooth, USB
