- Description
-
Features
- Can be used with either Red or Green beam rotating lasers

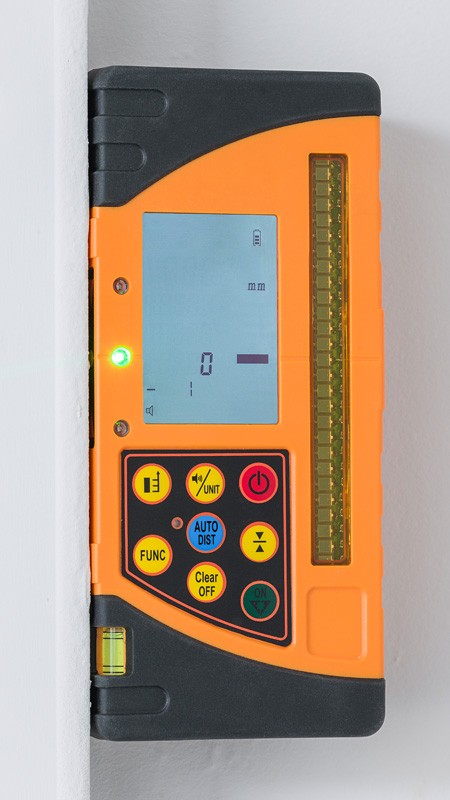

- mm-indication of difference between laser plane and "0" level

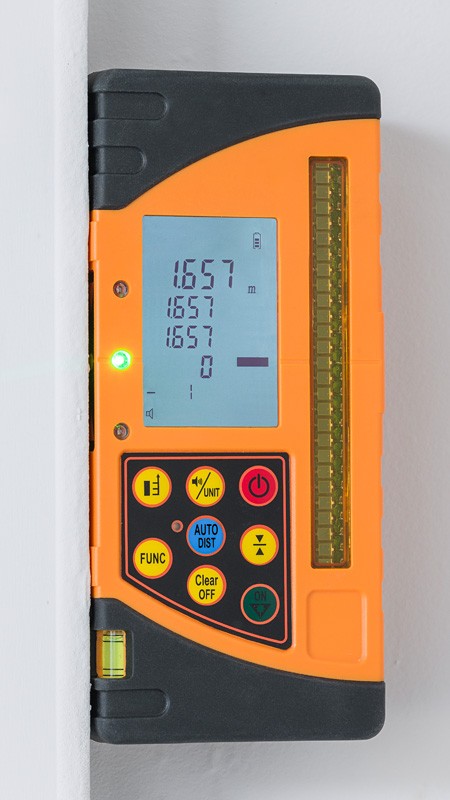

- Laser distance meter function
- Makes the levelling staff unnecessary for height control when using rotating laser
- Quick and contact free height control
- Direct reading of height difference during grading work

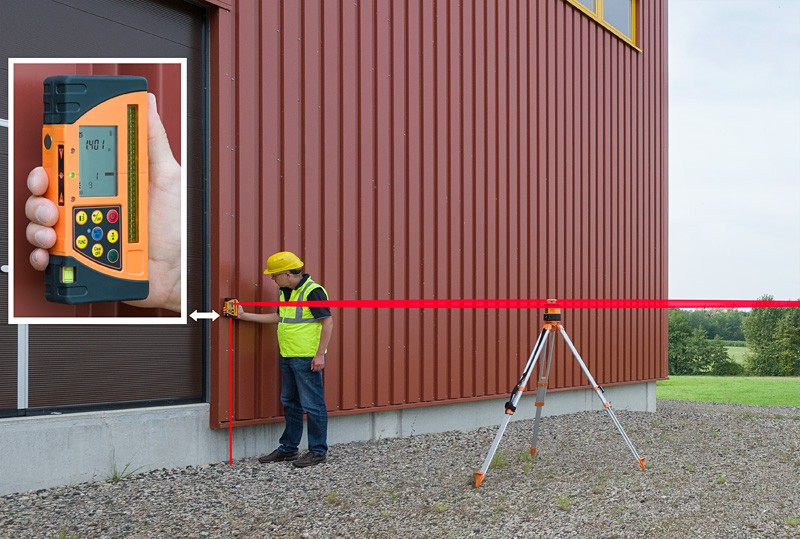

- Easy to check depth when working with excavator
- Eliminates the need for a second person holding the end of a measuring tape
- Dust / water protection IP 65
- Specifications
-
Additional Information
Specification Technical data
Laser Receiver Accuracy ± 1, 5 or 9 mm Working range 300 m radius Temperature range -10 °C to +50 °C Laser Distance Meter Accuracy ± 2 mm Measuring Range 50 m Temperature Range 0 °C to +40 °C Point of reference Bottom, On-Level and Top Measuring Units m / ft / inch Laser Class 2 General Length of Receiving window 100 mm Signal tones yes Display indication LCD front LED indication front and side Power supply 3x AA Alkaline Operating time as Receiver 30 h Operating time as Distance Meter 5000 measurements Operating time combined 8 h Display illumination yes Magnets & Bubble Vials Top & side Dust/Water propection IP 65 Dimensions 172 x 80 x 32 mm Weight 0.3 kg - Reviews
-
