- Description
-

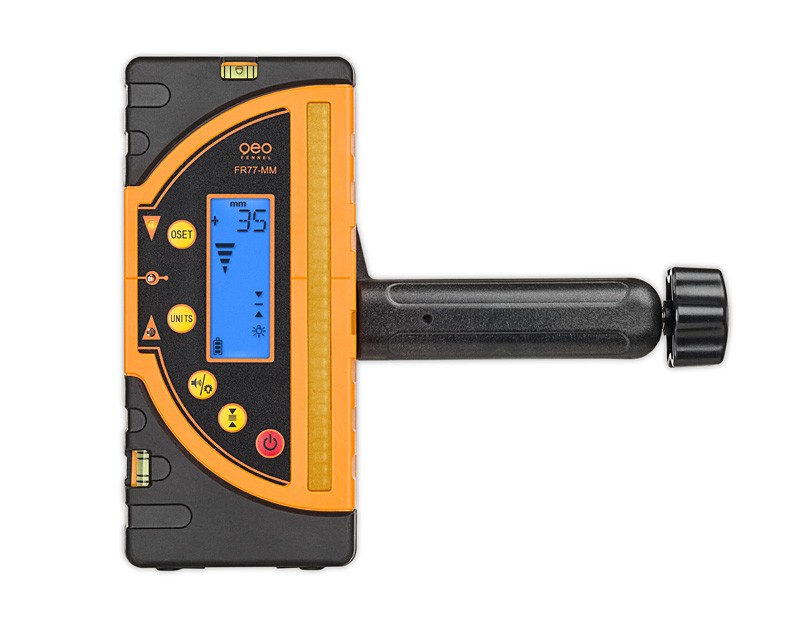

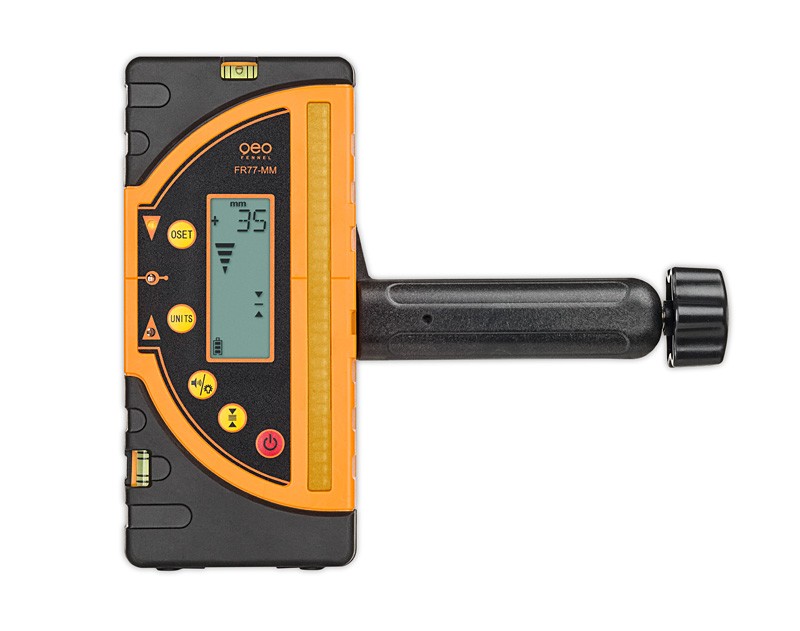

Features
- For rotating lasers using either a red or Green laser beam
- Extra-long receiving window
- mm-Indication of difference between laserplane and “0” level
- Segments of display indication increase / decrease proportionally

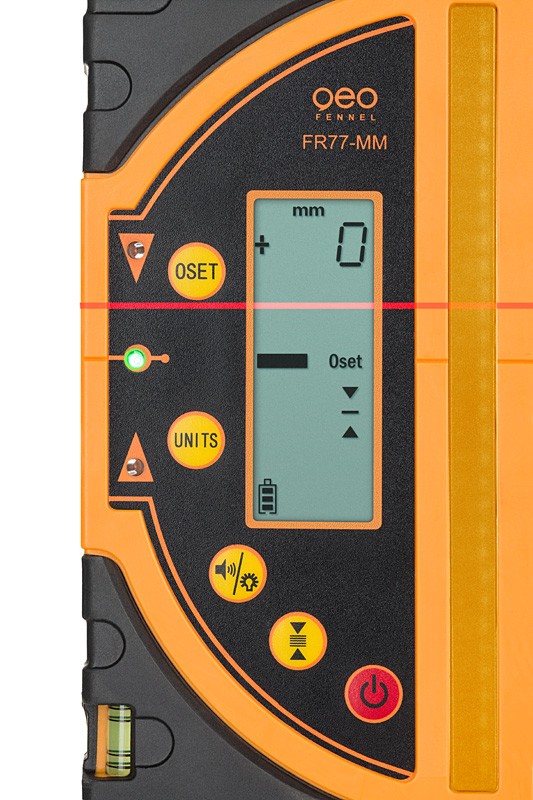

- “0”-Position can be defined (Offset)
- Display illumination
- Robust clamp
- Special mount for varied connection options
Supplied with
- 4 x AA Alkaline
- Clamp
- Bracket
- Specifications
-
Additional Information
Specification Technical data
3-step accuracy ± 2 / 5 / 9 mm Accuracy mm-indication ± 1 mm Working range class 2-Laser 150 m Working range class 3R-Laser 350 m Length receiving window 125 mm Length receiving area mm-indication 100 mm Offset range (0SET) from base line ± 20 mm Measuring units mm, cm, in, fraction of in Signal tones 3 Display indication front, back LED indication front, side, back Power supply / Operating time Alkaline / 110 h Temperature range -10 °C to +50 °C Display illumination yes Magnets top, side Vials top, side Dust / water protection IP 67 Dimensions 170 x 77 x 32 mm Weight (instrument with batteries) 0.5 kg - Reviews
-
