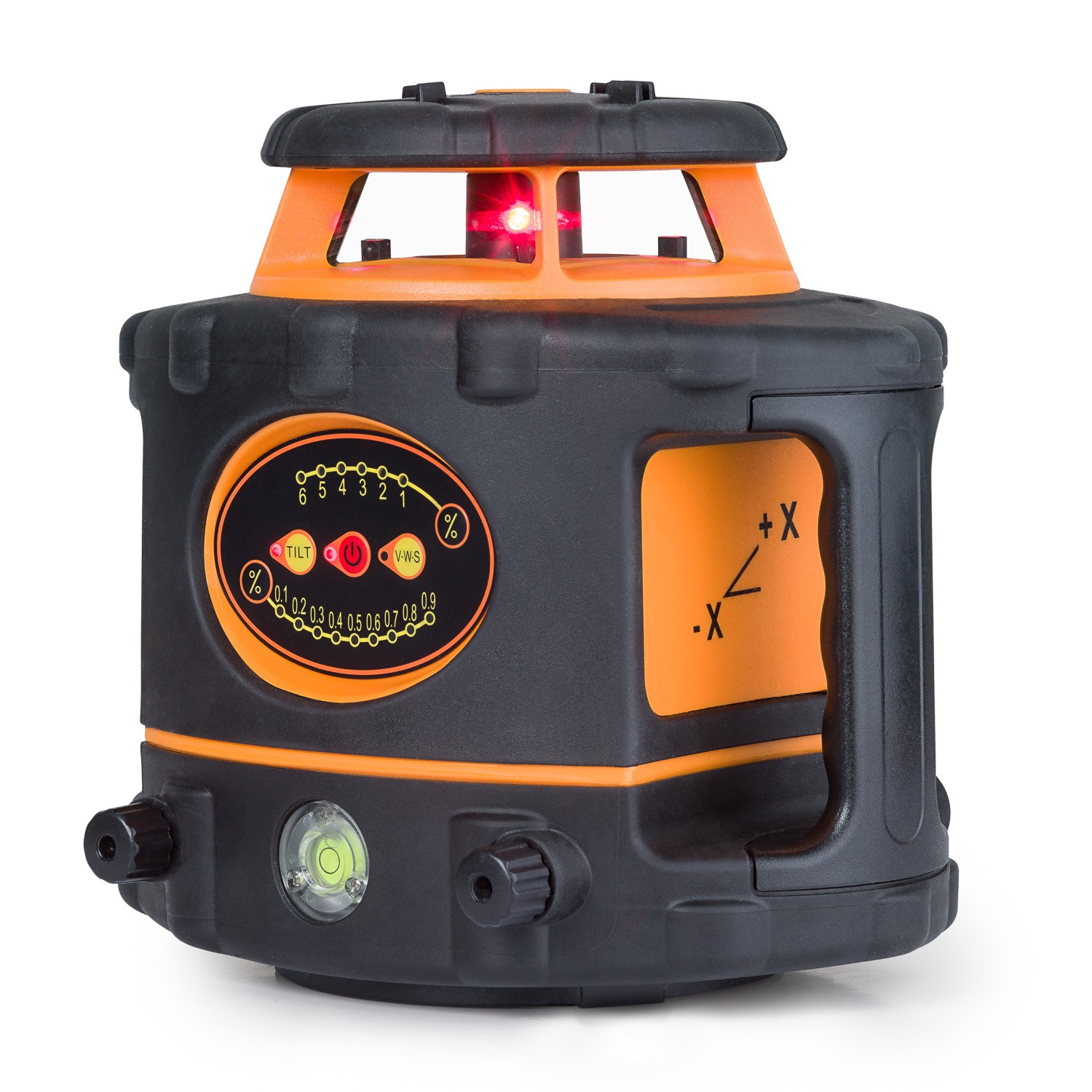

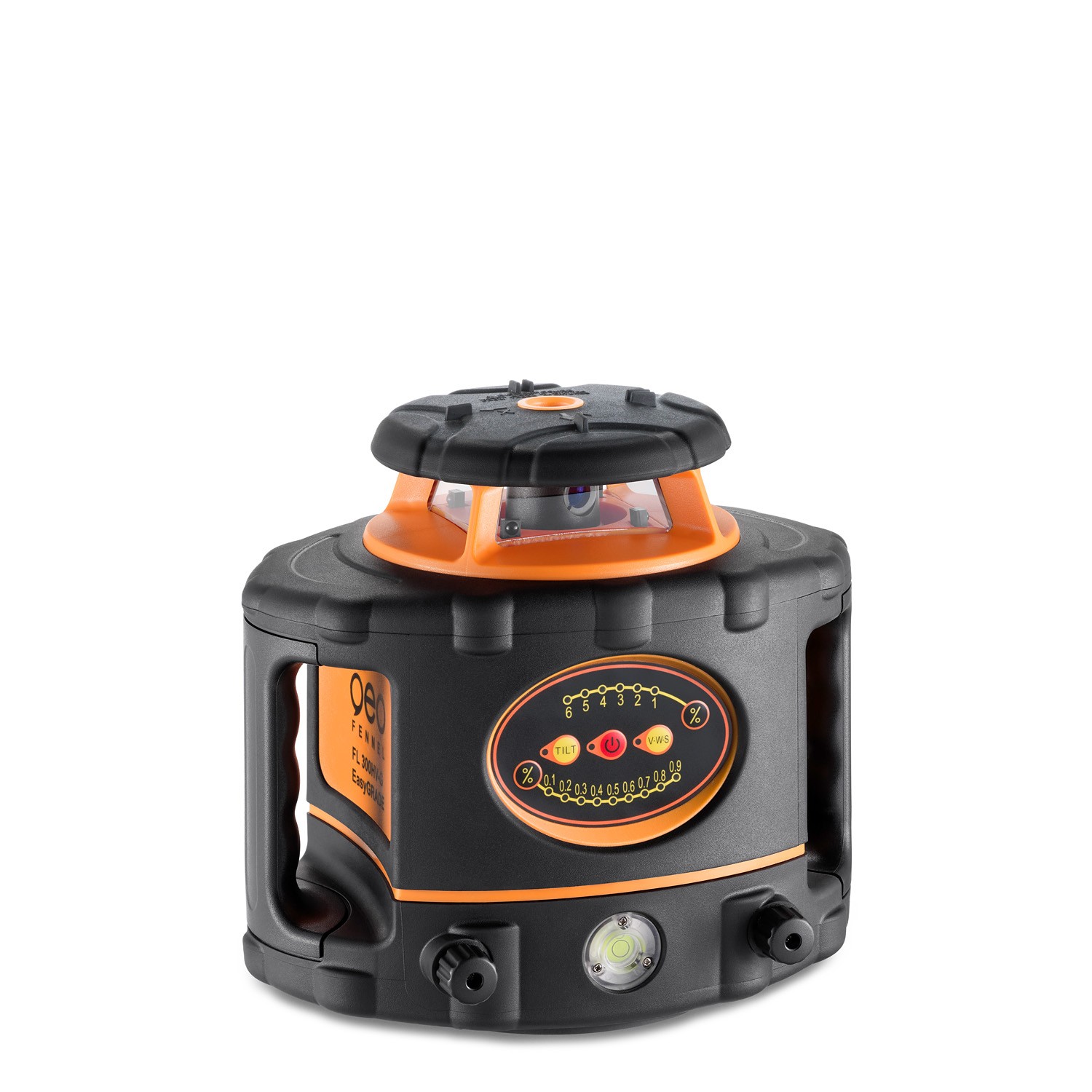

FL 300HV-G EasyGRADE

FL 300HV-G EasyGRADE

More Views

Excl. Tax: £779.00 Incl. Tax: £934.80

Availability: In stock

Many users find dual-axis grade lasers too complicated, expensive or overloaded with features. The FL 300HV-G brings a new meaning to user friendly and ease-of-use!

Simply press the % buttons on the keypad to set the X Axis grade, it's as easy as that. The X Axis range of 0.1% to 6.9% covers the majority of on-site tasks.

The Y Axis is automatically self-levelled or can be used to set a manual grade with the remote control.

Easy grade setting, long working range, TILT & VWS security functions, dust / water protection to IP 66, Lithium (Li-Ion) battery technology, a permanent 90° beam to zenith, integrated floor mount with centring mark and IR remote control with a 100m range.

The kit includes the FR 45 Receiver with clamp, Remote Control, Lithium re-chargeable battery pack, intelligent battery charger, battery box for alkaline batteries supplied in a hard carrying case.

BS 15-0 5m 5 Section Staff

Yes +£30.00 (+£36.00 Incl. Tax)

FS 23 Aluminium Tripod, Quick Clamp

Yes +£45.00 (+£54.00 Incl. Tax)

Excl. Tax: £779.00 Incl. Tax: £934.80

Qty:

-OR-

Description

Features

Visible laser beam
Fully automatic self-levelling in Horizontal and Vertical
Numerical grade setting in horizontal axis - X
Manual grade setting in horizontal axis - Y

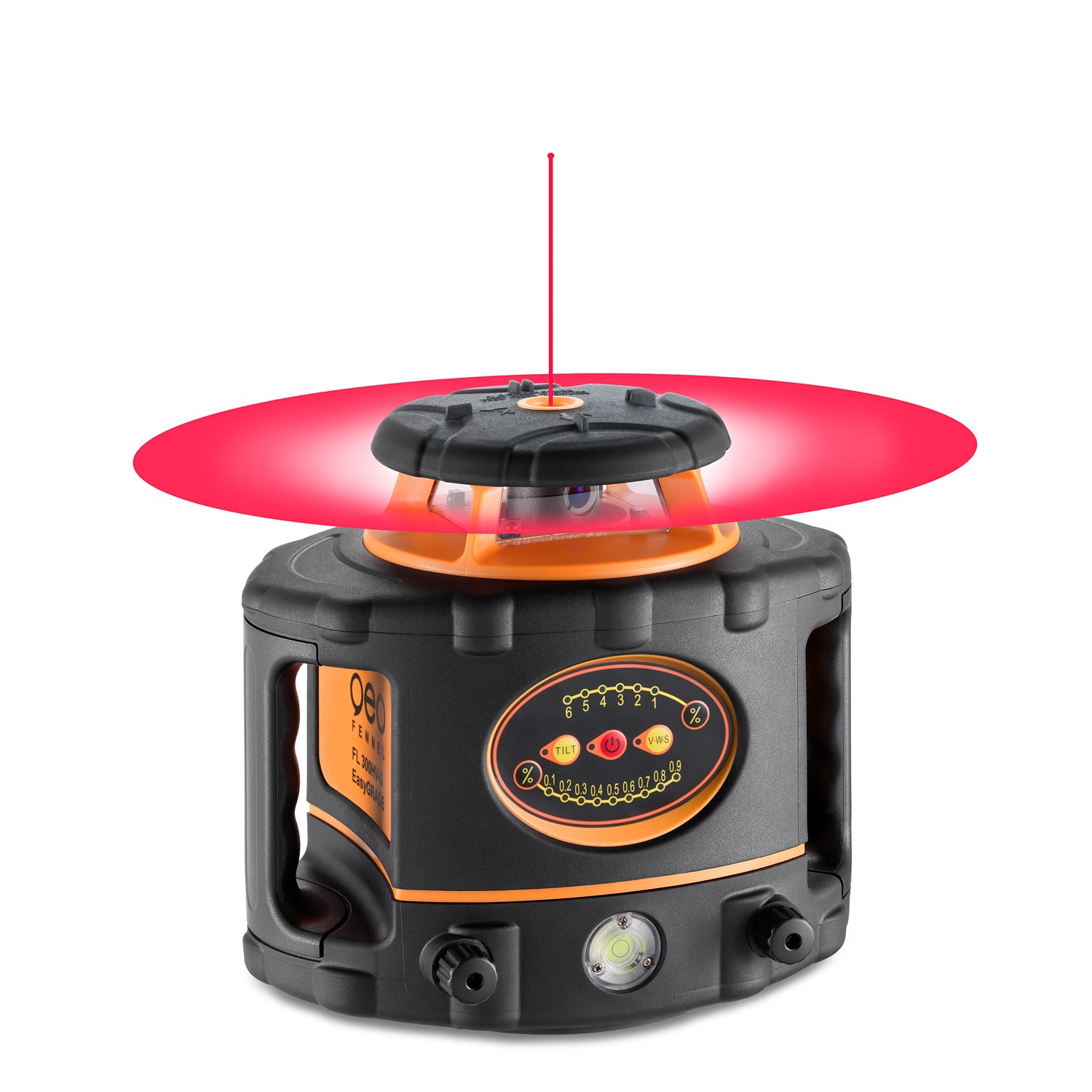

Permanent 90° beam to zenith
Automatic TILT function
VWS function (Vibration-Wind-Security)
IR Remote control with 100m range
Integrated floor mount
Li-Ion rechargeable battery pack and intelligent charger
Can also be used with alkaline batteries

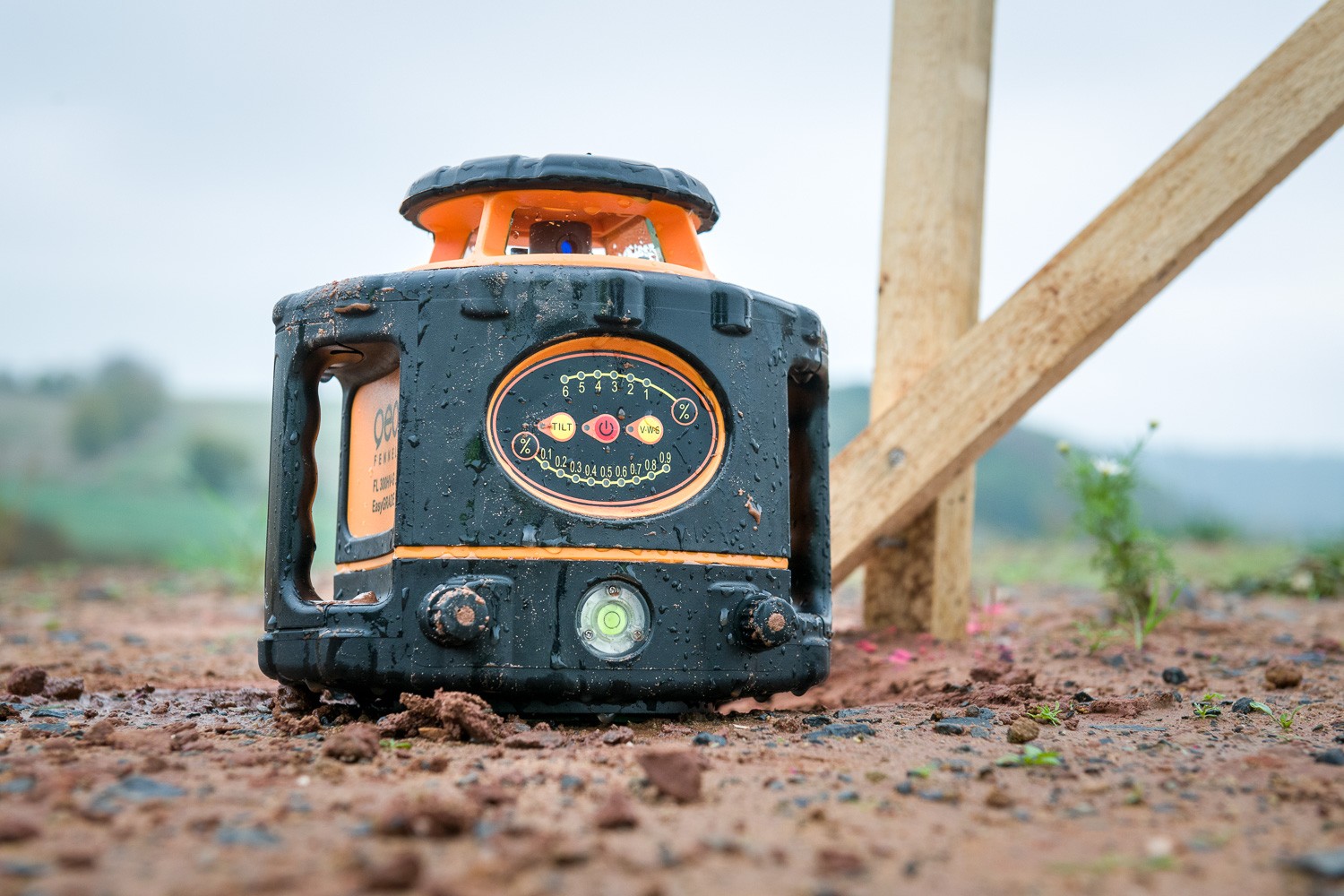

Dust / water protection IP 66

Supplied with

Receiver FR 45 with Clamp

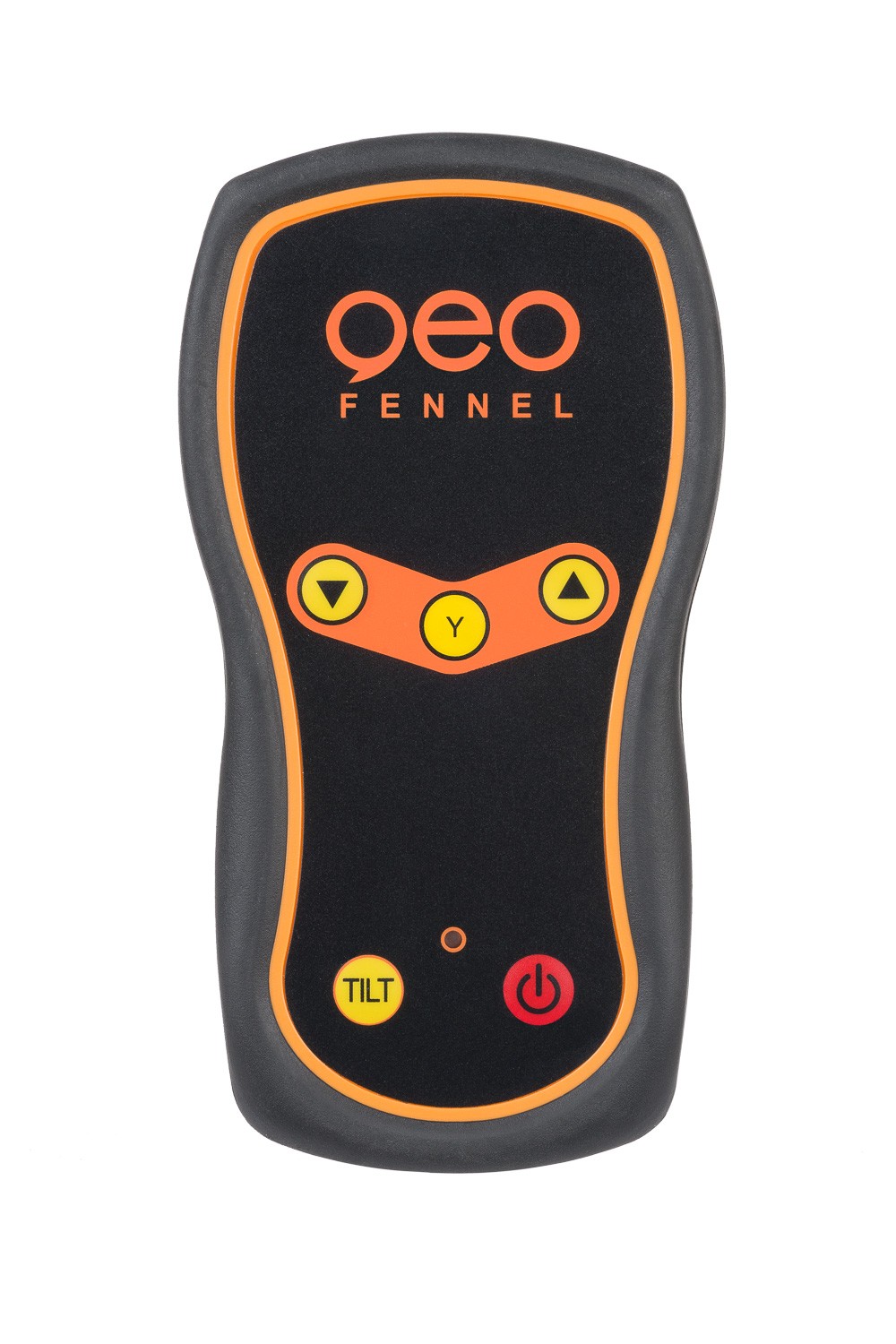

Remote Control
Re-chargeable Battery Pack (Li-ion)
Intelligent battery charger
Battery Case for alkaline batteries
Carrying Case

Downloads

Gradient Conversion Chart

Specifications

Additional Information

Specification

Technical data

Manufacturers product code	214045
Self-levelling range	± 5°
Accuracy horizontal	± 0.75mm / 10m
Accuracy vertical	± 1,0mm / 10m
Working range with FR 45 Receiver Ø	1200m
Working range with FR-Dist 30 Ø (optional)	600m
Working range with FR 77-MM Receiver Ø (optional)	600m
Rotating speed rpm	800
Laser diode / Laser class	Red/Class 2
Horizontal - Grade setting in X Axis	+0.1 to 6.9% in 0.1% increments
Horizontal - Y Axis self levelled or manual grade setting	± 5° (± 9%)
Vertical axis direction	± 5°
Vertical second axis self levelled	Yes
Auto self-level of opposite axis	Yes
Temperature range	-20°C to +50°C
Weight (instrument with batteries)	2.6 kg
Dust / water protection	IP 66
Power supply	3.7 V Rechargeable Lithium Battery
alternatively	3 x 1.5 V C Alkaline Batteries
Operating time Li-Ion battery	40h
*depending on room illumination

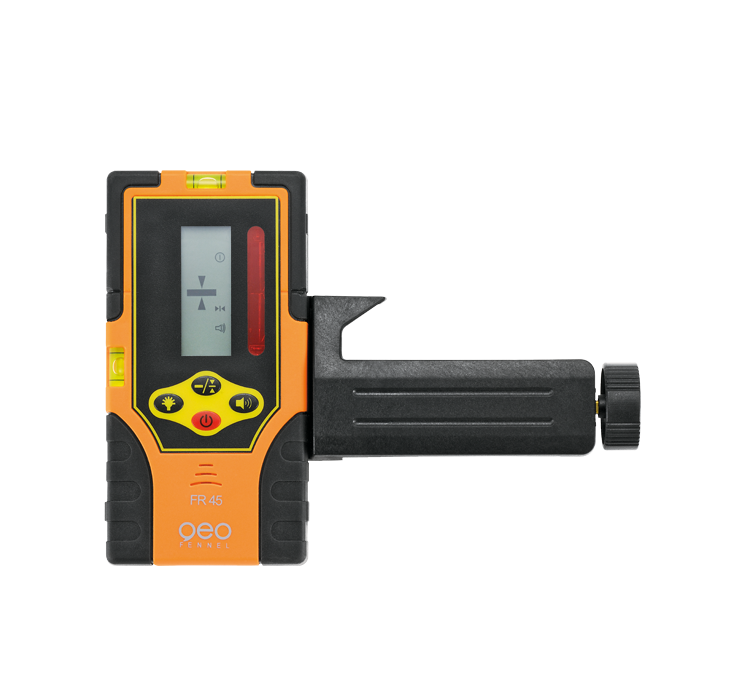

Technical data - FR 45 Receiver

Display	2 x LCD
3-step accuracy	± 10 mm, 4 mm and ± 2 mm
Signal tones	3
Signal tones can be switched off	yes
Automatic shut-off	yes
Display illumination	yes
Power supply	1x 9V Alkaline Battery
Weight with Clamp	0.4 kg
Dust/water protection	IP 66
