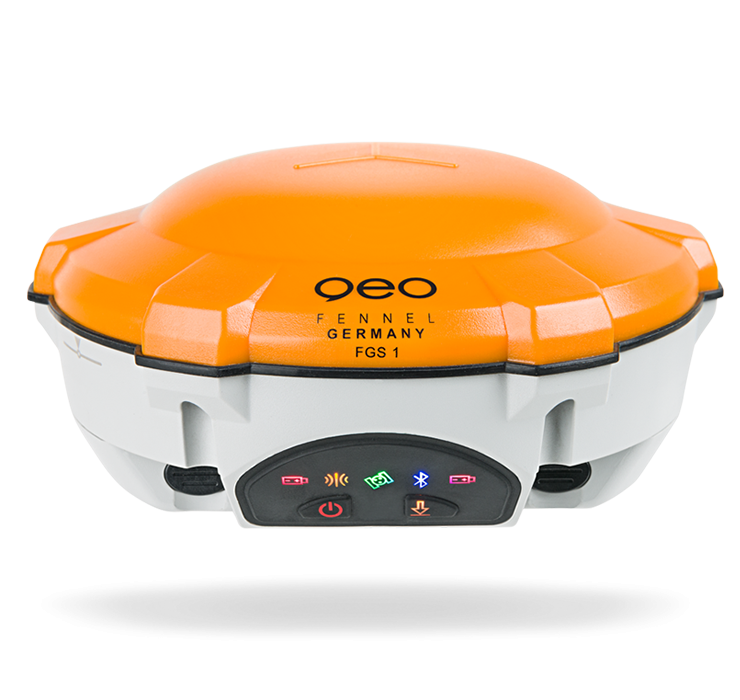

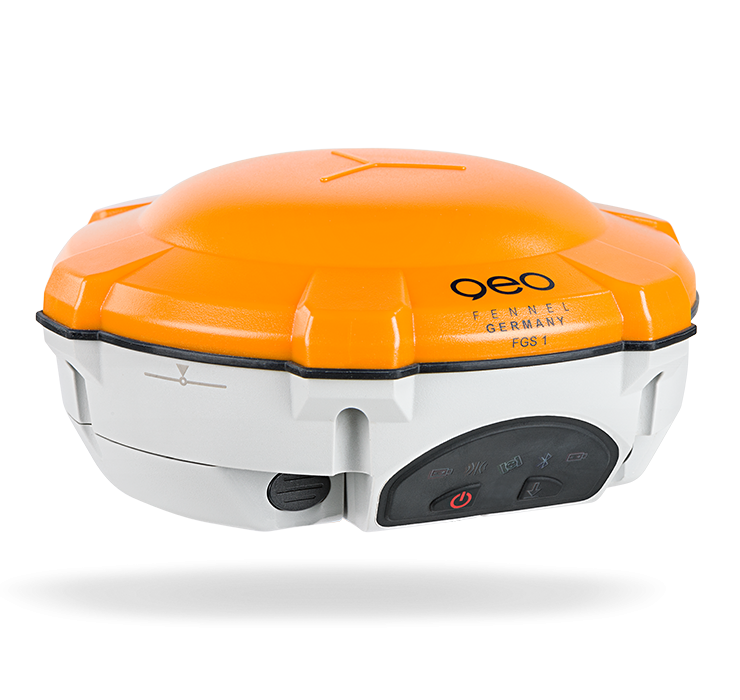

geo-FENNEL GNSS Receiver

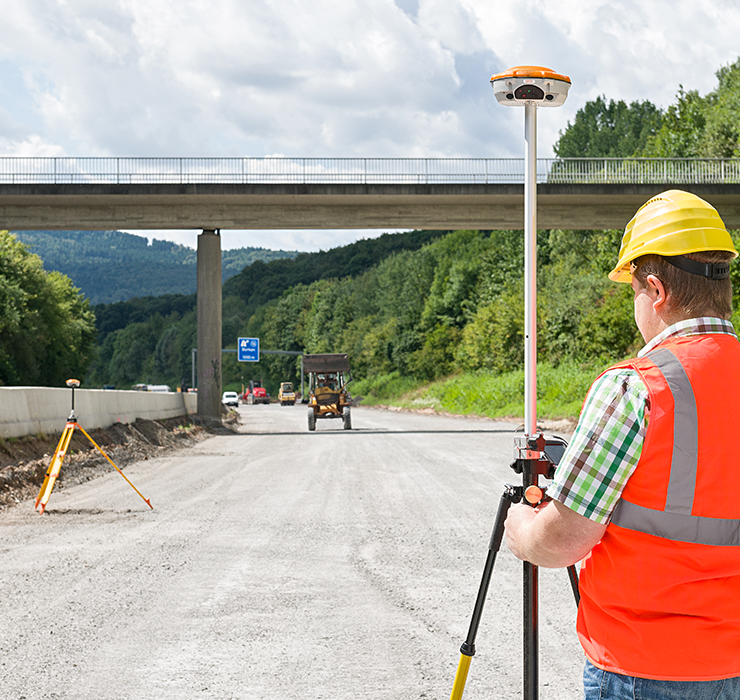

The geo-FENNEL GNSS Receiver FGS 1 is produced especially for working in challenging terrain.

It covers all available GNSS-sources such as GPS, GLONASS, GALILEO and BEIDOU or can be limited to specific sources by the user. The strong anti-interference ability of the receiver makes it possible to work in any environment. The integratedanti-jamming capability makes it possible to work under difficult conditions.

The receiver is equipped with Bluetooth an integrated radio modem (Rx, Tx) and a 4G modem

The system can be connected with other receivers and is supported by MicroSurvey FieldGenius and Carlson Surv-CE application software.

It's small compact and lightweight

Qty:

-OR-

Description

Features

High speed processing
Support for both post-processing and kinematic
Processing ability separate or to be combined with GPS, GLONASS GALILEO and BEIDOU
Support for downloads & use of precise ephemeris
Generation of various reports
User friendly

Supplied with

GPS Receiver FGS 1

1 GNSS Antenna FGS 1

Specifications

Additional Information

Specification

Technical data

Signal Tracking
Manufacturers product code	750200
256 channels with simultaneously tracked satellite signals:
- GPS	L1, L2, L2C, L5
- GLONASS	L1/L2
- BEIDOU	E1, E5a, E5b
- GALILEO	Yes, but not activated
- SBAS	WAAS, EGNOS, MSAS, GAGAN

Performance Specifications
Cold start	<50s
Warm start	<30s
Initialisation time typically	<10s
Initialisation reliability typically	>99,9%
Signal reacquisition	<1.5s

Positioning Specifications
Post processing static
- horizontal	2.5 mm + 0,5 ppm RMS
- vertical	5.0 mm + 0,5 ppm RMS
Real time kinematic
- horizontal	8 mm + 0.5 ppm RMS
- vertical	15 mm + 0.5 ppm RMS
E-RTK (<100 km)
- horizontal	0.20 m + 1 ppm RMS
- vertical	0.40 m + 1 ppm RMS
Code differential GNSS positioning
- horizontal	0.25 m + 1 ppm RMS
- vertical	0.50 m + 1 ppm RMS
SBAS typically	<1 m 3D RMS
Stand-Alone	<1.5 m RMS

Communication
1 Serial port (7 Pin Lemo), Baud rates up to 921 600 bps
- Radio modem (optional)	Tx/Rx with full frequency range from 410 – 4702 MHz
- Transmit power	0.5 – 2W adjustable
- Positioning update rate	1 Hz, 2 Hz, 5 Hz, 10 Hz, 20Hz

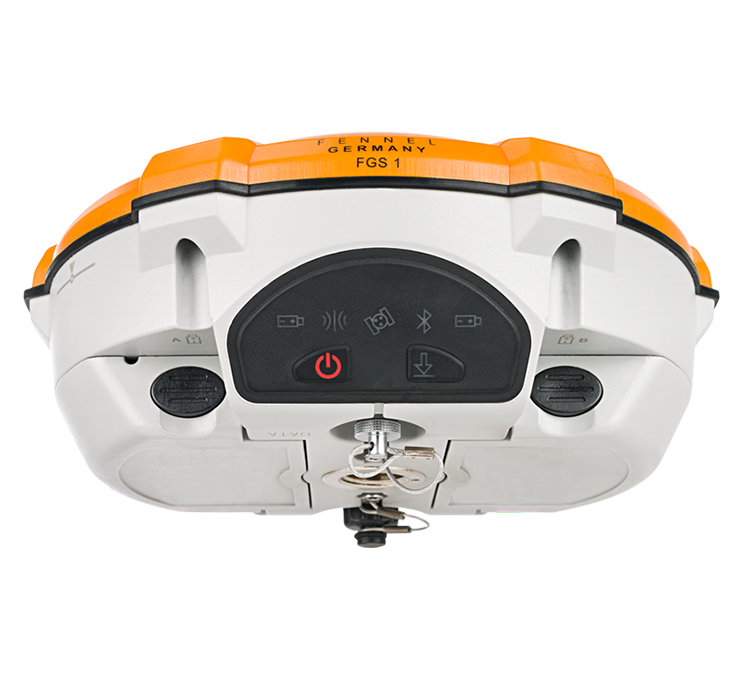

- 5 LED Indicating lights	Power, satellite tracking, differential data and data recording

Bluetooth®; V 4.0 protocol, work compatible with Windows 7®, Windows mobile® and Android®

Data Format
Data inputs / outputs
- Correction data I/O	RTCM 2.x, 3.x, CMR & CMR+ (GPS only)
Position data outputs
- ASCII	NMEA-0183 GSV, RMC, HDT, VHD, GGA, GSA, ZDA, VTG, GST, PJK, PTNL, AVR, GGK
