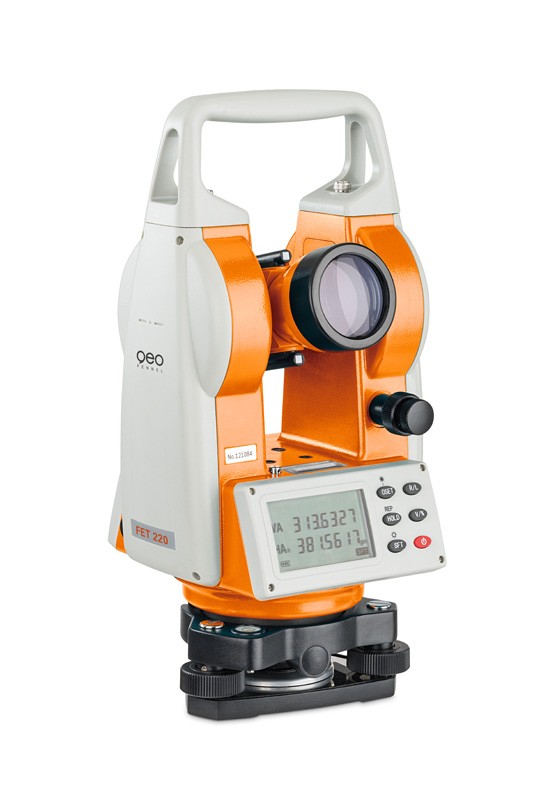

FET 220 Electronic Theodolite

More Views

Excl. Tax: £1,039.00 Incl. Tax: £1,246.80

Availability: In stock

Easy to set-up and easy to use Digital Electronic Theodolite for construction

For measuring horizontal and vertical angles.

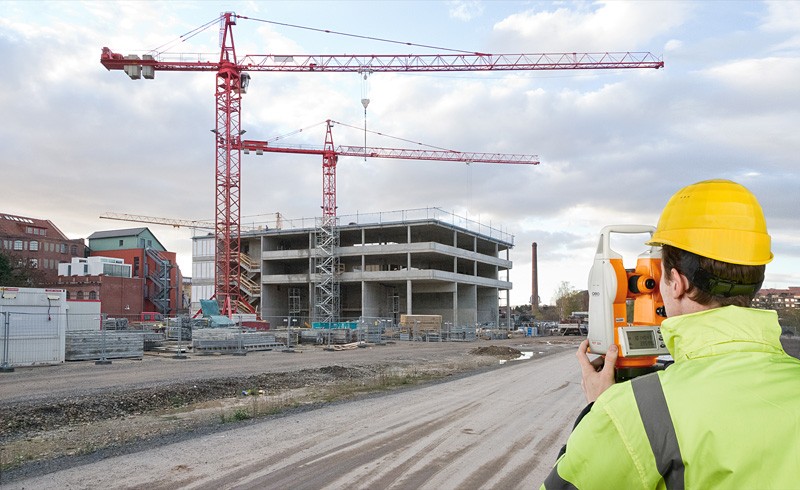

Used in civil engineering for alignment and setting-out of formwork

Large easy-to-read LCD Display

Laser plummet for easy and precise set-up over a ground point

FS 23 Aluminium Tripod

Excl. Tax: £1,039.00 Incl. Tax: £1,246.80

Qty:

-OR-

Description

Features

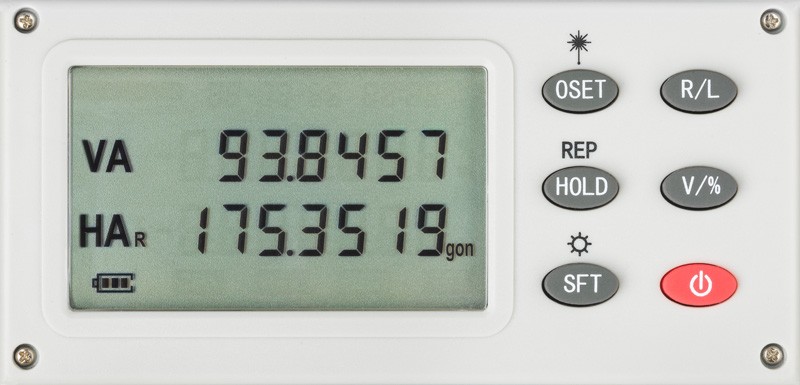

Large easy-to-read LCD
Laser plummet for easy set up over the ground point
Illumination of LCD and field of view
Horizontal circle: Hold-Function, 0-set at any desired position, clockwise/anti-clockwise reading
Vertical circle: reading in gon / degrees / percent

Supplied with

Specifications

Specification

Manufacturers product code	313000
Magnification	30x
Clear objective diameter	45 mm
Shortest focussing distance	1,5 m
Angle measurement	absolute encoder
Accuracy	20“ (6 mgon)
Minimum reading	10“ (3 mgon)
Measuring units	400 gon / 360°
Laser plummet: spot size	Ø 2 mm at 1,5 m
Laser plummet: laser class	2
Operating time / power supply	18 h / NiMH
Temperature range	-20°C to +50°C
Dust / water protection	IP 54
Weight (instrument with batteries)	4,3 kg
